Huixian Xinda Textile machinery accessories provide all kinds of shuttle textile machine accessories. J6 loom lifting rod is mainly used in 1511 shuttle loom with narrow door width. The material is HT15-33, the total length is 30cm, the width is 6.5cm, the lifting rod is J6 minutes, the height of the intermediate shaft hole is 35mm, the straight diameter is 16mm, the pillar diameter is 11mm, the textile lifting rod is connected with the J17 rotary rod.

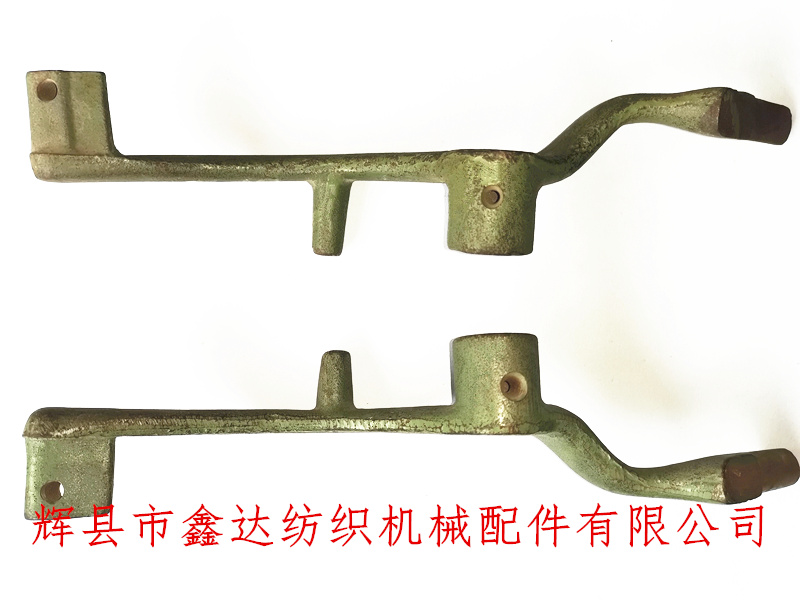

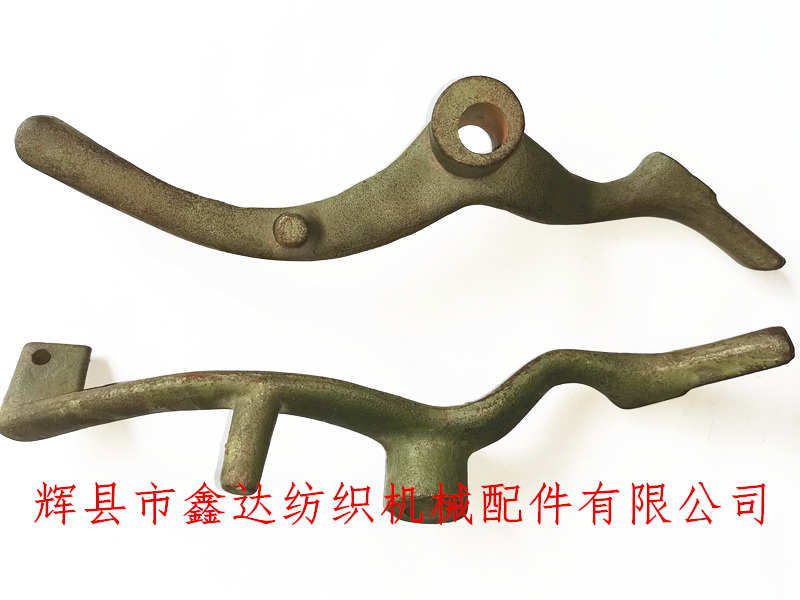

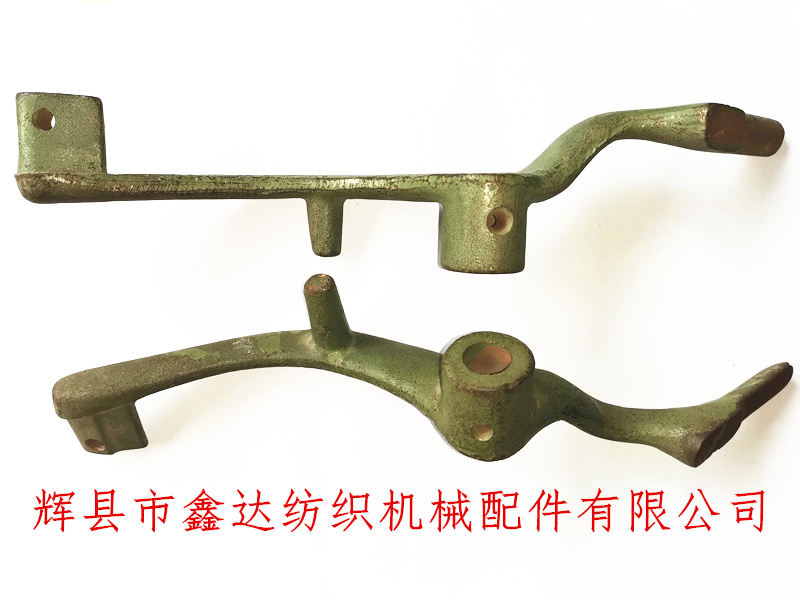

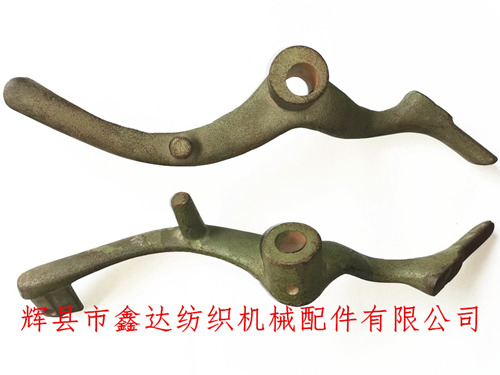

The picture above is a group of pictures of J6 lifting rod. The top one is the right hand, and the lower one is the left hand. There is an oil hole at the shaft hole for oiling, and there is an 8-point screw hole on the left side for fixing.
The center distance between the oil hole and the screw hole is 146 mm, and the weight of a single lifting rod J6 is 0.75 kg. J5 sensing rod, J7 weft fork spindle supporting foot, J8 sliding hoop, J9 probe support, J10 separation lifting rod, j11 probe foot, j16 control rod, J18 weft fork support seat, J1 weft fork hook bar and J6 lifting rod constitute the guiding device of the loom.
If you want to buy textile machine accessories - lifter, loom accessories, loom J6 and other products, please contact Mr. Yang of our company.
