Huixian Xinda Textile machinery accessories provide 1511 wallboard cover, loom nylon bearing sleeve accessories, loom nylon sleeve model is D1 * D2, the nylon bearing sleeve is mainly used for plug type 1511 electric shuttle loom, 44 inch and 56 inch single beam loom shaft sleeve, nylon shaft sleeve material is industrial nylon, with good wear resistance, low noise, low cost, easy installation and other advantages.
There is a reserved oil groove in the inner cavity of nylon shaft sleeve D1 * D2 of shuttle loom. During installation, the holes need to be broken according to the position of the oil hole on the upper plane, which is convenient for later refueling. For the erector, the two pieces of nylon bearing bush can be easily closed. The total height of nylon bearing bush of wallboard is 93.5mm, the outer diameter is 50mm, the inner hole diameter is 38mm, the outer edge thickness is 4.6mm, and the three oil grooves in the inner cavity are interconnected.
When using copper sleeve in weaving machine, due to the high price of copper, the cost increases, and the nylon bearing bush has better protection for the dual parts. One set is used on the left and right sides of each loom, so that the crank shaft can run stably and keep good damping effect.1511 Accessories, Nylon Bearing, Bearing Sleeve.

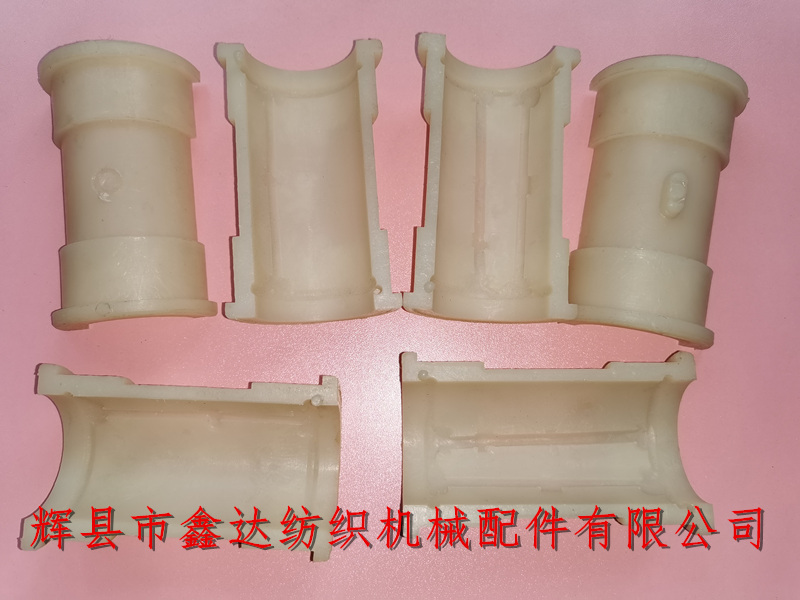

The picture above shows the disassembled nylon bearing bush of loom. The positioning hole corresponding to the positioning pin fits tightly when matching. There are woven fabric factories in each country. If you need to buy wallboard bush, 1511 accessories, nylon bearing bush, bearing bush, hand-in-hand nylon sleeve, nylon bushing of shuttle loom and other accessories, please contact Mr. Yang of our company for consultation, and we will provide services for our customers wholeheartedly!
