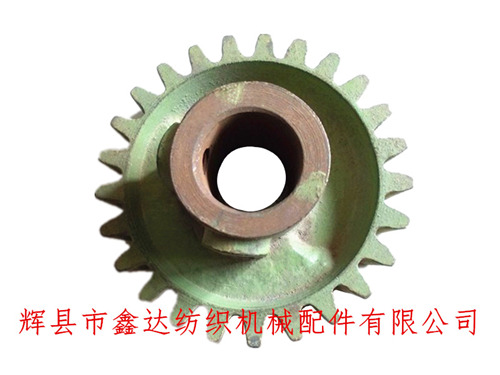

The diameter of inner hole of 1515-3429 let off gear (25 teeth) is 28mm. shuttle loom parts,Two fixing screw holes are fixed on the let off axle with M10 screws, which are used to rotate the disc of the axle. This let off accessory can also be used on GA615 loom, 1511 loom with 23 teeth of B6 let off gear, GA747 series rapier with 29 teeth of gear let off, part No. 4114, diametral pitch is 6, our company is a loom let off Through gear parts processing wholesale supplier.
Some manufacturers of the warp shaft gear will fix it with M8 screw holes, and the straight gear 3429 of the loom is connected with the warp shaft disc 4122 (diameter 550mm, 116 teeth).
Generally, the discs with a diameter of 600mm are driven by 4114 gears, the height of the loom 3429 is 54mm, and the thickness of the teeth is 25mm.
B6 (23t) used in 1511 loom has keyway, and 3429 (25t) used in 1515 loom has no keyway, which can be easily identified. 3429 to the gear manufacturer, weaving machine accessories wholesale, 1515 weaving machine processing - Huixian Xinda Textile Machinery Accessories Co., Ltd.
