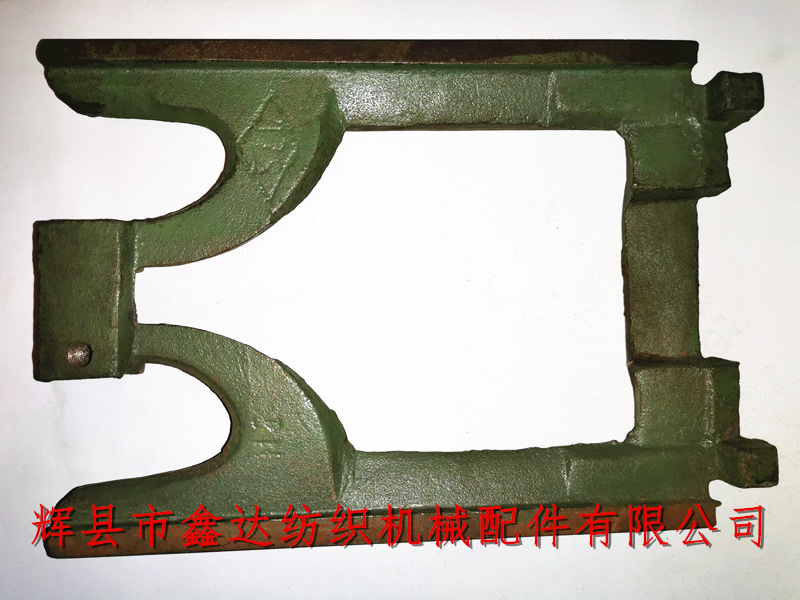

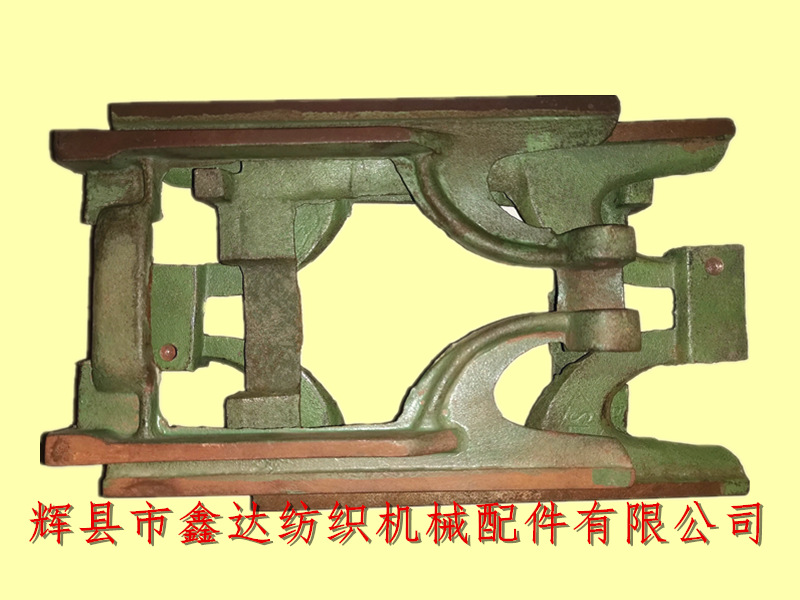

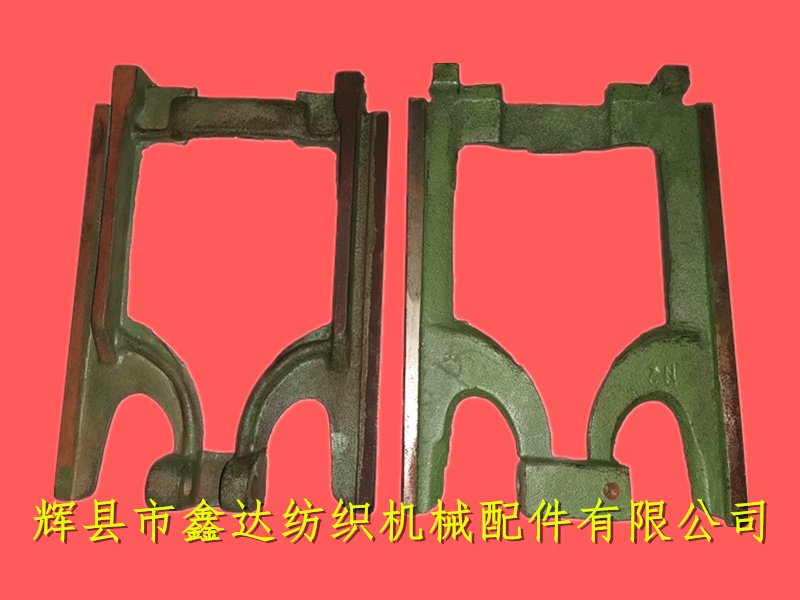

1515-N2 loom shed propulsion sliding device accessories,the shape is 20.6 cm long, 15.2CM wide,N2 Loom Push Slider Parts, it is automatic shuttle loom shed propeller, material is 32 gray iron, is the loom automatic shuttle key components, and 3701 propeller guide foot connection use, textile machine sliding device accessories, the old loom propeller components, N2 in the propeller pin 3701 in the slot when sliding without resistance.
The N2 pusher slider, a textile machine accessory, can be applied to the old shuttle warehouses of 1511, 1515, GA615 and other models. The upper, lower, left and right fit clearance between the guide foot 3701 and N2 is less than 0.8mm, the two ends of N2 are equal in length, the end face of the head is at right angles, and the upper surface and the end face of the head shall be smooth without sharp corner gap.
The crank shaft of the loom is in the front dead center position, and the pushing slider of the shuttle shed of 1515-n2 loom protrudes about 0-0.8mm from the front brake rail 3314 (the pulling back pushing slider does not retract into the front brake rail, and both sides extend the same length); the distance from the bottom plate of the shuttle case 3308 or K15 is 0.8-2.4mm, and the difference between the two sides is less than 0.8mm, and the end face of the N2 head is kept between 5mm and 9mm from the front wall of the shuttle in the shuttle shed.Slider,loom shed,loom accessories.
The connecting rod N4 of the propulsion slider of the accessory of 1515 textile machine is connected with the N2 propeller. The clearance of N4 controlled by the bolt of n23 connecting rod is less than 0.4mm, and the total clearance of the two accessories matching each other is less than 0.6mm.

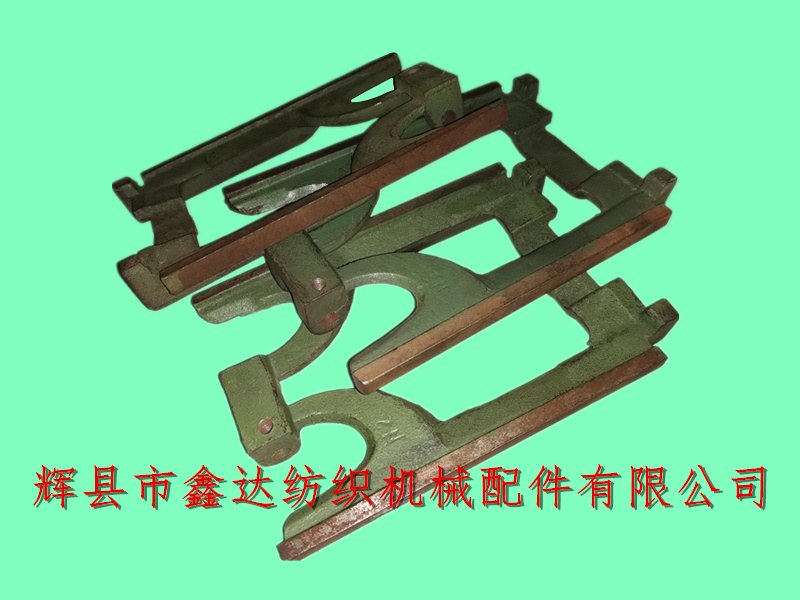

Textile sliders, loom shed and other loom accessories are tied with unpacked iron wire, 10 pieces / string, each weighing 1.1kg. If you need to purchase 1515-n2 loom shed propulsion sliders and other products, please contact our company for details!
