GA615 Shuttle Loom Parts
7214 Broken Weft Stop Fitting Textile Pin
7214 Broken Weft Stop Fitting Textile Pin time:2022-07-07 11:33:05 click:3859 keywords:textile pin,broken weft stop,7214
description:

7214 broken weft stop accessories chicken head pin is used for GA615 loom, 7214 Broken Weft Stop Fitting Textile Pin,the total length of textile pin 7214 is 32 mm, the shaft diameter is 7.8 mm, the front screw is M6, its material is A3, it is connected with 7215 strut and 7213 swing frame, our company provides modern textile machine pin accessories, old-fashioned loom weft breaking stop accessories, broken weft self stop chicken head accessories, etc.

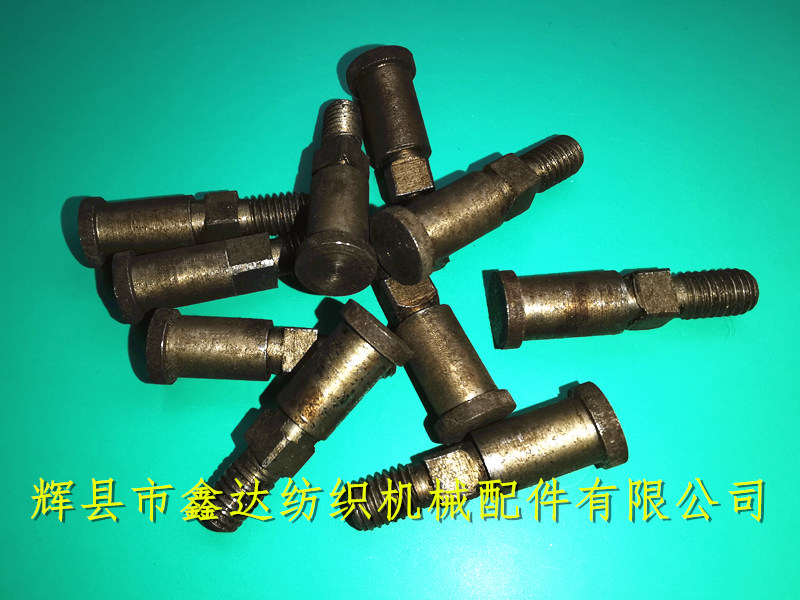

Xinda broken weft stop pin shaft accessories

The accessories of point pecking weft detecting parts of 72 series of old loom include more than 30 kinds of products, such as nose rocker arm, outer sleeve joint, saddle bar, etc. the technical requirements for point pecking weft missing self stop weaving are as follows: the vertical distance between the bottom edge of the three sleeves and the cloth surface should be controlled between 47-50 mm, and the horizontal distance between the back edge of the three sleeves and the breast beam is 80 mm. When installing the rocker arm, attention should be paid to the connecting rod and the front brake rail bolt The distance between the wire core k41 and the support foot K201 of the shuttle box cover plate shall be kept with proper clearance.

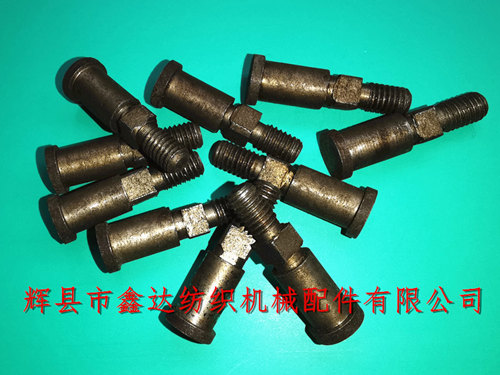

Textile machinery accessories pin

The point pecking weft stop device, also known as chicken pecking rice, is used to follow the opening rhythm of the loom to detect whether the machine is empty during operation. If there is empty filling, it will trigger the machine to stop.

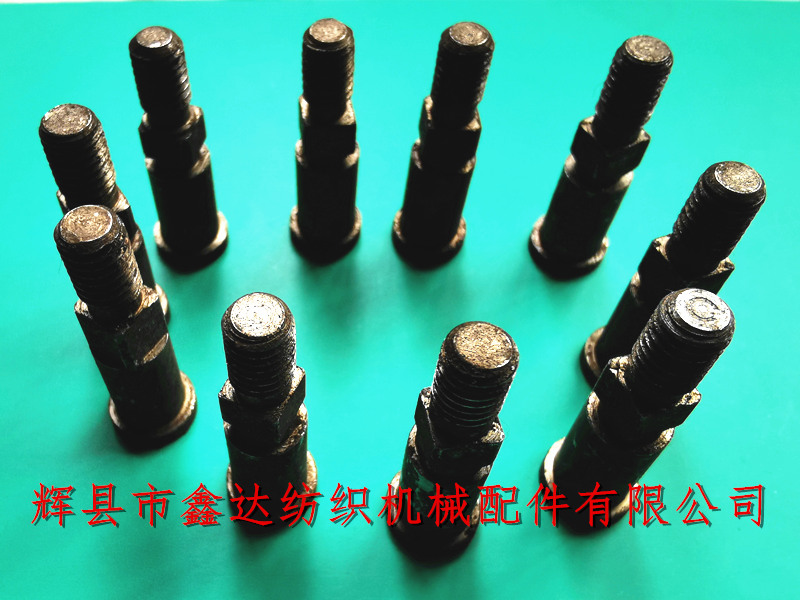

Weft free stop pin of loom

7214 weft breaking stop accessories are 50 in each package, with a minimum order of 100pcs. The diameter of the cone at the tail of the pin shaft is 1cm, the size of the square neck is 6mm * 6mm * 4mm, and the screw length is 10mm.

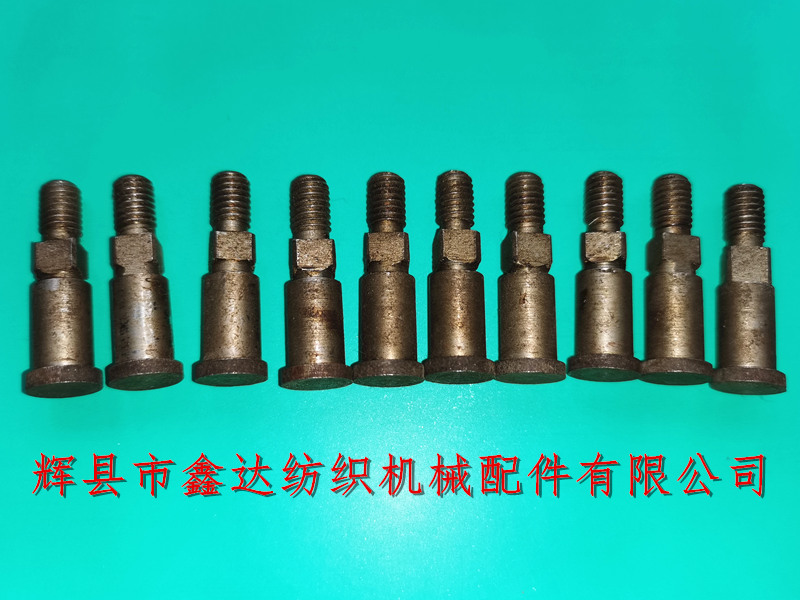

Textile pin accessories

If you want to buy Textile accessories such as broken weft stop accessories, all kinds of textile pins, weft free stop chicken head, machine head shaft, pull swing rod, sleeve seat, textile probe and other products, you can contact Xinda Textile accessories for consultation.
