GA615 Shuttle Loom Parts
F119 Side Lever Cap Of Shuttle Loom
F119 Side Lever Cap Of Shuttle Loom time:2022-07-07 11:36:09 click:4317 keywords:Side Lever Cap,F119,shuttle loom
description:

F119 loom side lever cap (double eyes) accessories refer to two holes for fixing textile side plate. F119 and F120 side plate caps constitute the left and right hands, which are respectively installed under the two sides of the old traditional loom, adjacent to the side plate hanging feet F6 and F7. The total length of the double side plate cap is 18.3cm, the width is 92mm, the inner hole diameter is 38mm, and the clearance between it and the side lever cap sleeve F1 is less than 0.4mm.

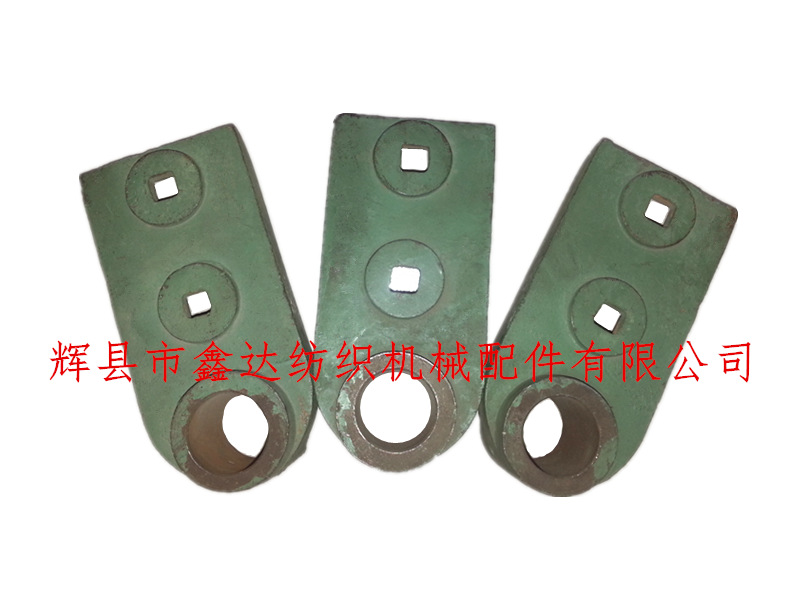

F119x120 side lever cap textile accessories

The double side plate cap used in GA615 loom can also be used in 1515 and 1511 looms, but the side plate Q12 or 3302 of double eyes is needed. The quality of side plate cap affects the adjustment of the throwing force of loom. About Adjustment: according to the process requirements, rotate the crank shaft 3209b near the lower center, so that the shuttle rotor F11 contacts the upper and higher points of the shuttle nose F4, that is, press the side plate cap to the lower low point, and measure the linear distance from the outside of the shuttle box bottom plate 3307 and 3308 to the outside of the shuttle board with a steel ruler. At this time, the shuttle plate should be at the end or starting point of moving to the inside of the machine. The results show that the corresponding time of 27 cm on the switch side and 28 cm on the change side is 22.5 cm and 23 cm respectively.

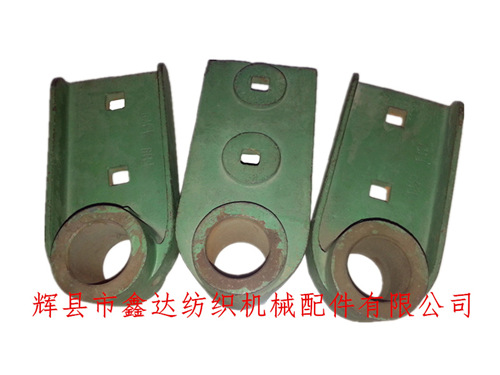

F119 loom side cap eyes

The side plate cap of loom is a kind of gray pig iron sand turning processing part. It is painted after the yuan lathe processing. Generally speaking, red is nodular iron and green is gray pig iron. The difference between them is identified by color and knocking sound.

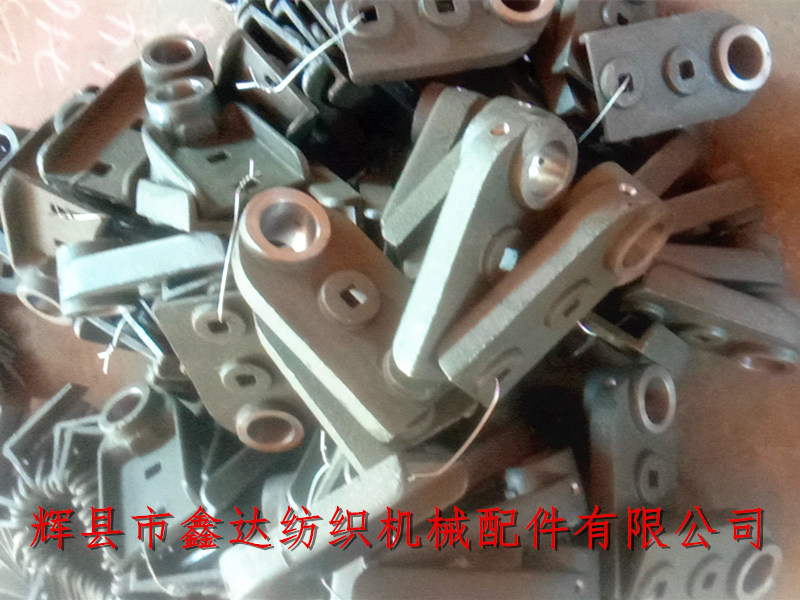

F119 double side plate cap

If you want to buy old-fashioned fabric F119, single eye side lever cap, double eye side plate foot cap, loom side plate and other products, please contact Xinda Textile accessories, welcome to visit!
