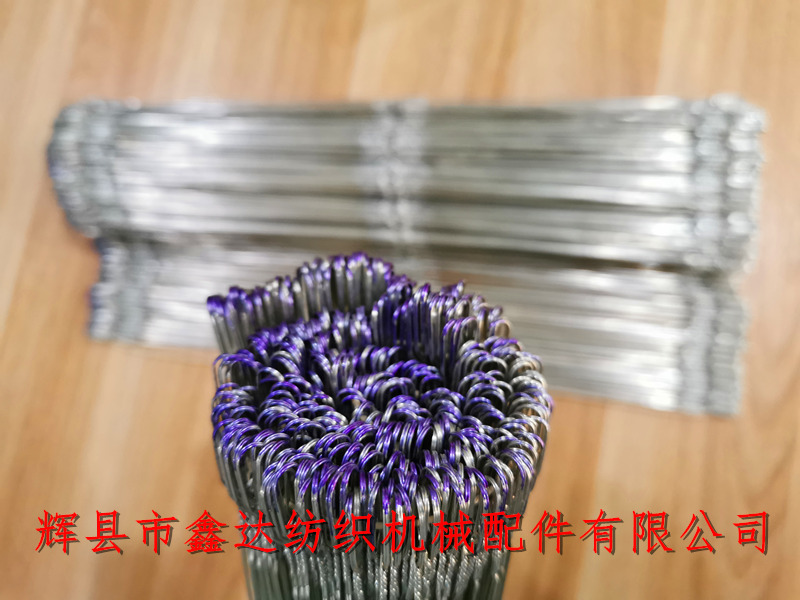

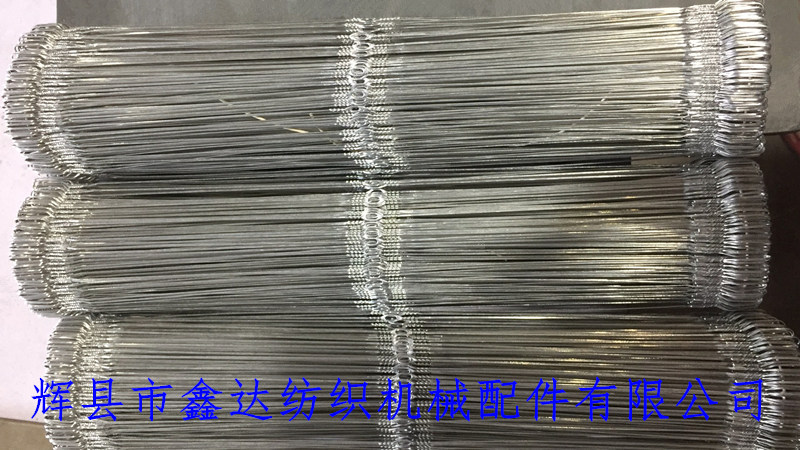

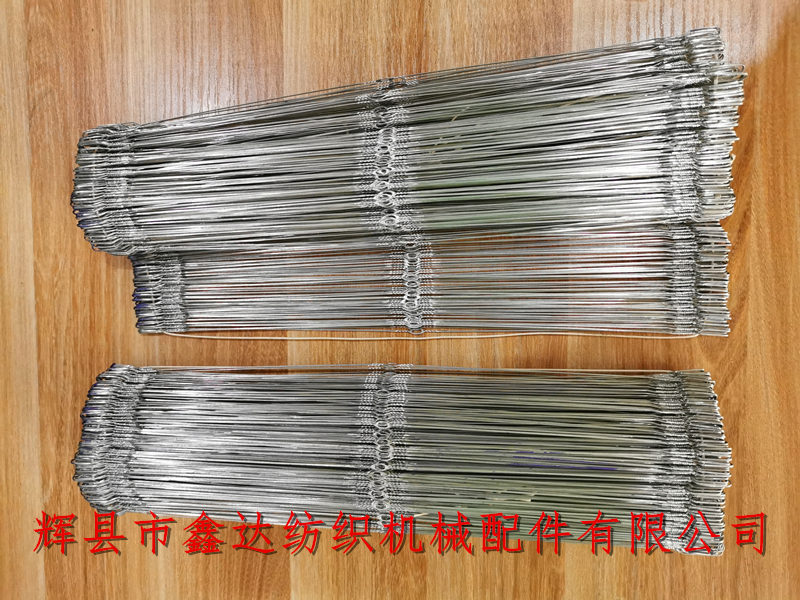

Xinda Textile machinery accessories provide 12 Steel Wire Heald With Grooved Mail-eye, a special product of textile equipment, slip wire ring is also known as alloy ring, the length of steel wire heald is 30.5cm, the thickness of single steel wire of heald is 0.45mm, the inner cavity size of brown hole: inner height is 4.7MM, inner width is 2.4mm, outer width of heald is 3.8mm, each bag is 500 pieces. The inner cavity size of heald ears at both ends is 15mmx5mm.

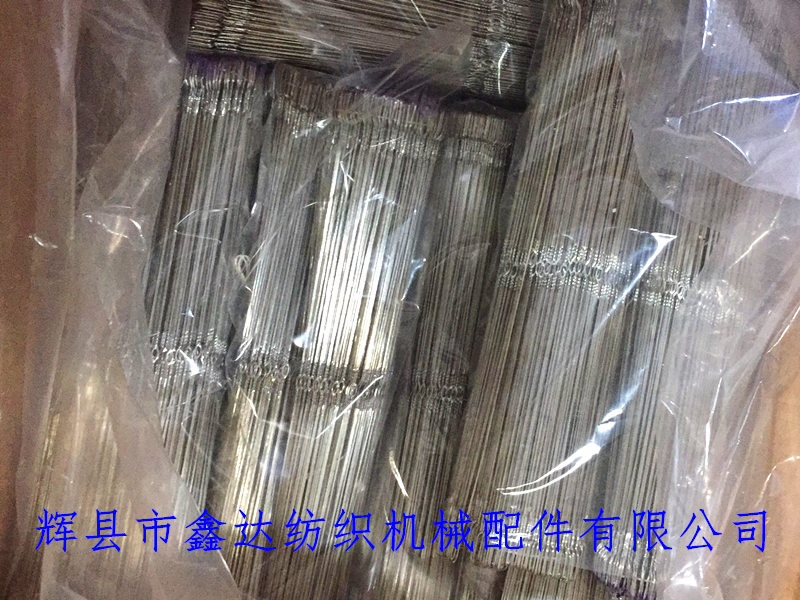

This type of heald wire, Grooved mail-eye is custom-made type, 12 inches steel heald wire is made of two stainless steel wires with diameter of 0.45mm, which are welded side by side. The angle between heald hole and heald ear is 45 degrees, 40 packages per box, that is 20000 pieces. The initial order quantity is more than 50000 pieces.

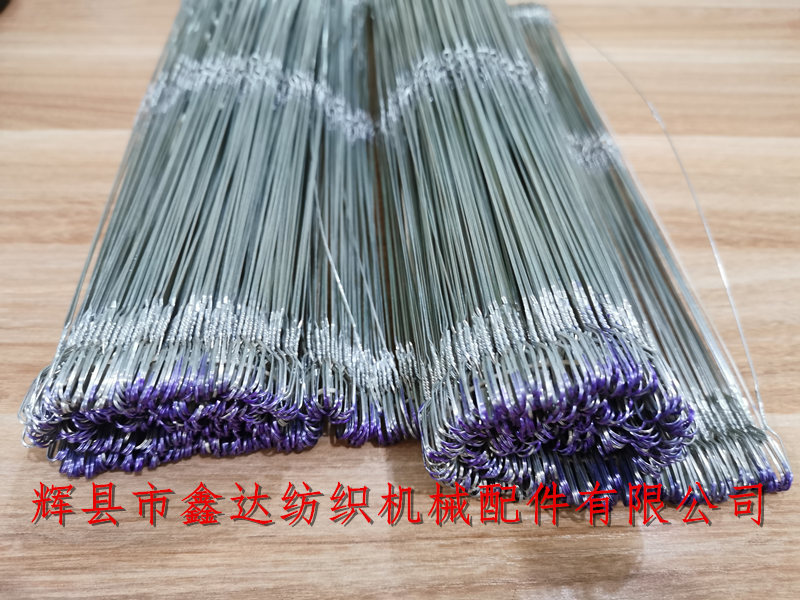

The 12 inch steel wire heald is inlaid with sliding wire (Huasi), so it is also called flanging heald with Grooved Mail-eye heald. The production process is complex, the technical requirements are high, and the surface luster is treated by acid pickling.
Use of heald wire: it is fixed on the heald frame by the heald flat iron, so that the upper and lower layers of warp yarn can be lifted, thus forming the weaving shed, and the upper and lower parts of the heald frame are staggered.Wire Heald, Grooved mail-eye,Steel Wire Heald.
The steel wire harness with sliding wire has the characteristics of no clamping, strong wear resistance, large bearing capacity and small friction resistance.
Please understand the detailed size, customized conditions and manufacturer's production technology of 12 inch (with slip wire ring) heald wire through our company's business personnel. Wire Heald, Grooved mail-eye,Steel Wire Heald,Our products are exported to many regions in Southeast Asia. Our survival is based on excellent product quality and good after-sales service. Welcome to our customers for win-win cooperation!
