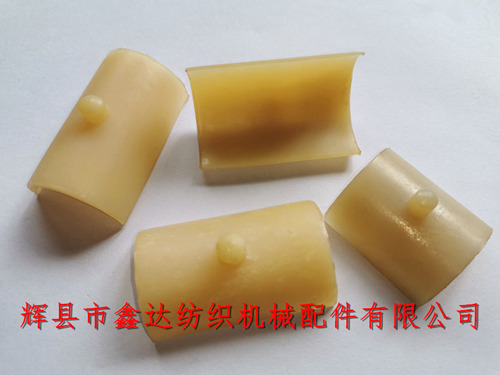

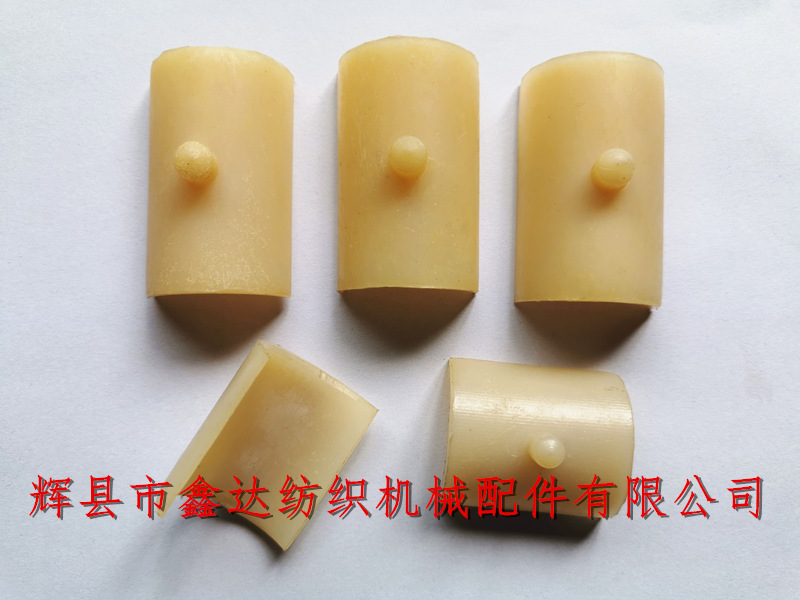

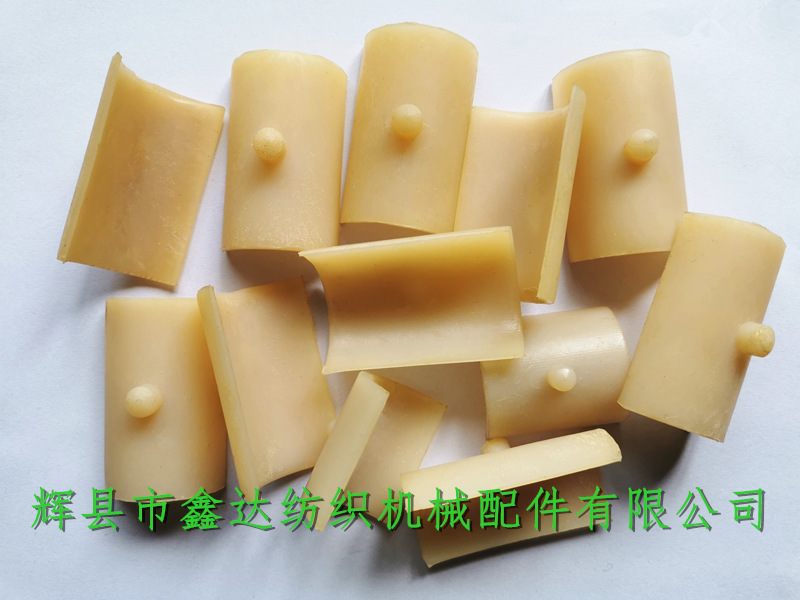

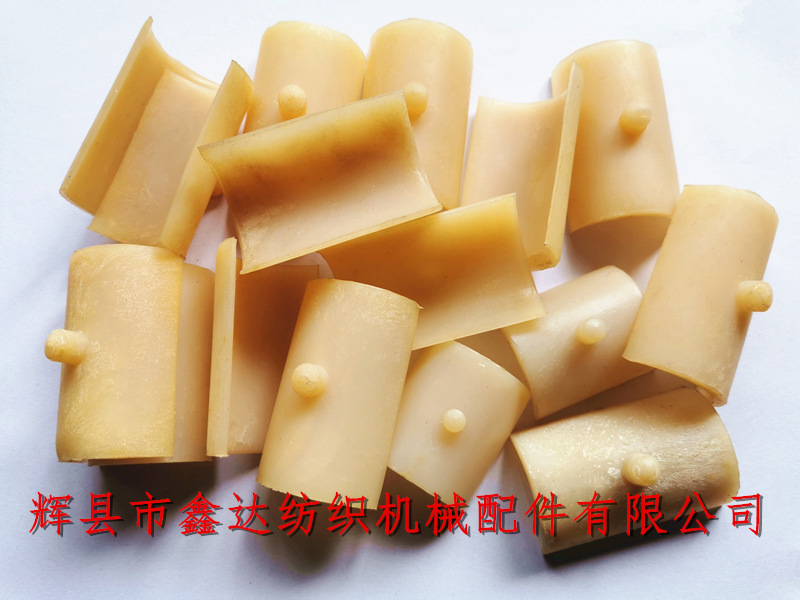

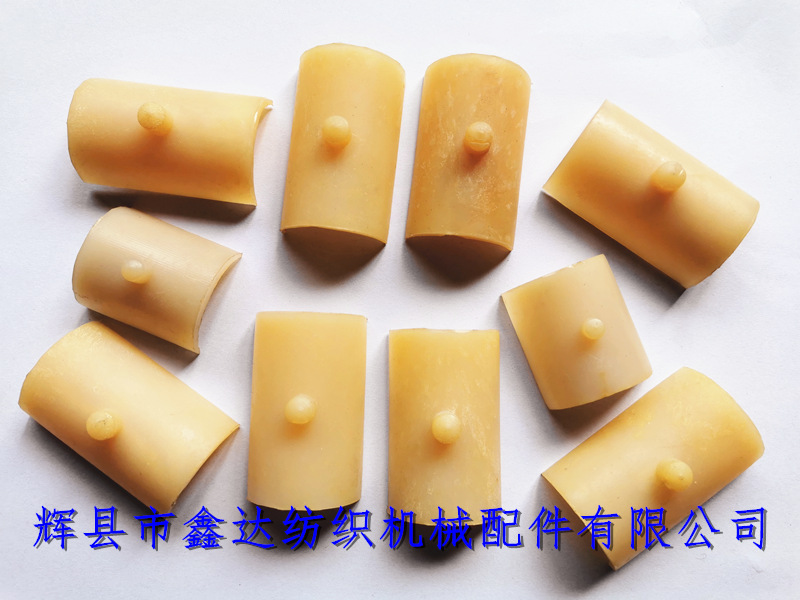

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides textile nylon parts,nylon part,loom nylon part, nylon 3442 and 3443 of 75 inch shuttle loom models 1511, 1515, ga611, GA615, etc., which are installed on the back link hanging feet (hereinafter referred to as the back wall panel) 3401 and 3402 of the shuttle loom. The product name of the nylon part 3442 of the loom is the semicircular axle liner, the shape length is 5.6CM, the semicircle diameter is 34mm, and the material is nylon 1010.
The 1515 type woven machine is connected with the rear wall panel joint 3400-5 and 3400-6, and the GA615 75 inch old woven machine is connected with the accessories 4100-5 and 4100-6. The diameter of the chuck of 3442 semicircular shaft liner is 8.3mm.
The length of 3443 semicircular bush of nylon part of 1515 loom is 40mm, the diameter of semicircle is 34mm, and the diameter of chuck is 6.35mm. It is installed on 3404 tension hammer bar.
GA615 loom is improved on the basis of 1515 and ga611. Many accessories of 56 inch and 75 inch shuttle loom can be borrowed from each other, so the nylon parts 3442 and 3443 of loom can be used on these three kinds of machines.
Modern textile machines, weaving machines use a lot of 1010 nylon parts, they are textile nylon equipment, loom nylon parts, if you need to purchase textile nylon parts,nylon part,loom nylon part,1511 shuttle weaving machine, 1515 nylon parts, 75 loom nylon parts, you can contact our company for consultation and cooperation!
