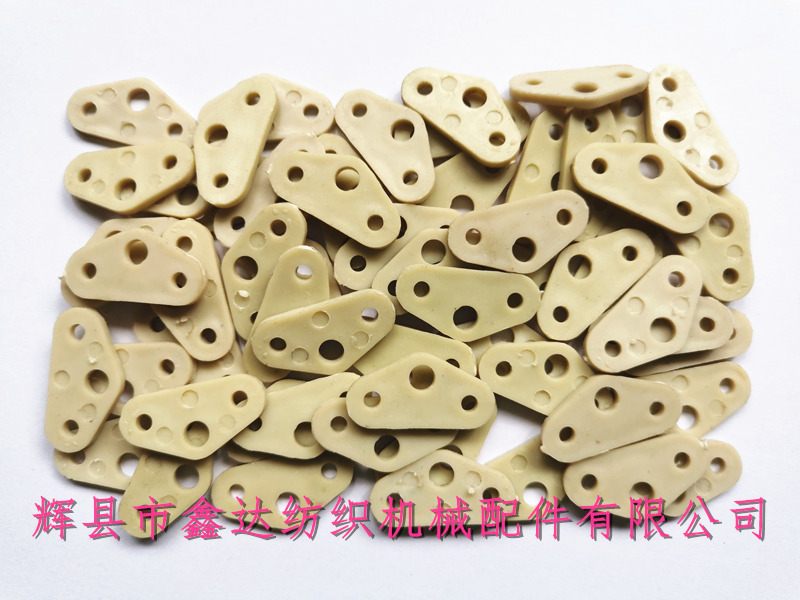

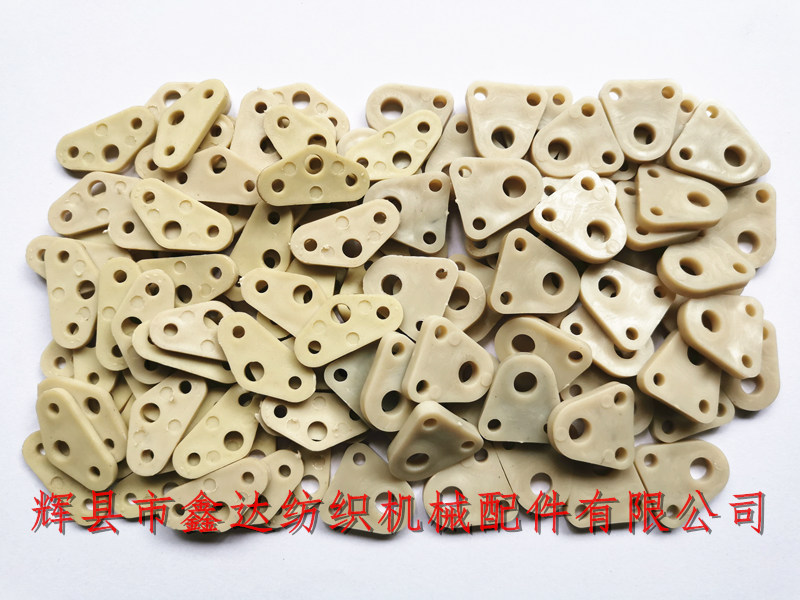

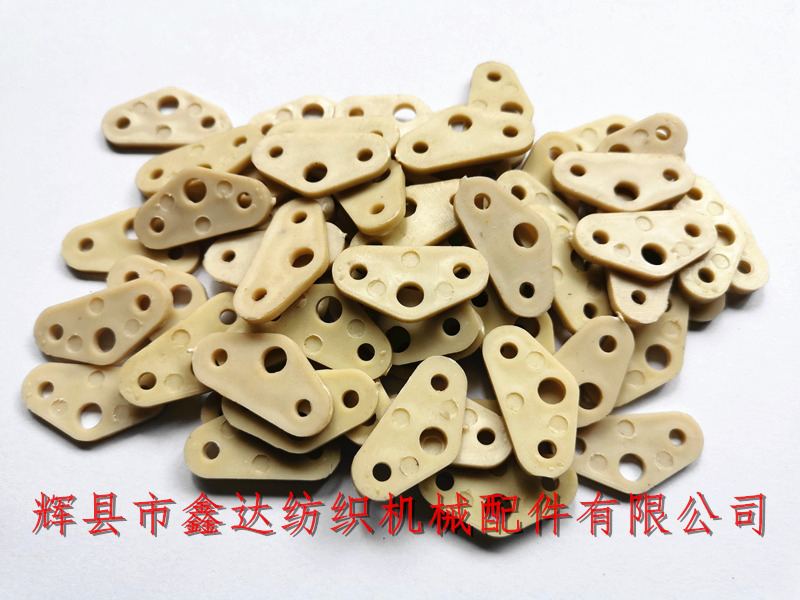

Huixian Xinda Textile Machinery Accessories Co., Ltd. is specialized in providing shuttle textile nylon 4600-1 buffer spring. The product is an external let off part, which is connected with SJ28 buffer foot and SJ-25 buffer spring. The length of nylon tension spring is 33.5mm, the width is 17mm, the thickness is 2.7mm, the diameter of large hole is 6mm, and the diameter of two small holes is 4mm. Each loom uses one (material Nylon 1010).
The let off device can be used in 1511, 1515, GA611 shuttle looms and GA74 rapier looms. Most of their accessories are universal (can be borrowed from each other).
Packing: self sealed bag, 200 pieces in each package, color: beige. The let off device of GA615 loom is installed outside the wallboard (4301B). Because the let off side shaft of ratchet wheel is fixed in horizontal direction, it is called horizontal.
1511 textile nylon parts, 1515 buffer spring leaf, machine outside send through spring are widely used, product quality is stable!
Main features: the let off is installed outside the wallboard, which is convenient for installation and maintenance, stable let off tension and transmission, and easy adjustment of let off amount.

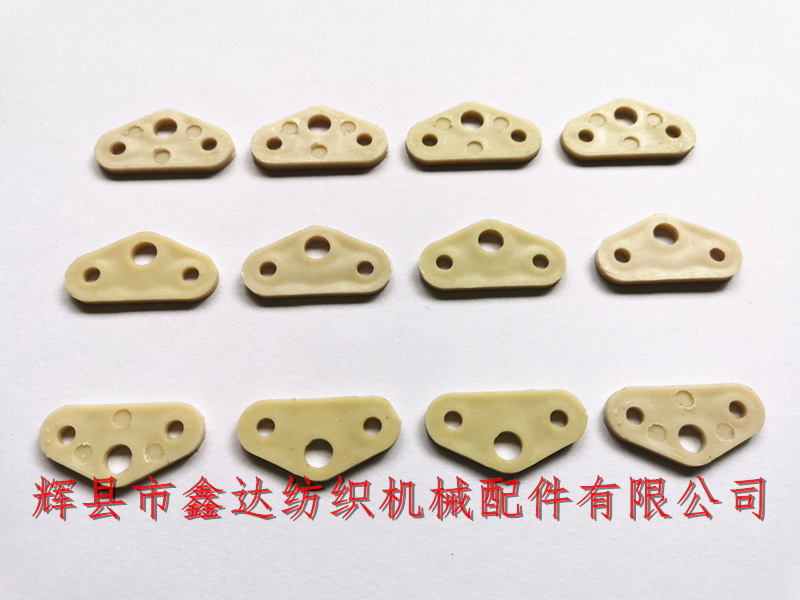

The picture above shows the comparison of the same kind of let off buffer spring. The left side is 4600-1 triangle, and the right side is sj-77. Please pay attention to distinguish carefully when installing and using. If you need to buy or customize textile nylon parts, tension spring, buffer spring and other products, please contact our company! Welcome to guide!
