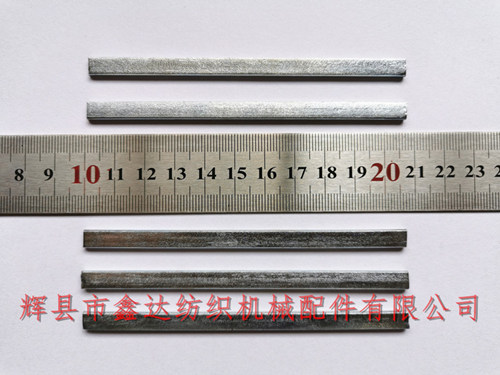

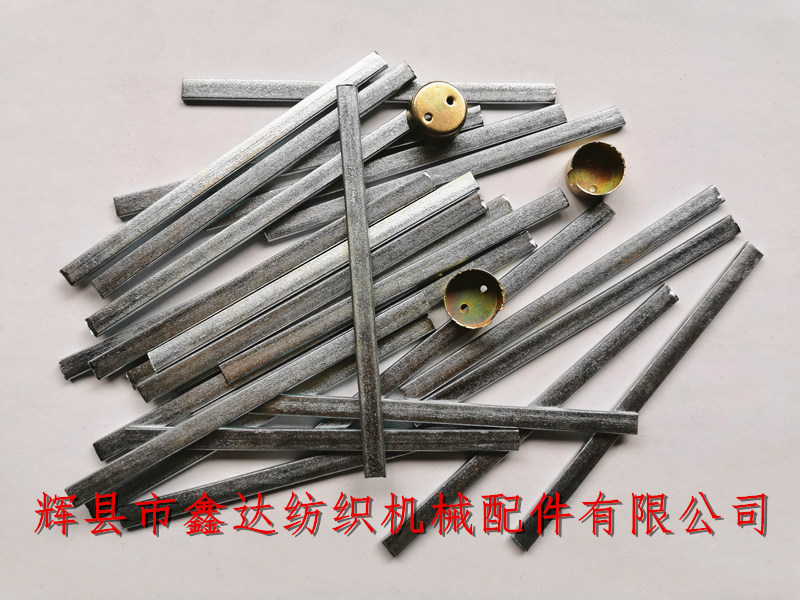

Xinda Textile Machinery Accessories Co., Ltd. provides various types and specifications of weaving and reed bar and reed cap parts all the year round. The weaving bar is a galvanized A3 cold drawn flat iron, 10.65cm in length, 6mm in width and 2.5mm in thickness. The two sides of the reed bar of weaving machine are arc-shaped edges. The cold drawing process is naturally formed with silver color. The reed cap of weaving is extruded and formed by a punch, and the side has 3.5mm wide slot, which can cover the stop strip.

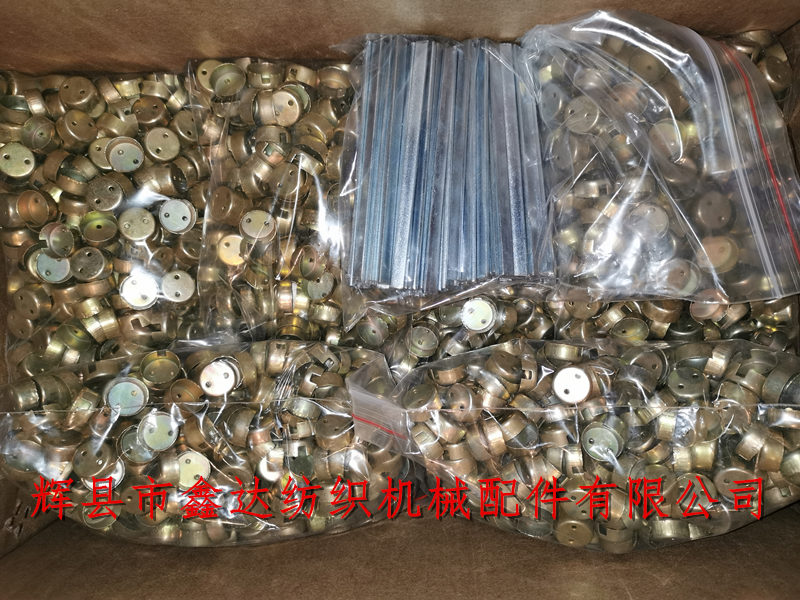

Reed accessories for weaving machine - reed hat is divided into three types: large, medium and small, which belong to textile hardware accessories. Generally, medium is commonly used in weaving steel buckle, with an outer diameter of about 15-16mm, 500 pieces in each package, self sealing bag packaging, and the weight of 500 pieces is about 0.8kg.Loom reed,reed bar,reed cap.

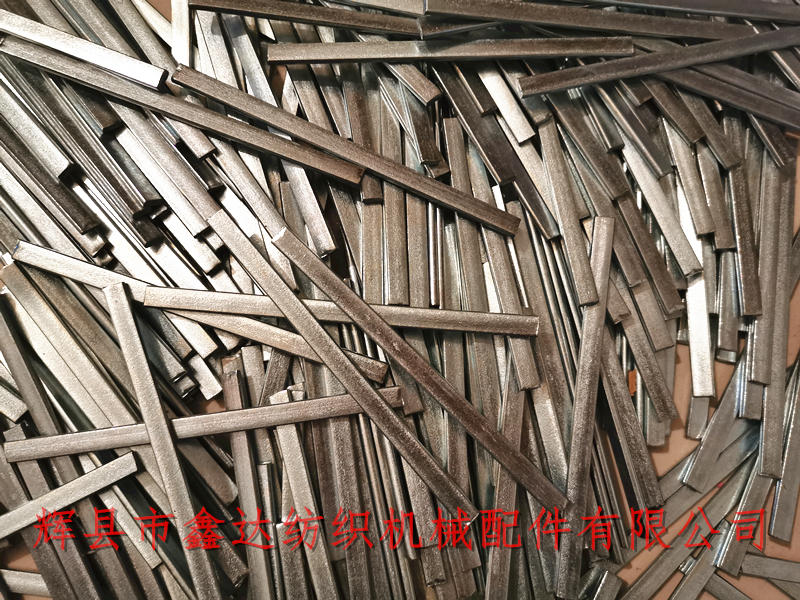

The package of reed bars for weaving machine is 200 pieces / bag, with a weight of about 2.2kg. The width and thickness of special reed (used for weaving wire mesh and heavy screen mesh) is larger than that of cotton, so the wider bars are needed.
The reed cap used in weaving machine reed is related to the weaving variety, the length of bar is related to the reed width, and the width of common weaving reed is generally between 11cm-13cm.
The reed used in the hand-made wood loom is usually 12cm, with 2 bars and 4 BUCKLE caps for each buckle. Some ethnic minorities (such as Tujia, Hani, Yi and Miao) use 13 cm wide steel buttons for weaving clothing. Each steel button uses 2 retaining bars. Some users do not use steel caps.
