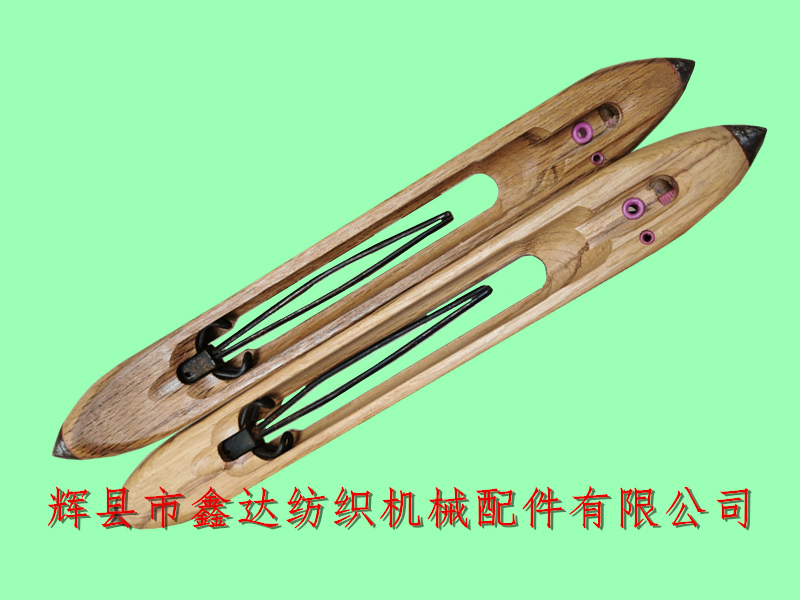

Huixian Xinda Textile Machinery Parts Co., Ltd. provides Handmade Harp Clamp Shuttle Customized,310 handmade shuttles with multiple porcelain eyelets. The shuttles are made of Qinggang wood, and the overall length of the multi porcelain eyelet handmade shuttles produced by the shuttles manufacturer is 310mm. The outer width of the shuttles is 35mm, and the height is 25mm. The export type of small wooden shuttles with multiple porcelain eyelets are mainly used for hand weaving in Indonesia. The selection of Qinggang wood materials has advantages such as good hardness, good wear resistance, light weight, and easy operation. The two ends of the handmade wooden weaving machine shuttle are equipped with shuttle tips, which are impacted by the shuttle parts of the handmade weaving machine for movement. Handmade weaving shuttles generally do not distinguish between left and right hands.

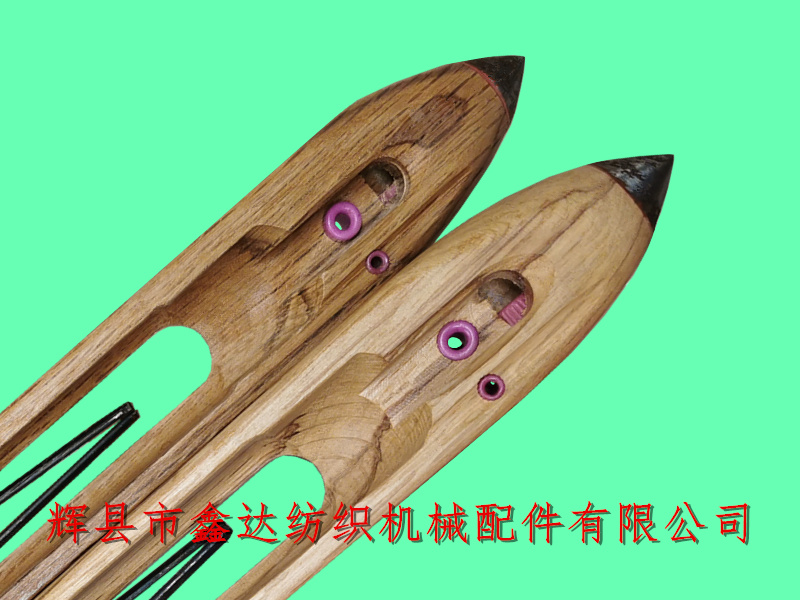

The front of the manual shuttle adopts a multi ceramic eye design, which can meet customers' different weft insertion directions and adjustments. The ceramic eye material is made of aluminum oxide ceramic, which is strong, wear-resistant, and has good surface finish. We can provide customized services for various machine made handmade shuttles, pliers shuttles, shuttles, Qinggang wooden shuttles, and other products. Shuttle manufacturers have more than 30 years of production experience and technical processes.
The clamp is mainly used to fix the large end of the textile yarn tube (weft tube), similar to the principle of the tube weft groove. The shuttle core adopts a cracked design, which can meet the tension of the weft tube with an inner diameter of 6.5mm, preventing rotation inside the shuttle cavity and causing weft breakage.

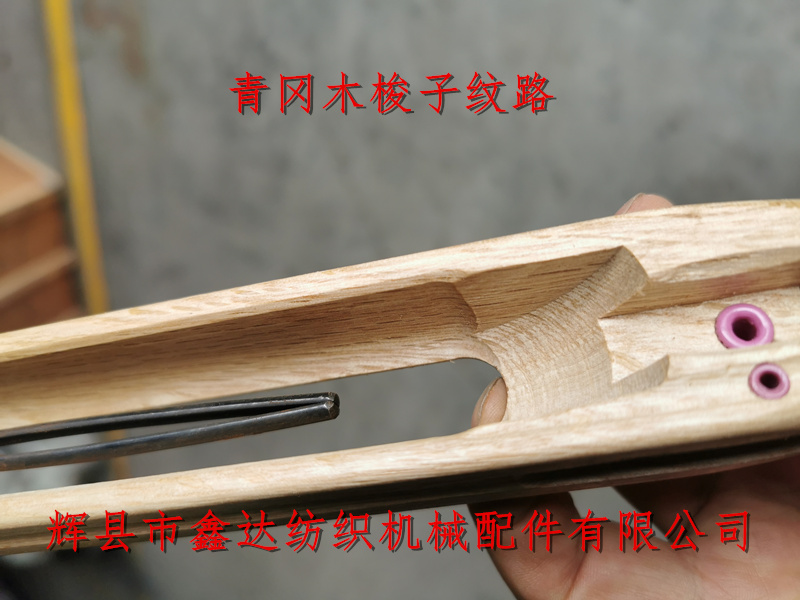

The above picture is a detailed photo of Aooka wood, which shows that it has good hardness, is easy to process, and is not easily deformed. Due to the small impact force on the shuttle during manual weaving, the four sides of the shuttle body were not wrapped with red steel paper.

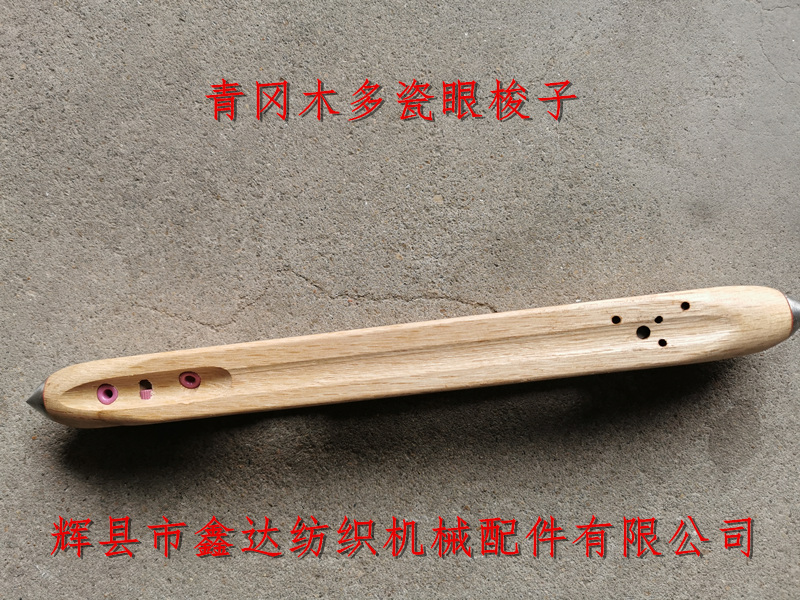

The side view of the 310 Ha Tong wooden shuttle is shown above. The distribution of multiple porcelain eyes is designed based on the characteristics of the fabric weft yarn. The minimum order quantity for wooden shuttles of the same size is 300 pieces. This is because the production and processing cycle of wooden shuttles is long (usually 35-60 days), and the shuttle manufacturer sets it to reduce production costs. If the quantity is less than 300 pieces, the product price needs to be increased (wooden shuttles are not sampled).

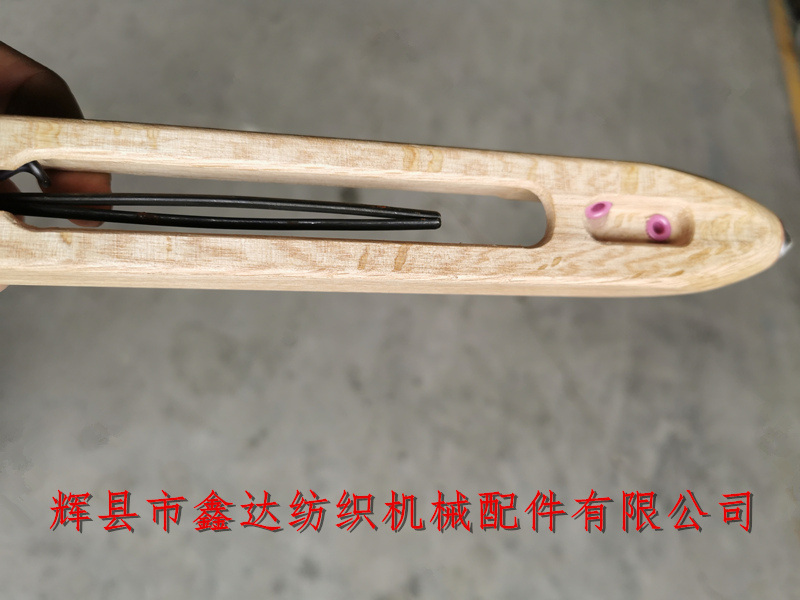

The above picture is the back view of over 310 porcelain eye pliers handmade shuttles. Packaging method: cardboard box, transportation method: logistics distribution. The wooden shuttle needs to be reserved in advance, and the wooden shuttle manufacturer will arrange the shuttle processing workshop for production. If you need to order shuttle products, please contact Mr. Yang from "Xinda Textile Accessories" for consultation!
