Our company provides a variety of old loom side support box accessories, side support box fixed, side support box climbing fixed, side support screw L70, extension rod hook screw L62, shear hammer pin L47W-1, etc., old loom Hardware Screw pig iron castings, specifications and types, please refer to the machine model.Old-fashioned looms, Loom accessories, Side brace fittings.

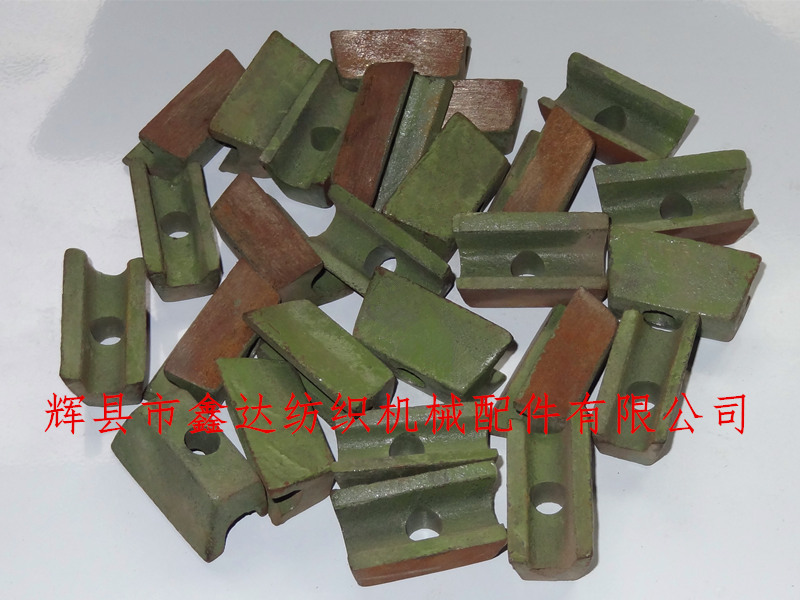

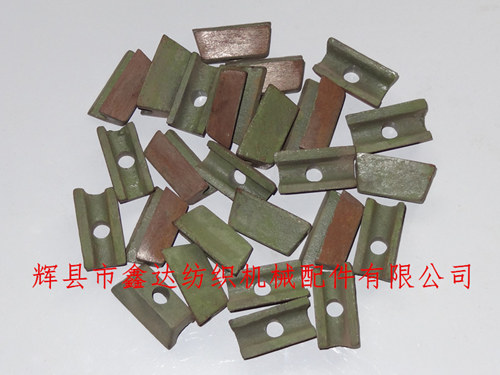

Loom side support box climbing L69A, hole diameter 8.5mm, length 41mm, material HT15-32, each loom uses 2 pieces, belonging to shuttle 1511, 1515, GA615 loom universal accessories, fixed connection L49XL50 side support or 3913X3909 side support box.
Model 1511 side support box joint = L49 side support seat and L50 side support cover, climbing and side support products are connected by L70 screw (T-shaped).

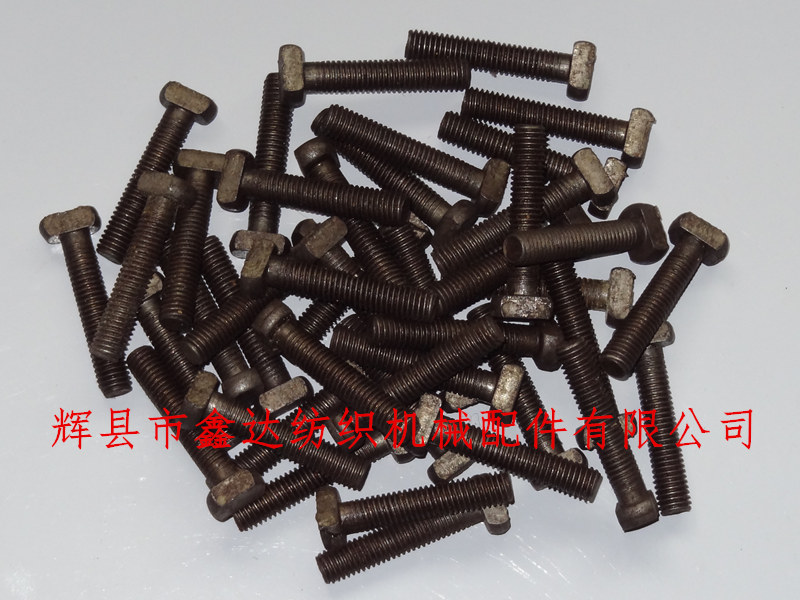

The standard length of screw for L70 side support box of loom is 41 mm, M8, material: steel 20, each set of side support box uses 1, 2/table, the total length of shear hammer pin of textile machine is 31 mm, M8, which is connected with 3912 or L47, the thickness of thin fabric is less than 0.3 mm, the width of side support box is 0.6-0.8 mm, the width of medium-thick fabric is 0.8-1.0 mm, the width of side support box is 1.0 mm for thicker fabric. When weaving thick fabric, the width of side support box should be more than 1.6 mm.
