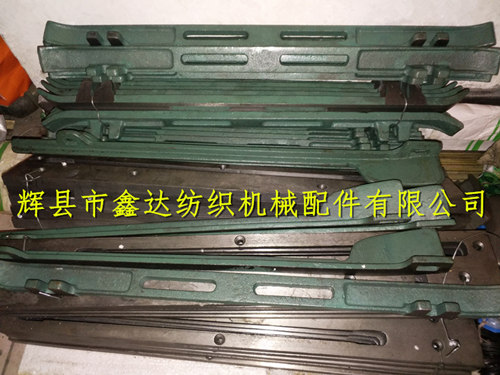

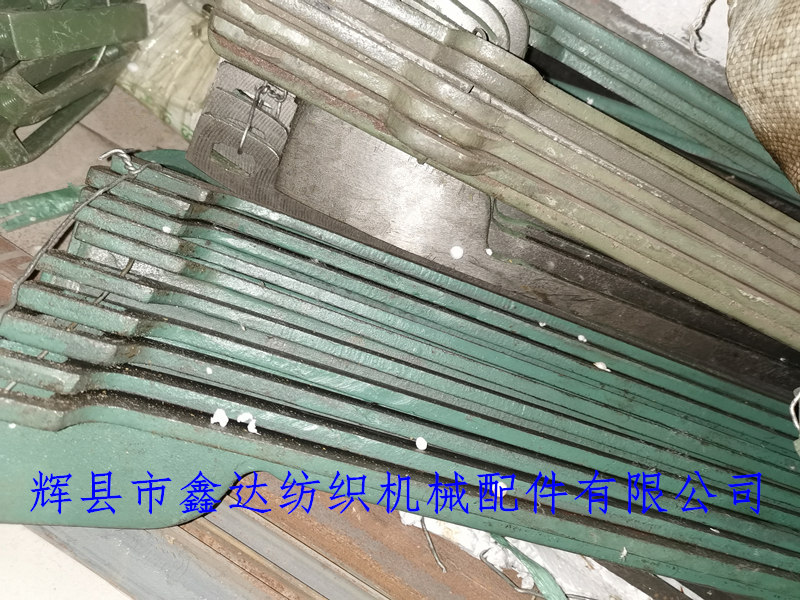

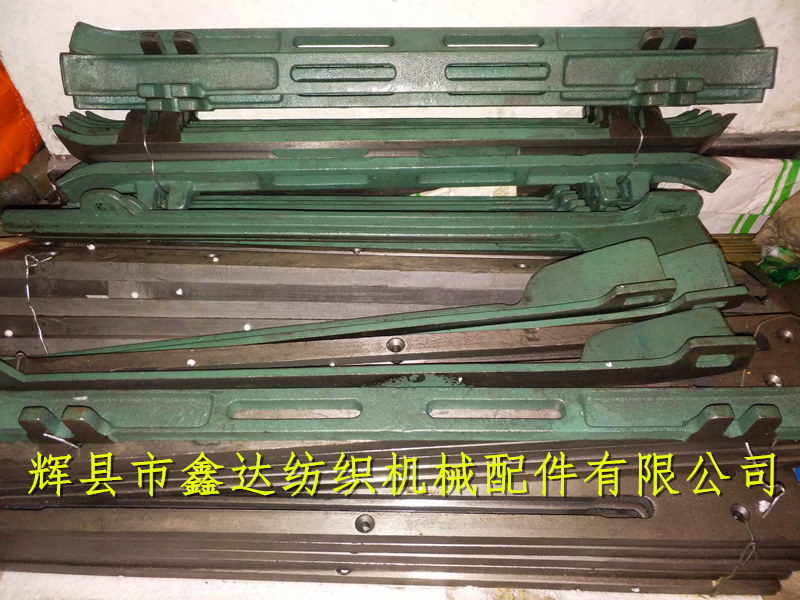

Our company perennially provides shuttle box accessories of 1515, GA615, 1511 and other types of looms, shuttle box cover 3305, shuttle box bottom 3307, shuttle box Front Guard (protective plate 3306), etc. 3308 shuttle box bottom plate is used for shuttle warehouse side, length 600 mm, slot opening, shuttle box bottom plate 3307 and 3308 of loom are separated, the material is pig iron.

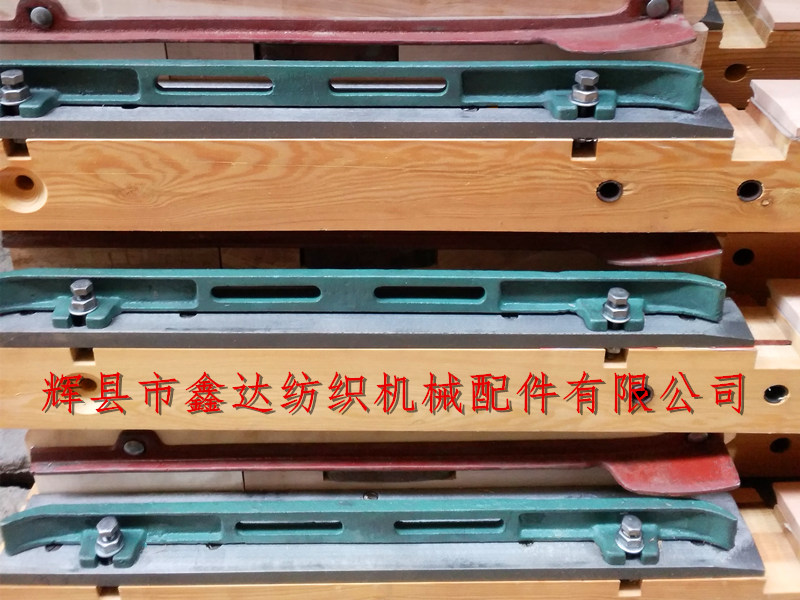

Loom Dragon (Reed Frame Wood) repair accessories, shuttle box bottom plate 5 pieces/bundles, other shuttle box cover plate, protective board 10 pieces/bundles, shuttle box bottom plate processing accuracy in accordance with industry standards, to ensure that the bottom of the reed frame wood assembly is flat, the upper plane angle is complete.Shuttle Loom Box Front Guard 3306A.
The cover plate length of 1511 shuttle box is 521 mm and 1515 is 562 mm. The fixed screw (8X40) of 1511 shuttle box is the same. The bottom plate of 1511 shuttle box is divided into switching side (540 long) and shuttle storage side (K15 = 552 mm).
