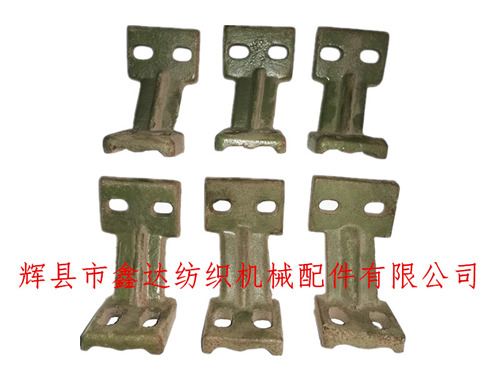

Henan Xinda Textile Accessories Co., Ltd. provides the loom cover leg D35 all the year round, which is the fixed leg of the triangular belt pulley shield of the loom. The fixed leg is 64mm long and 44mm wide, with two holes on the top and two holes on the bottom. The textile accessories D35 belong to the general accessories of the loom, which can be installed on the door frame looms of 1511, 1515, GA615 and other models. The shell feet are divided into left hand and right hand, material HT15-33.
The method to distinguish the left and right hands of the cover feet: the inclination direction of the support feet is left hand, and the opposite is right hand. The cover feet of the textile accessories are used to fix the d34 crank shaft gear cover of the loom, and are installed on the side bracket of F41 crankshaft.
The length of the bottom surface fixed on F41 is 54mm. The textile machinery part D35 is an uncommon accessory, with 10 pieces in each bundle and 10 pieces in initial order. The default payment is to arrange production and delivery at the agreed time. The left hand and right hand of the inclined support bracket are distinguished according to the inclined direction, and the D36 curved support bracket is fixed on the other side of the housing.
Weaving machine accessories manufacturers, D35 processing and wholesale, cover foot sales price - Huixian Xinda Textile Machinery Accessories Co., Ltd., special loom accessories can be professionally customized in batch, welcome to consult.
