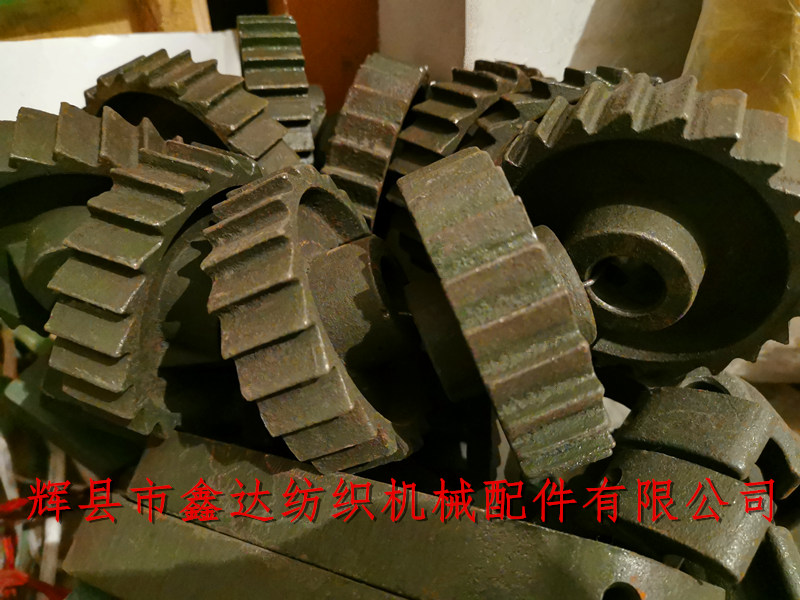

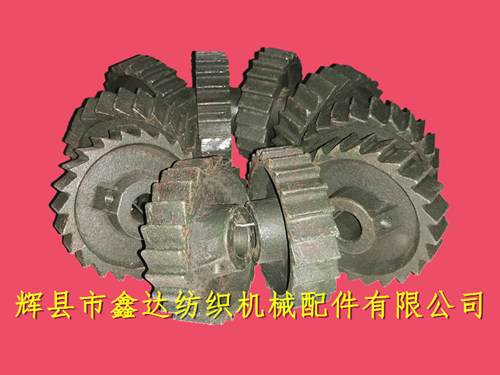

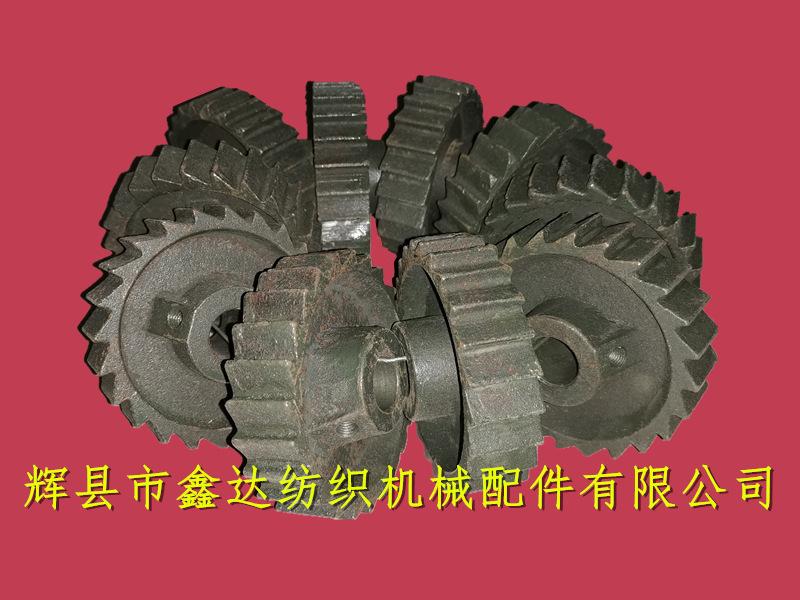

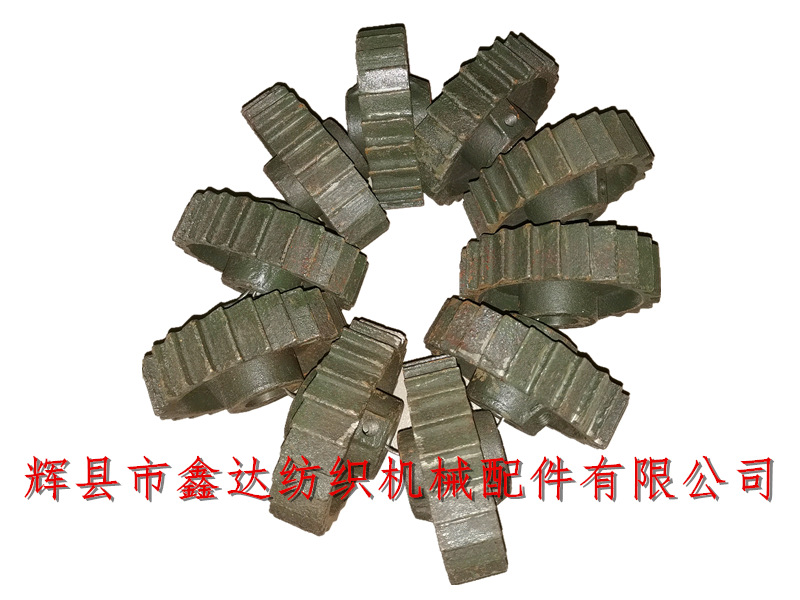

The take-up gear part L7 of the electric loom is a kind of helical gear on the shuttle loom, which is mainly used to fix the reverse hook to prevent the reverse gear from desanding during the take-up process. It can be used in 44 inch and 56 inch narrow and 63 inch, 75 inch and 110 inch wide electric looms.
The codes of accessories used in electric loom, small loom and old loom are relatively uniform. As long as the corresponding accessory parameters can be determined according to the part number, the take-up device and the let off part are equally important in the transmission structure of the loom, so as to ensure the uniform warp tension and synchronous displacement in the weaving process.
Material of coiling gear accessories: HT15-33, color: green and red. There are jackscrew holes on the outer edge of the shaft hole, fixed with 6 bolts, and the depth of the helical gear is the standard for checking the wear degree.
The above figure is the top view of the saw gear, and the coiling roller has the function of relying on the thrust to advance or resistance to stop. We can contact our company for polishing of loom accessories, sanding of electric loom, tooth cleaning and manufacturing of coiling gear.
