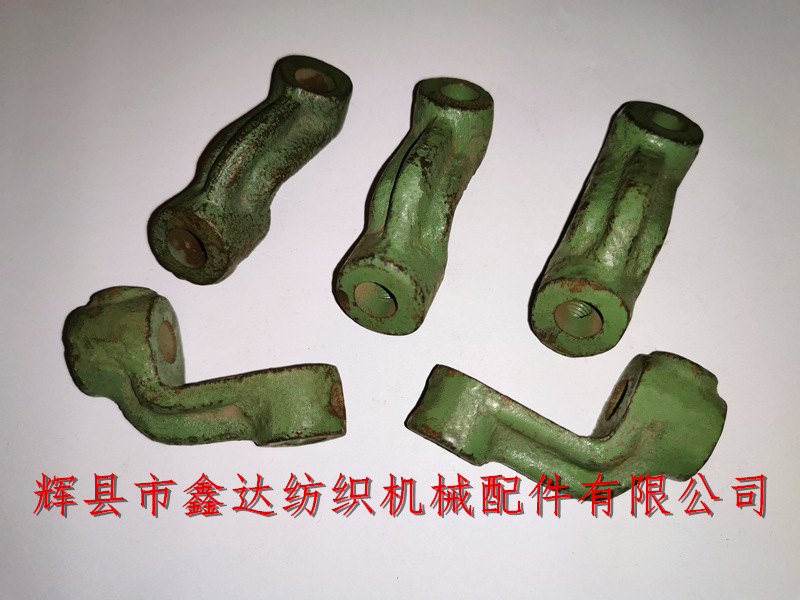

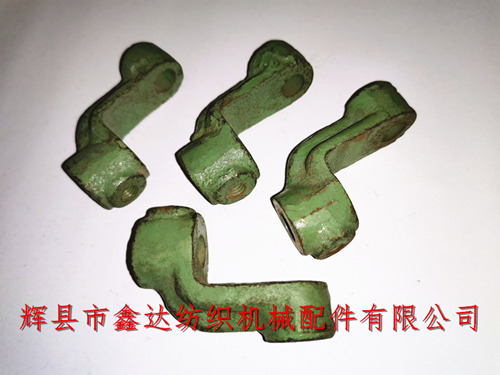

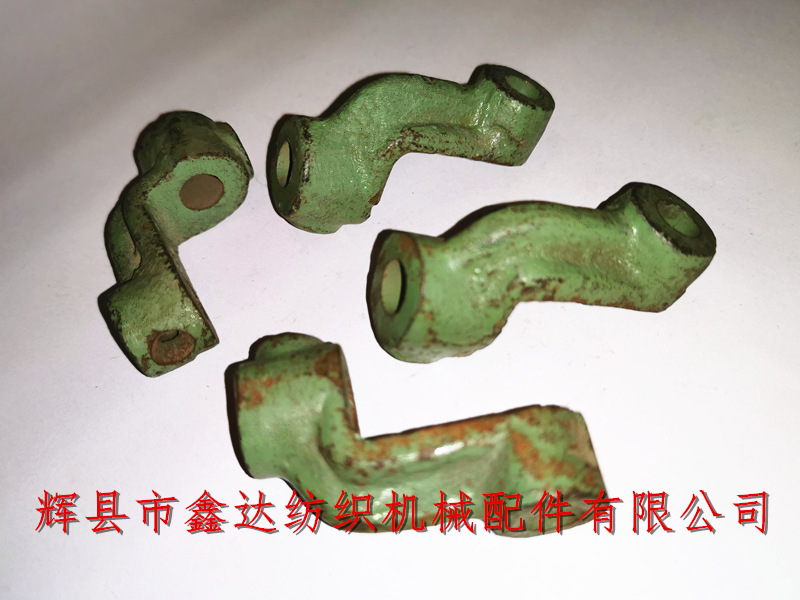

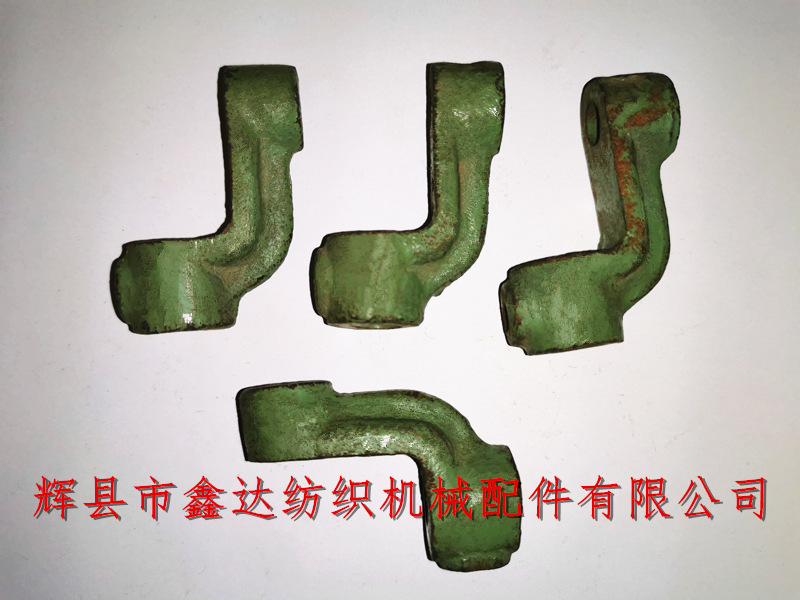

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides modern textile machine parts o17 foot cap. Modern textile machine generally refers to 380V electric loom with models of 1511, 1515, GA615, 1515k, H213, etc., which is different from traditional folk wood loom. The production efficiency of electric loom is good. The length of o17 foot cap of modern loom is 5cm, and the diameter of shaft hole is 8mm and 8.5mm respectively.
Modern textile machine accessories o17 foot cap is connected with loom 3600-3 or o00-4 foot cap connecting rod assembly. One piece is used for each loom, which is installed behind the switch side of the loom. The single piece weight is about 0.05 kg. O17 product shape is right angle, its side has bending bars to ensure the mechanical strength.
The common accessories for the warp break stop of modern loom include o16 swing rod, O8 fork angle pivot, O9 fork angle pivot cap, C5 warp stop leg, O19 sleeve support rod stop ring, O19 swing shaft sleeve, O20 warp break stop rod screw core, o23 combined rod screw core, o23 connecting bolt, o25 connecting rod screw core, O26 foot cap connecting rod connecting rod core, O32 stop frame middle partition plate, o43 swing rod shaft support foot, o45 Swing rod shaft middle hanging foot, o46 semicircular bushing, o104 fork angle pivot cap screw core and other products.
Modern textile machine accessories o17 foot cap, 50 pieces per string, the minimum order quantity is more than 20 pieces, the material is ht15-32, and M5 square head screw is used for the top screw hole. If you want to purchase shuttle loom mechanical stop parts, you can contact our company for details!
