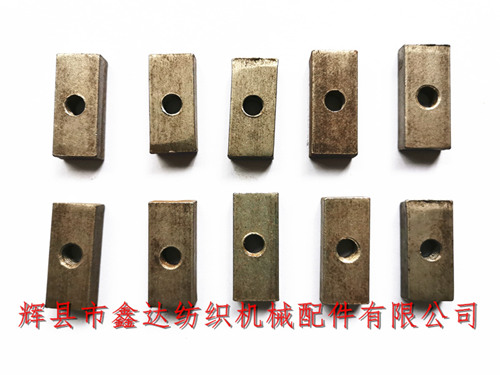

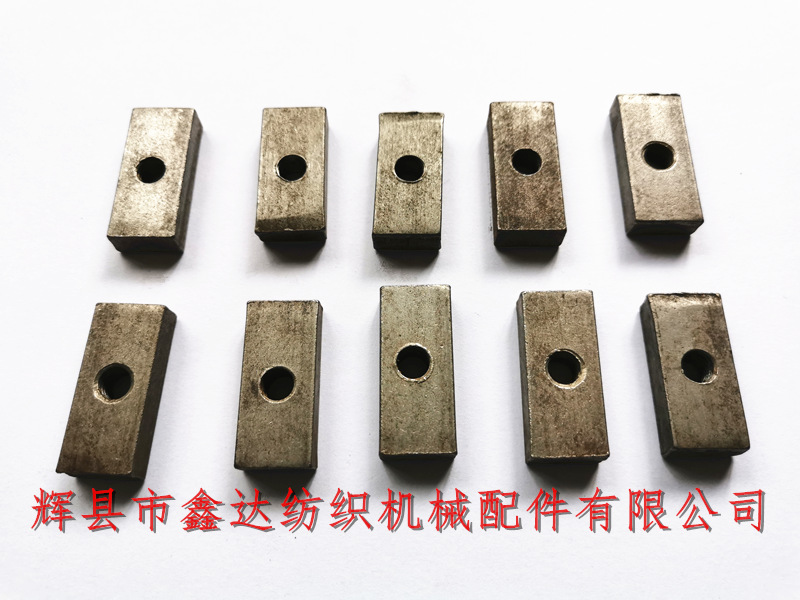

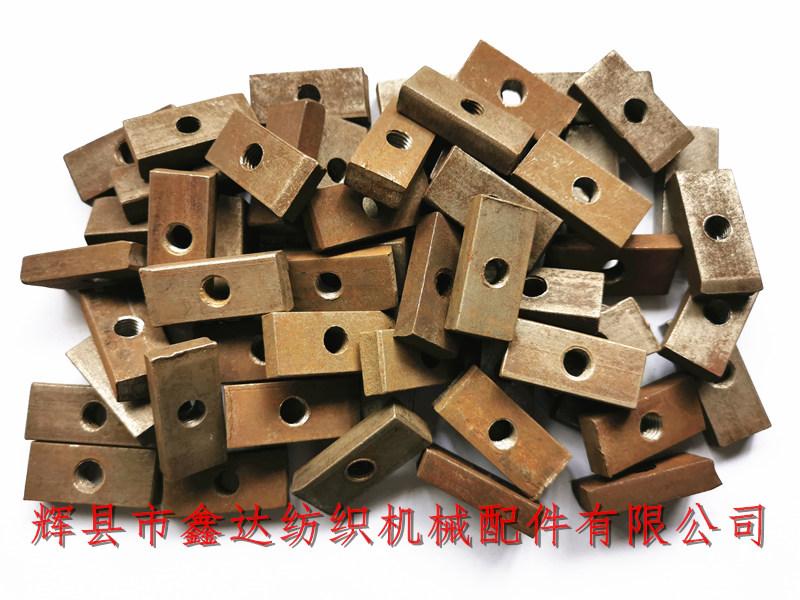

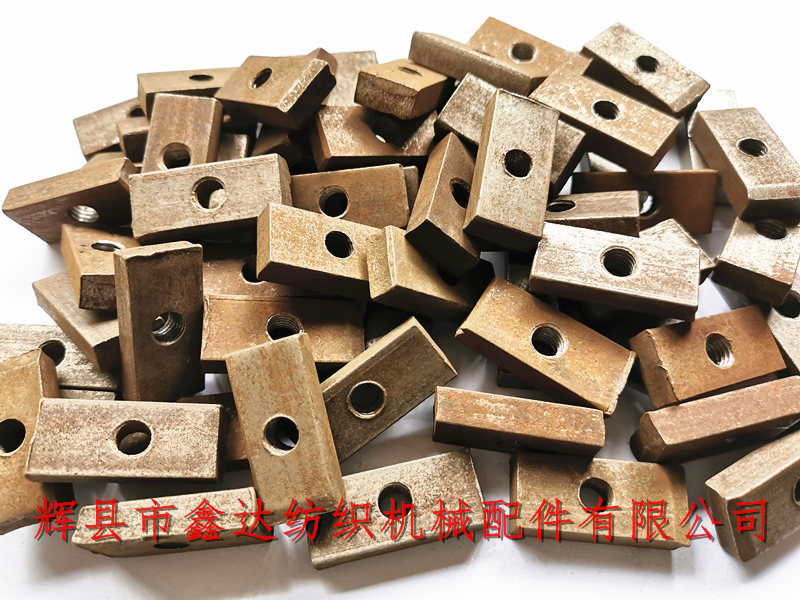

Huixian Xinda Textile machinery parts to provide F117 weaving machine accessories clamping nut, material: A3, processing technology: forging, F117 clamp nut shape length of 36 mm, width of 16 mm, thickness of about 8 mm, middle fixed screw M8, each loom uses two F117, loom machine accessories - clamp nut with F116 side clamp and side plate (3302 or Q12).
The clamping nut of F117 weaving machine accessories is a buffer part, which is mainly used for the side plate reset and buffer of loom. It is suitable for shuttle looms of various models and specifications (ga611, 1511, 1515k, GA615, etc.).
A hole of ga611-2104 buffer belt is connected with the bolt fixing F117. It is necessary to regularly check whether the buffer belt is damaged during the operation of loom, so as to ensure the normal use of three wheel buffer.
The three wheel buffer is composed of buffer belt F112, bridge plate F104, eccentric plate F105, spring plate F107 or F108, buffer spring F109 or F110. If textile manufacturers need to purchase textile clamping nut, F117, weaving machine accessories, please contact our company.
