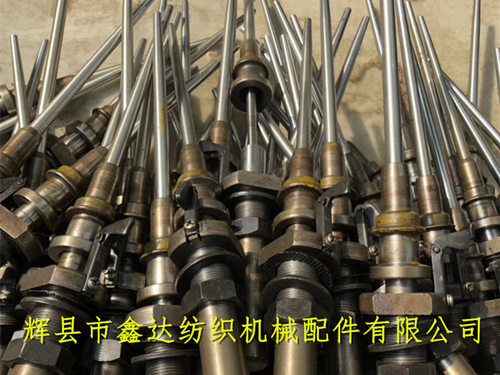

The old spindle of 02 type winder belongs to textile accessories, Textile Machinery Old Spindles Of Winder,which is mainly used in various simple winders, g193 and g203 high-speed beating machines. The spindle of textile machine is composed of spindle seat, spindle bar, spindle hook, fine thread nut and fastening gasket. The needle roller bearing in the inner cavity of spindle seat is convenient for the spindle bar to rotate with the machine at high speed, and the bottom of the inner cavity is provided with sheet top spring. Spinning spindles, old spindles - d1203 series of spindles are widely used and of good quality.
Textile machine accessories - the number of spindles used is related to the number of spindles used in the winder. The specifications and models selected for different textile machines need to use corresponding bobbins (plastic and wood). The number of second-hand spindles is 50. Textile Machinery Old Spindles Of Winder,There are more discounts for more than 1000 spindles.
The spindle hook of the textile spindle is mainly used to prevent the spindle from flying when it rotates at high speed. The spindle used by some spinning equipment needs to be equipped with a brake to facilitate the quick braking of the spindle with high speed rotation and stop the operation.
The opening and closing of the spindle hook with 7-head is as shown in the figure above. Please lift it up when installing and removing the spindle bar. The old spindle seat and spindle can not be interchanged, because the wear degree of each spindle is different, and the processing error of each accessory is different. After interchanged, abnormal noise, high-speed run out, speed reduction and other phenomena will be caused.Textile Machinery Parts Old Spindles Of Winder.
Textile machine accessories - old spindles, second-hand spindles, spinning spindles, old spindles and other products for purchasing, please contact our company for detailed consultation.
