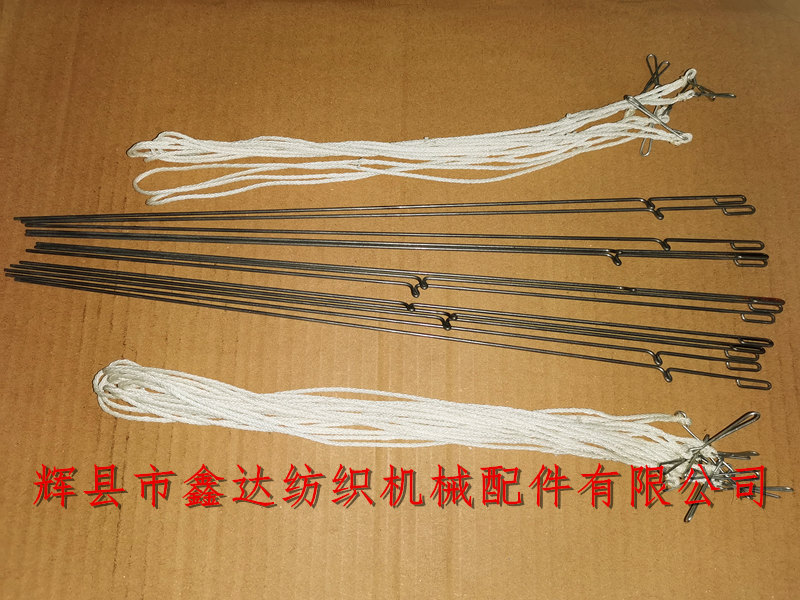

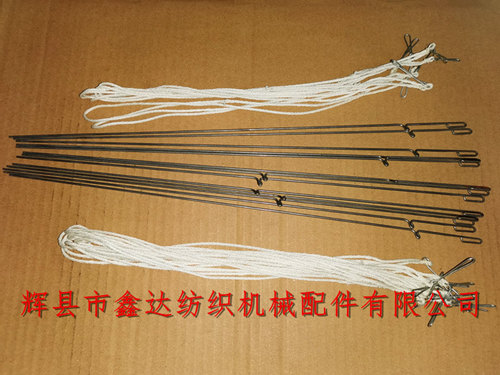

Textile jacquard accessories horizontal needle and rope, mechanical jacquard, textile fleece parts are used for weaving special kinds of fabrics after the installation of the loom. The horizontal needle and vertical needle equipment accessories of the loom are widely used in the old shuttle weaving, which can be used in gt503, jk202, tk212, TK80, gt505, towel, silk, rapier machine, etc.

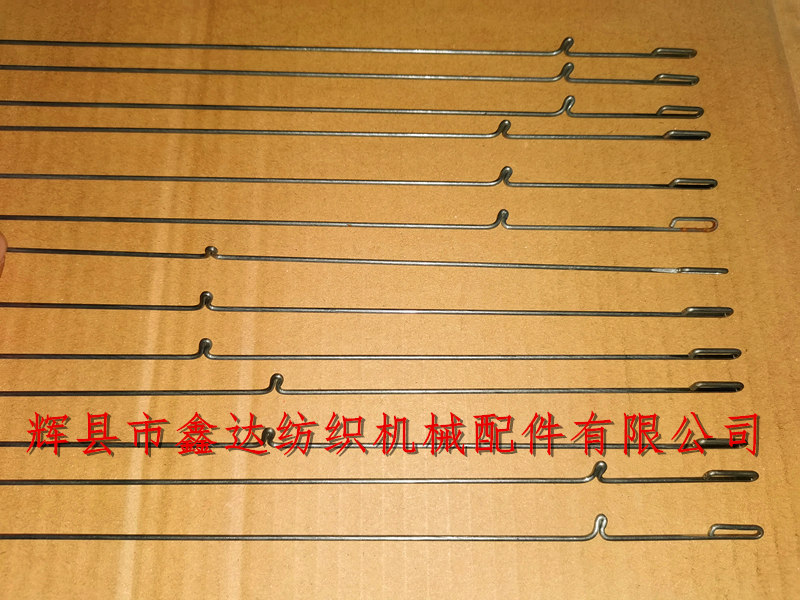

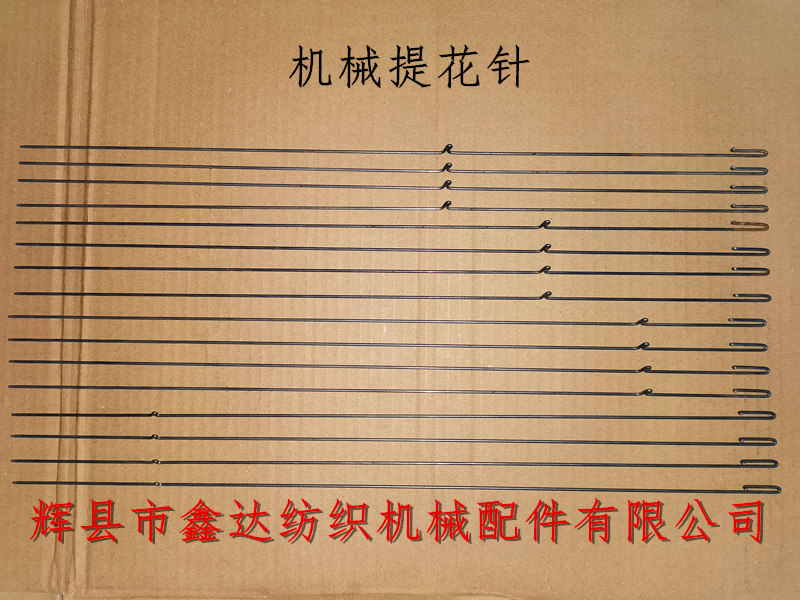

The cross needles of different specifications are arranged in the jacquard device, so that each cross needle can control one warp, which is convenient for the combination of warp and weft to achieve the required pattern weaving. According to the total length, the specification of transverse needle can be divided into 40.3cm and 32.5cm. The diameter of steel wire can be divided into 1.5mm and 1.4mm. Each bag has 500 pieces. The length of lifting rope for lifting is about 26.8cm.
Textile accessories include loom special parts, jacquard accessories, fleece accessories, twill accessories, horizontal needle and vertical needle bending handle are produced and processed by standard mold, with stable quality. Mechanical jacquard machines are generally modified on looms of 1511, 1515, GA615, K72, H212 and other models.

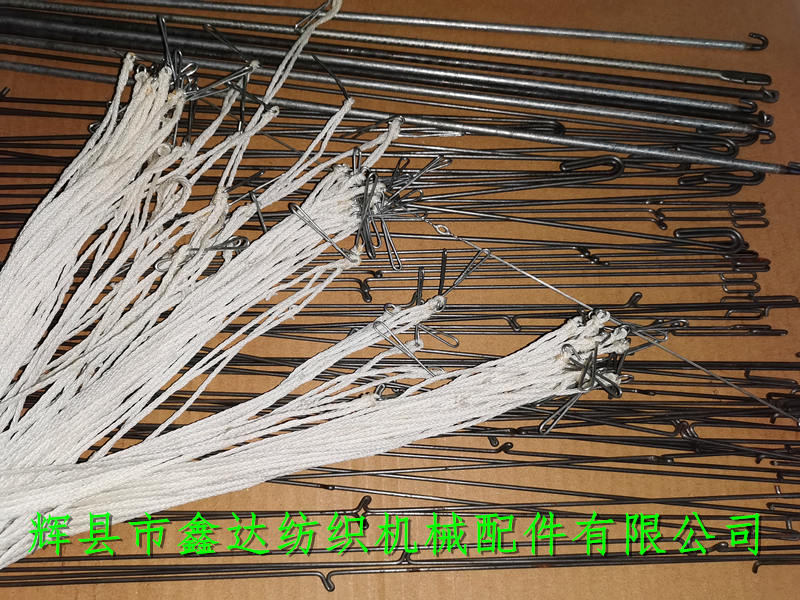

The hook used for soldering heald wire (with sliding wire) is shown in the figure above. Textile horizontal needle parts, loom vertical needle parts and other support according to customer requirements to open mold processing, cost controllable, convenient production, rapid delivery.Textile horizontal needle, Jacquard machine accessories, Sling.
Mechanical jacquard, textile jacquard machine accessories horizontal needle and lanyard, textile horizontal needle, jacquard machine accessories, lanyard and other products purchase please contact our company for consultation and negotiation! Initial order quantity: 1000 pieces, normal delivery time 4-7 days.
