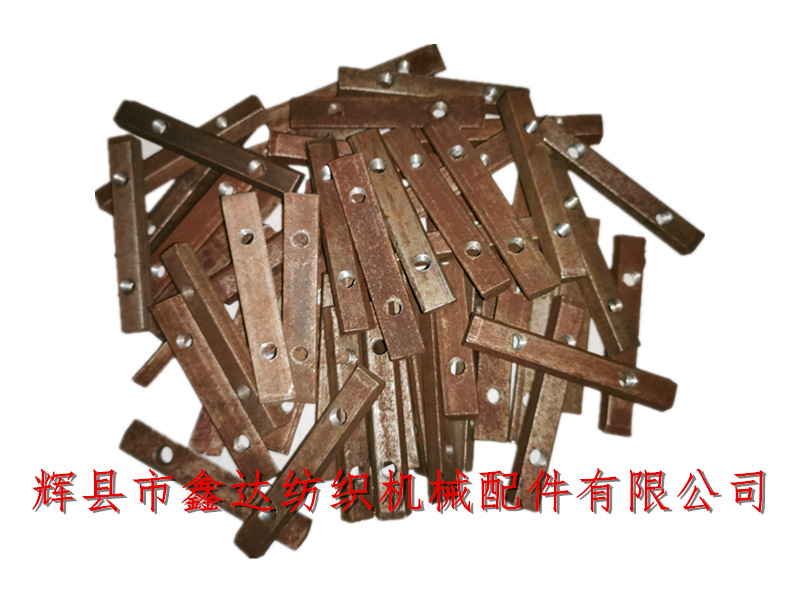

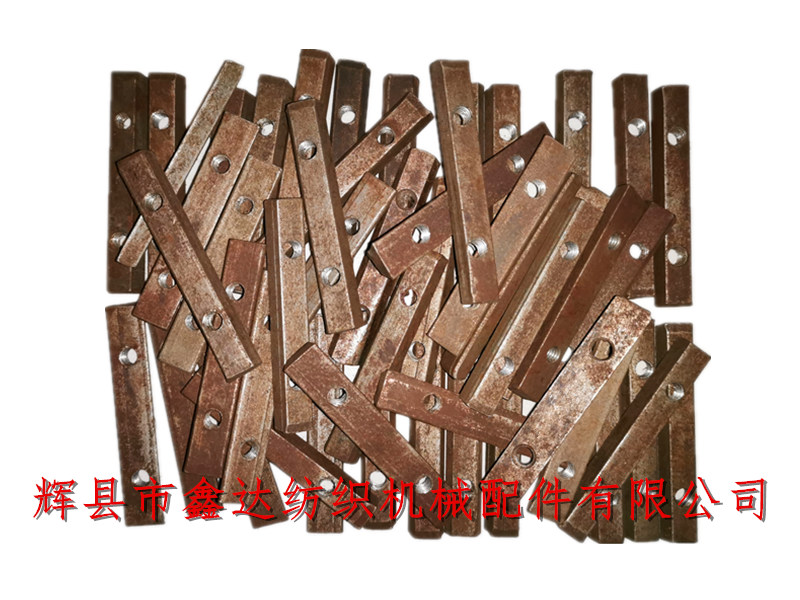

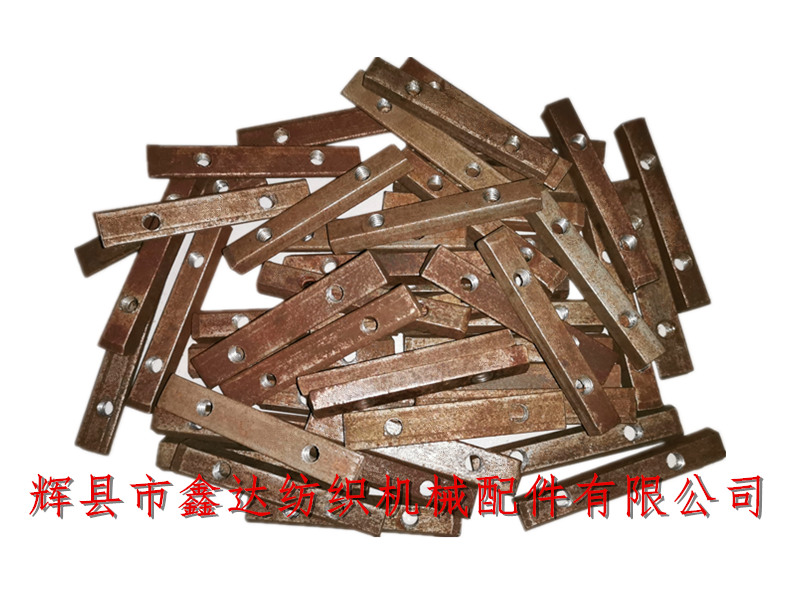

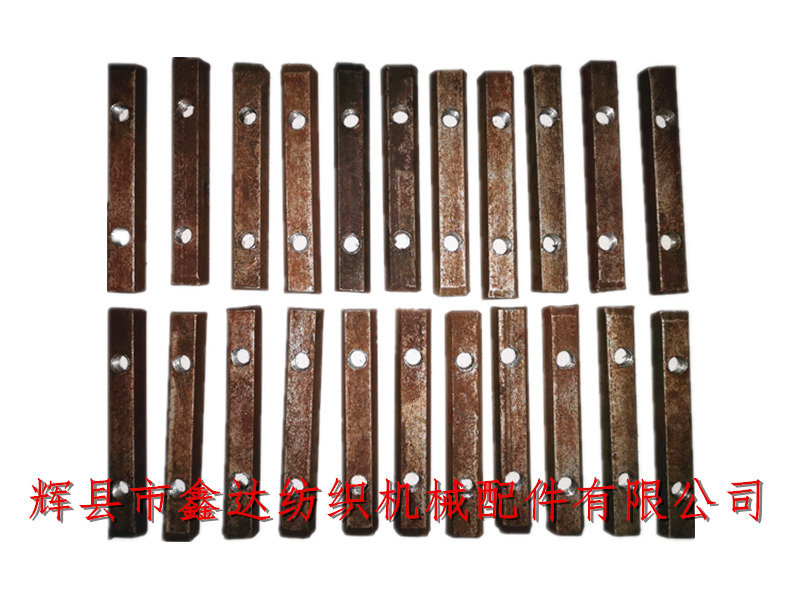

K206 textile machinery accessories sley clip wood sizing block has a total length of 7cm, bottom width of 11.5mm, and top width of 8.5mm. K206 Textile Machinery Parts Reed Wood Mat Iron,The sizing block of old textile machinery accessories can be applied to all kinds of looms with different door sizes, but the number of looms with different door sizes is different. 5 for 56 inch looms, 7 for 75 inch looms, and 3 for 1511-44 models.
K206 textile machinery parts are forged and extruded with A3 material, with a "trapezoid" cross section, which is connected with the loom sley clip wood Q11 or sley clip wood strip 3220.Textile machinery parts, reed clip wood, textile pad iron.
The length of the reed clip is related to the width of the door. 56 inch loom = 1.394 m, 63 inch loom 1.568 m, 75 inch loom 3220 1.873 m, 44 inch loom 1.083 M.
The two screw holes of k206 textile machinery accessories are M6, which are fixed on K24 reed clamp shaft side wing, K25 reed clamp shaft middle wing or 1515w-3113 (GA615 loom) with 6x35 light hexagon head bolts.
If you need to purchase k206 textile machinery accessories, please contact our company for details, with an initial order of more than 100 pieces. In addition, you can also contact manager Yang if you need textile cold plate forging accessories, shuttle machine hardware components, and various textile pads.
