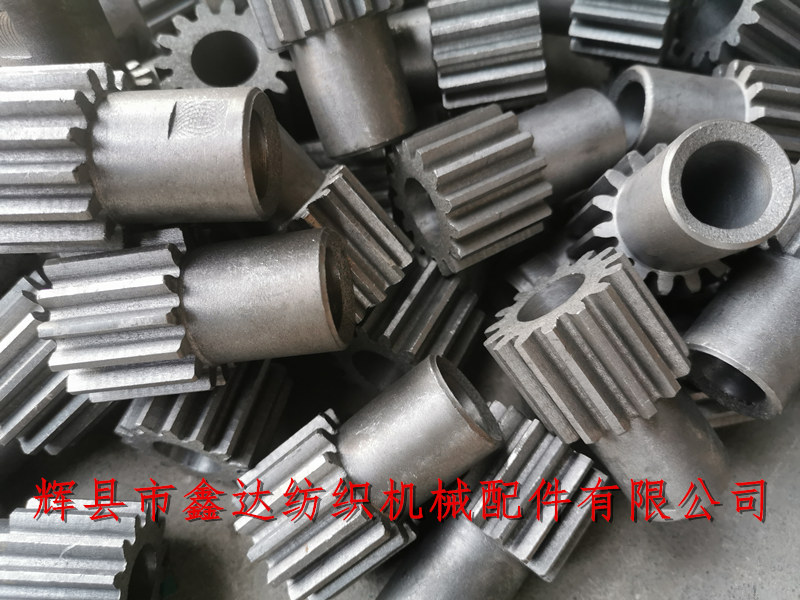

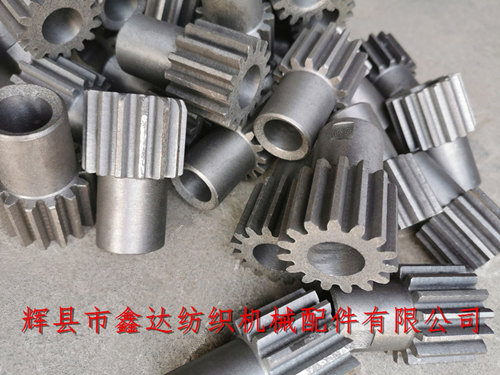

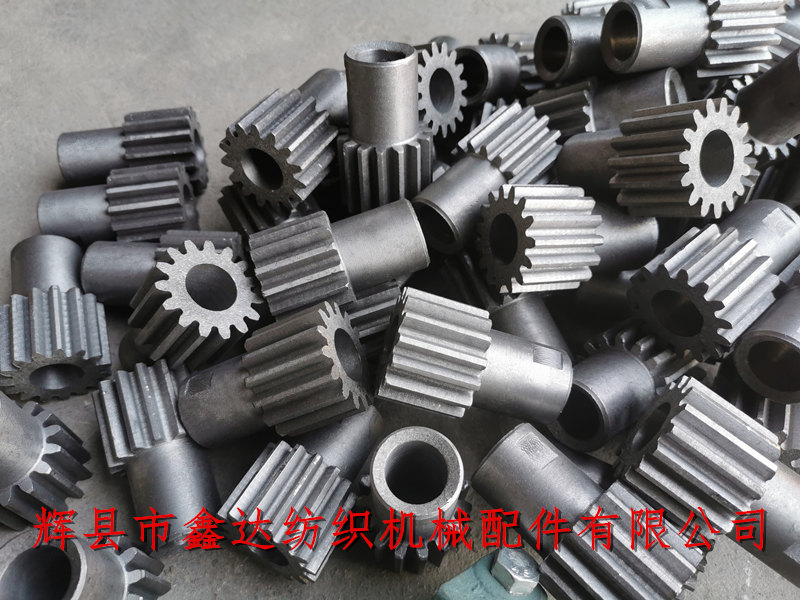

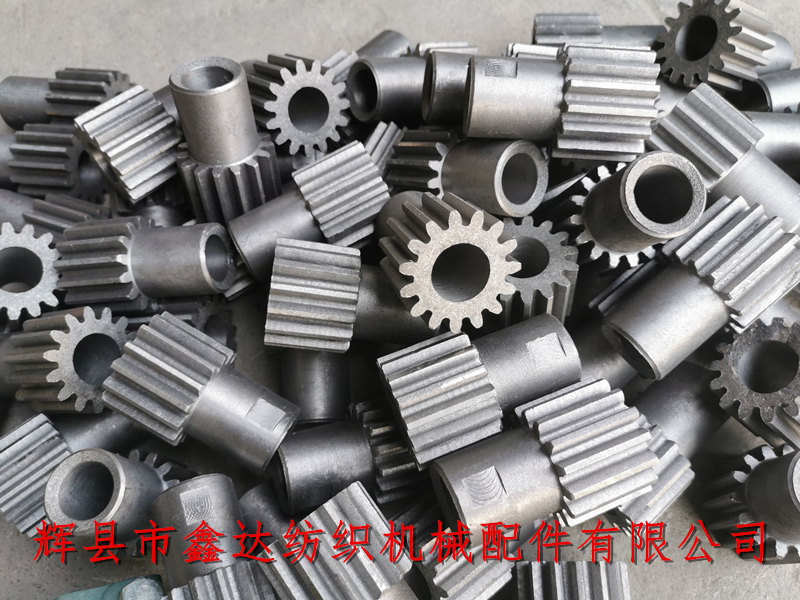

There are shuttle textile machinery accessories bridge gear L11 (milling teeth,Intermediate Pinion) installed in the take-up device of the loom. The number of teeth of the milling teeth gear is 15, embedded in the center of the bridge gear L10 of the loom (89 teeth). The textile bridge gear L11 can be divided into metric system and British system according to the specifications. The inner hole of the British system gear is 19mm, and the metric system is 20mm. The mechanical principle is the same when using.
After the processing of the original turning and milling, the gear surface is smooth and clean, the accuracy is greatly improved, and the tolerance fit is more in line with the requirements. The product is suitable for the use of various specifications of looms of 1511, 1515, 1515k, G611, GA615, etc.
The material of the bridge gear L11 (milling teeth,Intermediate Pinion) of shuttle textile machinery accessories is ht15-32 gray iron. For the production of nodular iron, manganese steel materials should be added for the proportion. The processing process of the product center hole needs to strictly ensure that the machine does not jump or shake, and that the hole is vertical to the bottom surface.
The packing of the bridge gear L11 (milling teeth,Intermediate Pinion) of the shuttle textile machinery accessories is woven bag, each string is 10 pieces, and the single weight is about 0.2kg. If you want to buy the gear of weaving machine,Textile machinery parts, textile gear, gear milling parts, you can contact our company for consultation.
