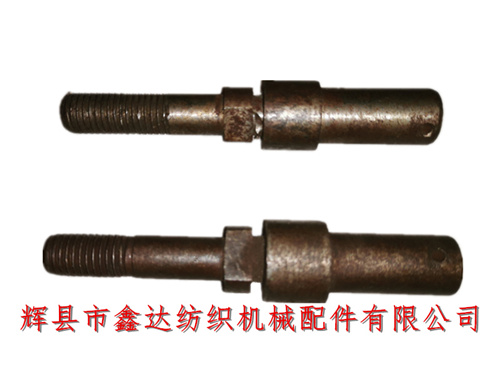

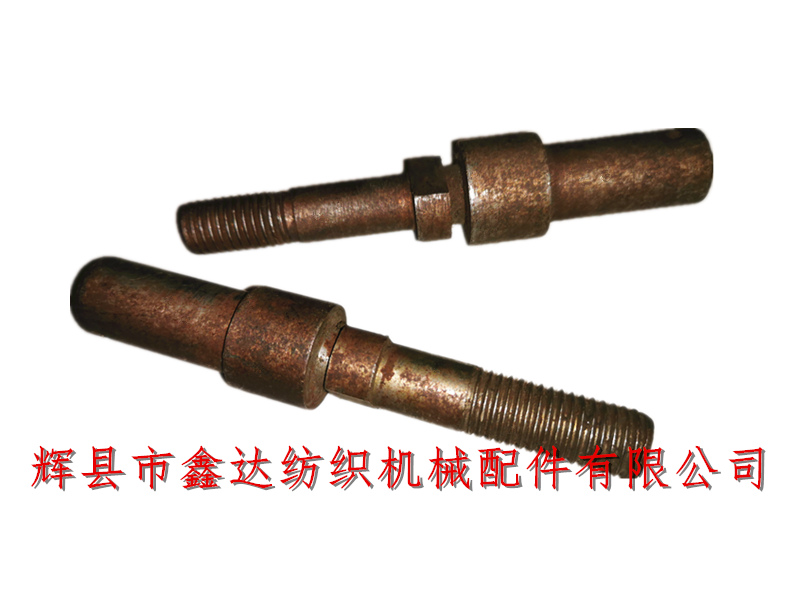

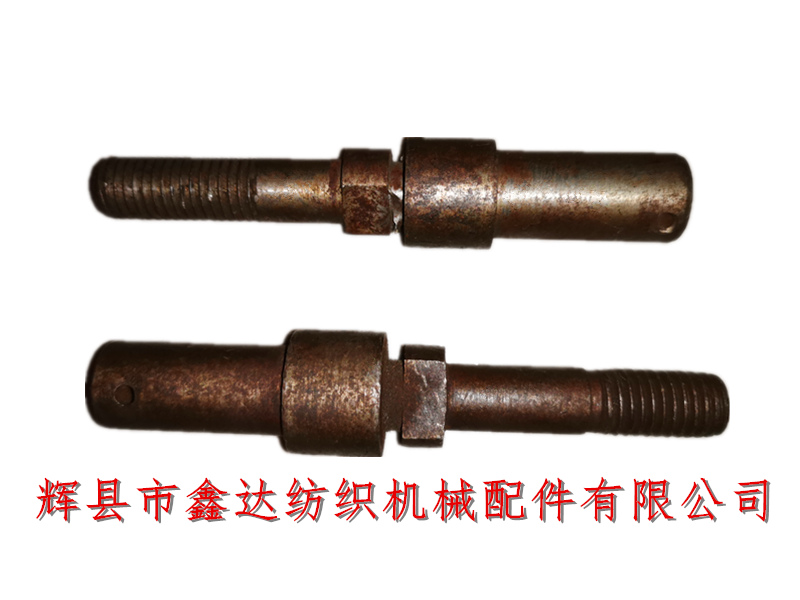

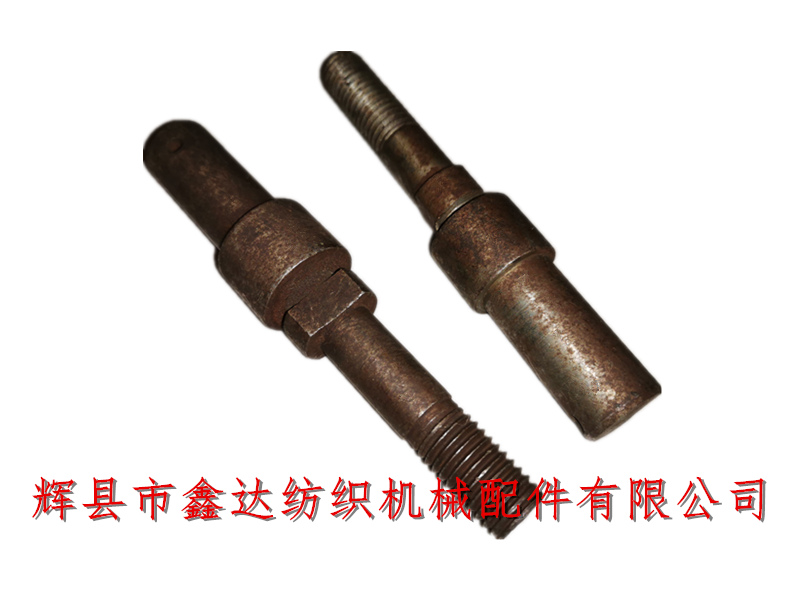

The treadle core of B50 loom is the let off part of loom, the total length is 106.5 mm, the diameter of the middle cone is 22mm, the length is 16mm; the tail length of the treadle pin is 33mm, the diameter is 16mm; the length with screw and square table in the front is 57mm. The core of old B50 loom is installed on the wall panel, and each loom uses one piece.
The core of B50 loom treadle bar is used to fix B28 step bar (1511, 1515 and GA615). It can adjust the tightness of cloth surface when stepping on the treadle bar, which is convenient for the repairman to repair the equipment failure when the machine is working.Textile pin, loom core, step bar.
The inner let off assembly of B50 loom is composed of 1515-b29d T-joint angle square bracket, B30 foot shank, B34 warp adjusting hand wheel, B37 side shaft umbrella wheel, B36 let off saw gear bevel wheel, B46 sector arm, B48 angle square joint, and B52 angle square joint core of textile pin shaft, etc.
The single weight of the treadle core of B50 loom is about 0.1kg. In addition, we can also provide F18 shuttle plate screw core, L00-6 change gear screw mandrel, L00-5 bridge gear pin, 3309 front brake rail screw mandrel, K33 stop engine shaft and other textile pin shafts. Welcome to buy!
