Huixian Xinda Textile machinery accessories provide a variety of old textile accessories. Among them, F107 / f108 textile machine spring plate accessories are mainly used for the buffer structure of traditional 1515 and 1511 shuttle looms, and the cushion cotton belt fixed by spring disc is used for the reset buffer after the shuttle throwing mechanism completes the impact of the shuttle throwing rotor. The material of F107 is HT15-33, which is divided into left hand and right hand, namely F107 and f108. When the diameter of the traction plate is 675mm, it is ensured that the diameter of the traction plate is from 675mm to 61mm.

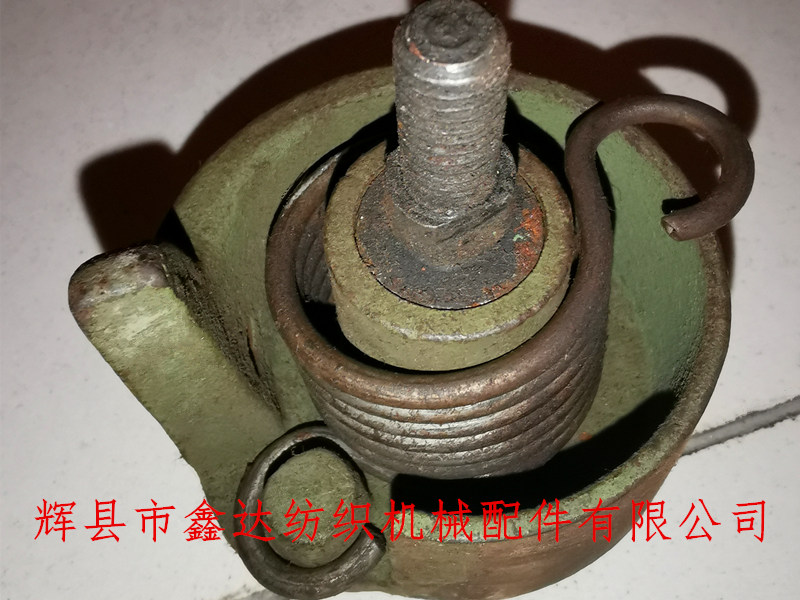

The figure above shows the structure of the buffer spring disc. The textile pin shaft F106 of the inner hole is used for fixation, the f109 and F110 buffer torsion springs of the inner ring are used for springback, and the spring hook is clamped at the notch position. The diameter of f108 central hole is 20 mm and the height is 43 mm. The diameter of inner ring of f109 is 32 mm and the diameter of steel wire is 3.5 mm.
There is an oil hole at the bottom of the spring plate accessories of F107 textile machine, which is used for oiling outside the machine. The outer surface of the spring plate is polished, and the contact surface is forbidden to add oil.

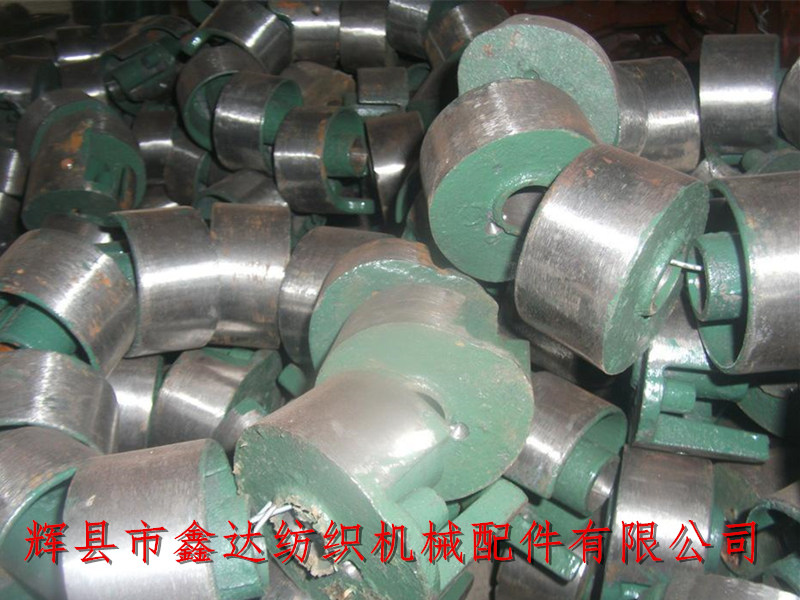

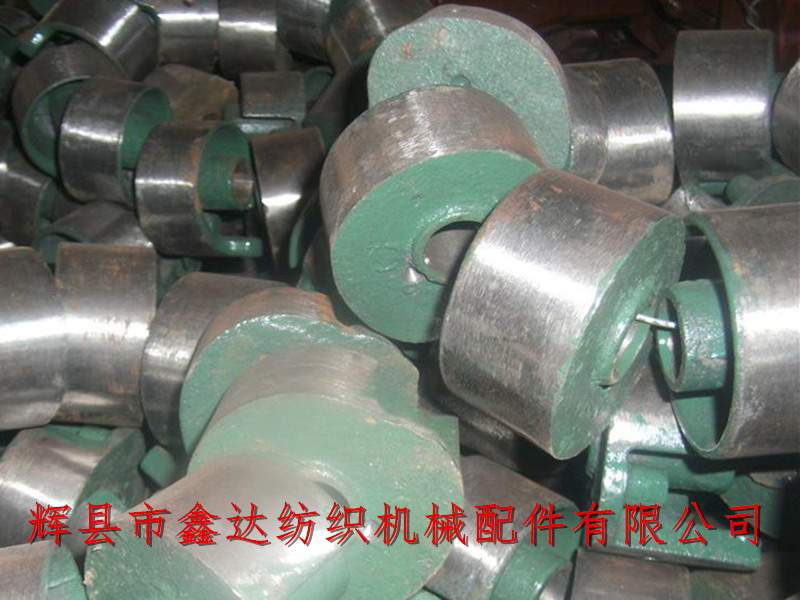

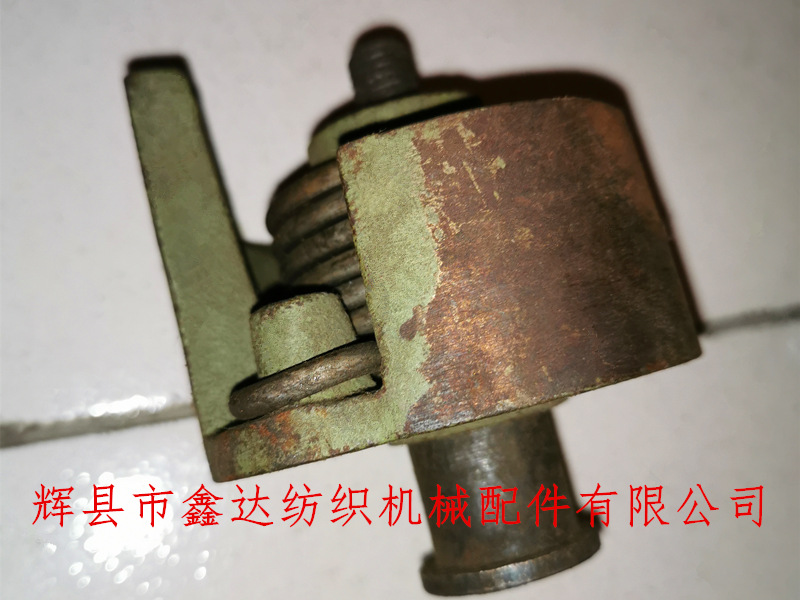

Textile accessories - F107 spring disc is packed in woven bags, usually 10 pieces / string. As shown in the figure above, the weight of a single accessory is about 0.35kg, and the minimum order quantity is more than 20 pieces. The spring disc of loom is an important buffer part. The side view is as follows:
Textile enterprises, textile manufacturers, trading companies, groups and individuals in various cities need to purchase F107 / f108 textile machine spring plate accessories products, please contact our company for consultation, welcome to visit!
