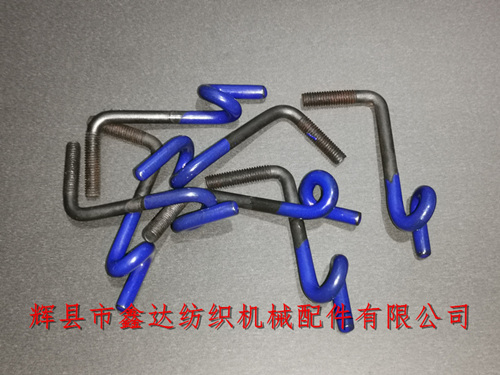

Huixian Xinda Textile Accessories provides textile yarn guide hook 0658 weft winder shrimp screw enamel pigtail hook. The main body of the enamel yarn guide hook is rectangular in shape, and the rear part has pigtail shaped yarn guide holes, with a total length of 56mm, a length of 28mm, a thread diameter of 5mm, and an internal diameter of 5mm for the enamel yarn guide hook (pigtail like position). The main function of the right angle yarn guide hook is to change the guiding direction of cotton yarn on the machine, and the blue part is enamel.
This accessory is applicable to 1332 slot bobbin or spindle type weft winder. The specific number of them used on each machine is related to the number of spindles of the machine. Normally, each spindle corresponds to an enamel hook, and the weight of a single shrimp screw is about 0.0122 kg.
Textile hardware accessories - Xiami screws are divided into three types, two of which are threaded, and one of which is wood screw type. The straight handle is divided into threaded and wood screw type, which is relatively small (short) and mainly used for weft winder equipment. The rectangular shape is large, which is suitable for slot bobbins or weft winders. Simple weft winders (spindle type) mostly use this type.
The enamel of enamel shrimp screw is mainly to increase the wear resistance of its surface. The enamel surface is smooth and fine without burrs. The resistance of yarn passing at high speed is small, which fundamentally extends the service life of enamel hook.
If you need to purchase textile machine accessories such as curved handle yarn guide hook, straight handle shrimp screw, enamel pig tail hook, 0658 enamel hook, please contact Mr. Yang of Xinda Textile Accessories for negotiation. We sincerely welcome the cooperation of our customers!
