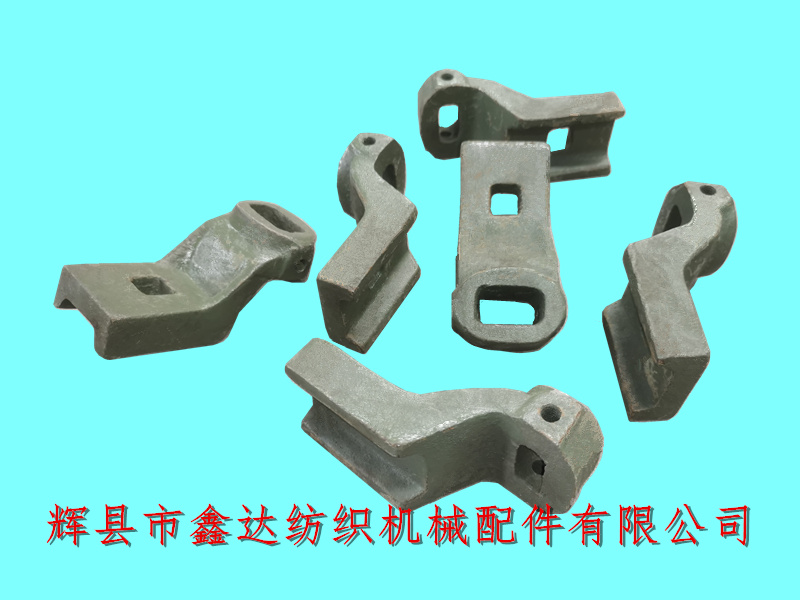

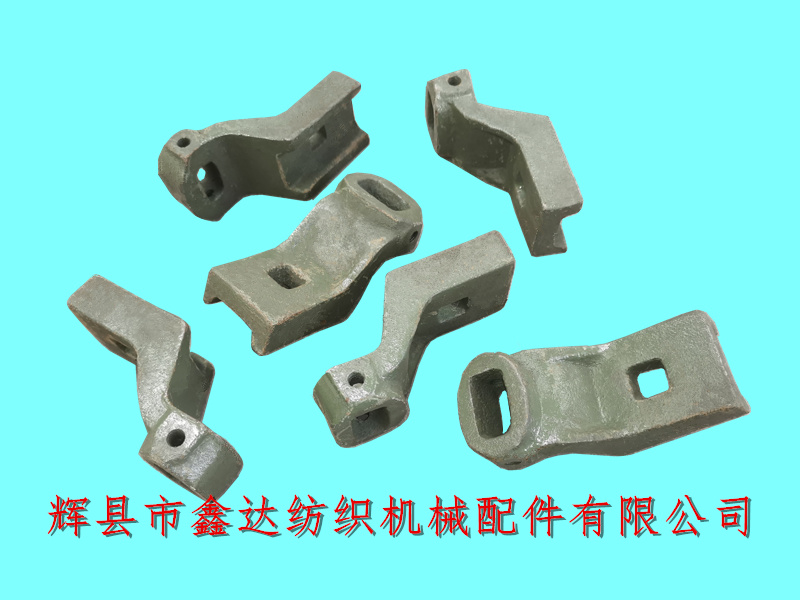

Huixian Xinda Textile Machinery Parts Co., Ltd. provides 3412/C10 Sector Brake Lever Hanging Foot, fan-shaped brake rod hanging feet with shuttle weaving machine accessories. The fan-shaped brake rod hanging foot 3412 used for 1515 weaving machine is installed on the wall panel 4301, and the brake hanging foot C10 used for 1511 weaving machine is installed on the weaving machine wall panel P1. The distance from the centerline of the rectangular hole to the bottom is 159mm (1515-3412), and the distance from the centerline of the rectangular hole of the C10 fan-shaped brake rod hanging foot to the bottom is 92mm.

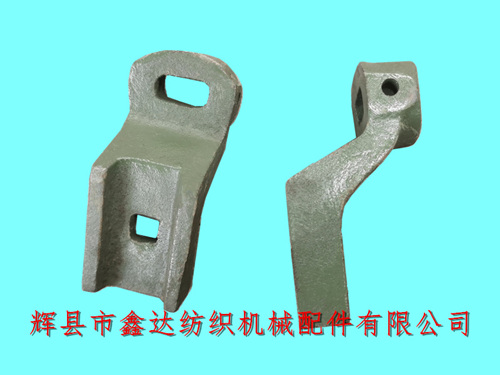

The square hole below the hanging foot of the fan-shaped brake lever (C10 in the above picture) is a fixing hole, which is connected to the wall panel of the loom with M12*75 semi-circular head square neck bolts (carriage wire).
This loom has left and right hanging feet, and its installation position is near the loom handwheel. 1515-3412 has a similar appearance to C10, with an added raised tail.
Packaging: 10 pieces per bundle (5 left and 5 right). If you need to purchase shuttle machine actuators, fan-shaped rods, weaving machine accessories, or shuttle machine equipment, please contact Mr. Yang from our company for consultation. We sincerely welcome your visit!
