Weaving Machinery
1515-32 Inches Small Loom
1515-32 Inches Small Loom time:2025-03-04 09:54:28 click:6700 keywords:small loom,1515 loom,looms,32 inches loom,shuttle loom
description:

1515-32 inch small loom is mainly used for weaving plain cotton and blended fabric,Such as the installation of various types of twill or multi arm lifting device,Can weave twill or weave more complex fabric.

Technical characteristics:

1, under the type of automatic shuttle shuttle.

2, hand to the left and right car. To drive a machine with the left hand

3, the width of the reed to wear 85 cm (Metric) in the range of 105 cm (nominal reed width of about 44 inches), and a total of 110 cm (nominal reed width of 46 inches), and a diameter of 120 cm (nominal reed width of 50 inches), and a total of about 125 cm (nominal reed width of 52 inches).

4, crank shaft (shaft) speed 180~220 rev / min (105~110 cm loom), 170~210 rev / min (120-125 cm loom).

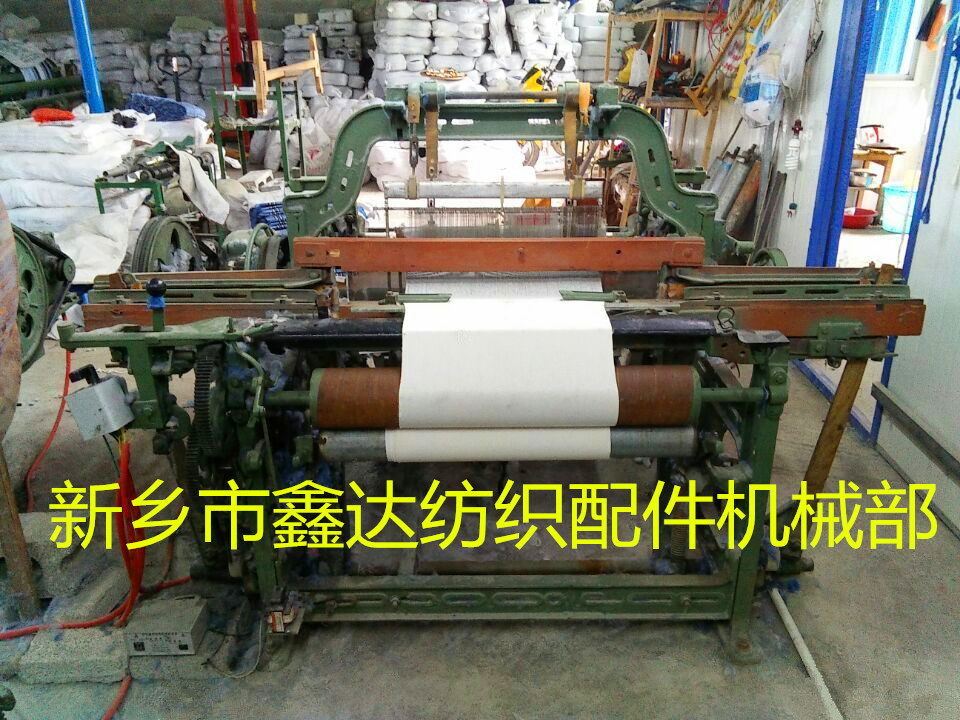

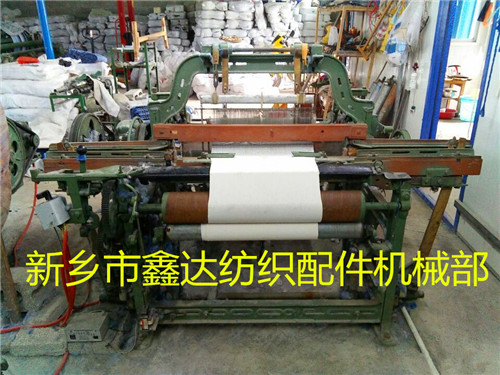

1515-32 inches small loom

5, the disc beam spacing 1074mm (44 inch shuttle loom), 1125mm (46 inch weaving machine), 1226mm (50 inch loom), 1277mm (52 inches loom).

6, full cloth roller diameter 222mm

7, motor speed of 960 rev/min.

8, motor FO53-6, power 0.8 kW (weaving machine to the majority of 0.8KW)
