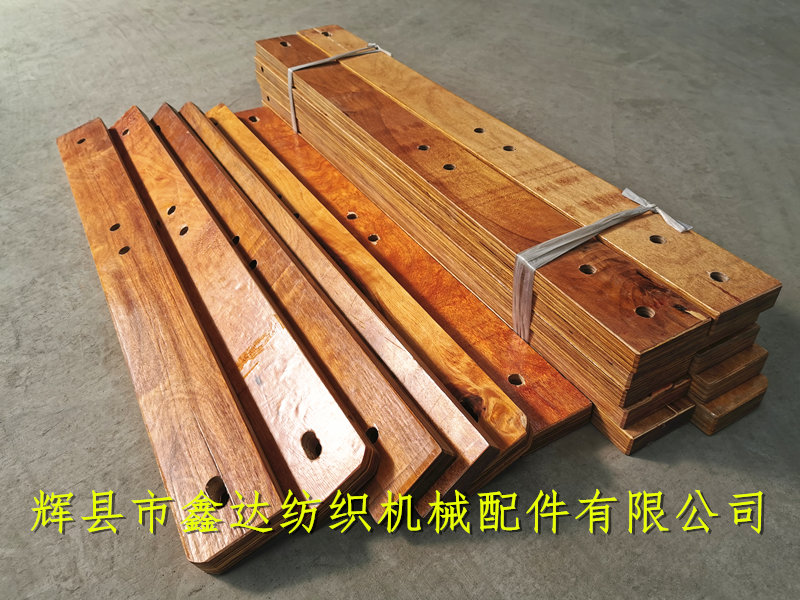

We provide 3302 and Q12 weaving machine side plate accessories,Shuttle Loom Side Lever Plate 3302 And Q12, The 3302 weaving machine side plate with length of 87.4cm, width of 76mm, thickness of 24mm, double hole fixation; Q12 side lever plate, also known as "bottom punch", is generally single hole type, aperture of 14mm, length of 80cm, width and thickness of 3302. Each loom uses two side plates, one on the outside of the left and right wall plates.
The side plate of the loom is made of several layers of veneer and brush glue, which is equivalent to plywood compression. The laminated wood fittings of the loom have good toughness and impact resistance. The intermittent shuttle motion is realized by the lever principle.

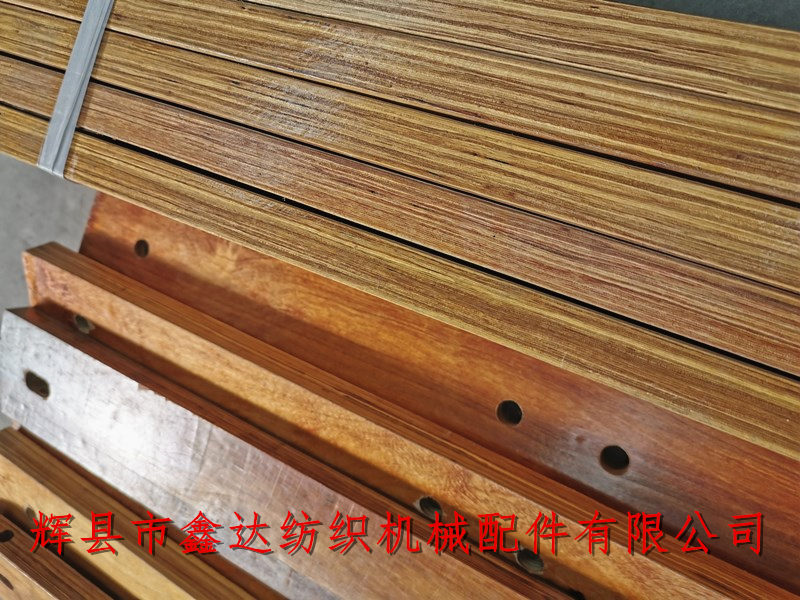

The side grain of the side plate of the loom can see how the compressed material and pressing density are. The product is generally stored in dry condition, and the horizontal plane is placed horizontally, so as to prevent deformation and moisture expansion.Shuttle Loom Side Lever Plate 3302 And Q12,textile spare parts.

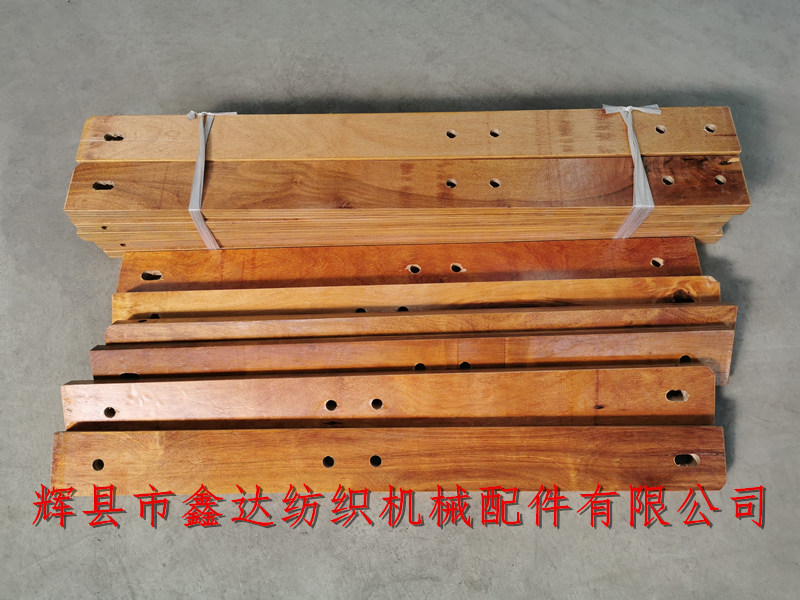

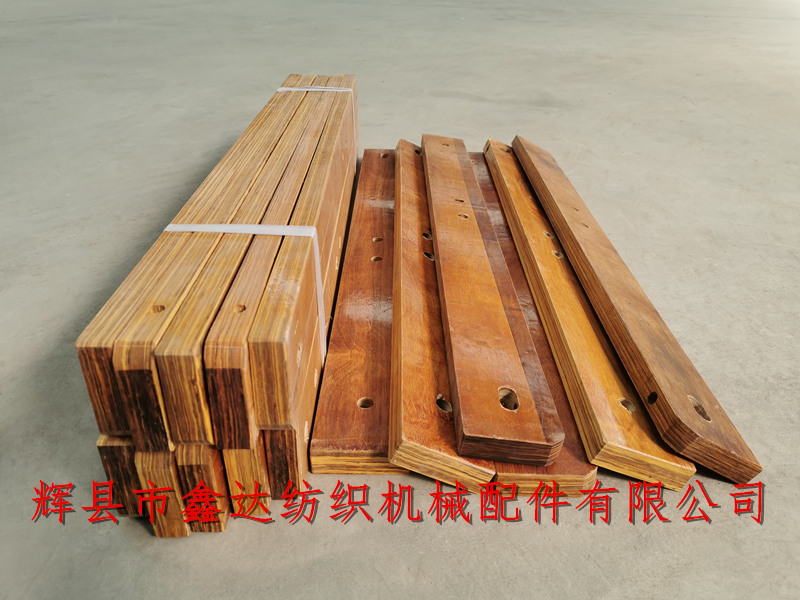

The side plate is usually packed in woven bags, 10 in each bundle, 20 or 30 in each bag. The oval hole is used to install f116 side plate clamp and F117 sizing nut, which are used in combination with the buffer spring plate of the loom.
The starting quantity of the textile side plate, the side lever of the loom, and the textile wooden parts is 20 pieces, that is to say, it can meet a single package. The weight of the textile wooden parts 3302 is 1.7kg/piece, and the single weight of the side plate of the loom Q12 is about 1.5kg.
