Our company provides the 455 Sack weaving machine wooden shuttle (with red steel paper on three sides), which belongs to textile wooden parts. Its main material is Qinggang wood, with red steel paper on the bottom and two sides. The 455 shuttle has a scratch groove similar to a washboard inside, mainly used for equipment in the burlap machine. The burlap machine, also known as the burlap weaving machine, is a type of textile machinery. The burlap fabric is composed of a warp and weft structure with thicker yarn branches, and requires a shuttle with a large yarn capacity (widened or lengthened).
The detailed parameter dimensions of the shuttle of the burlap loom are: total length of 455mm, bottom outer width of 50mm, total height of 40.4mm, inner hole diameter of the porcelain eye of 8.2mm, and inner cavity width of the shuttle body of 36.5mm.

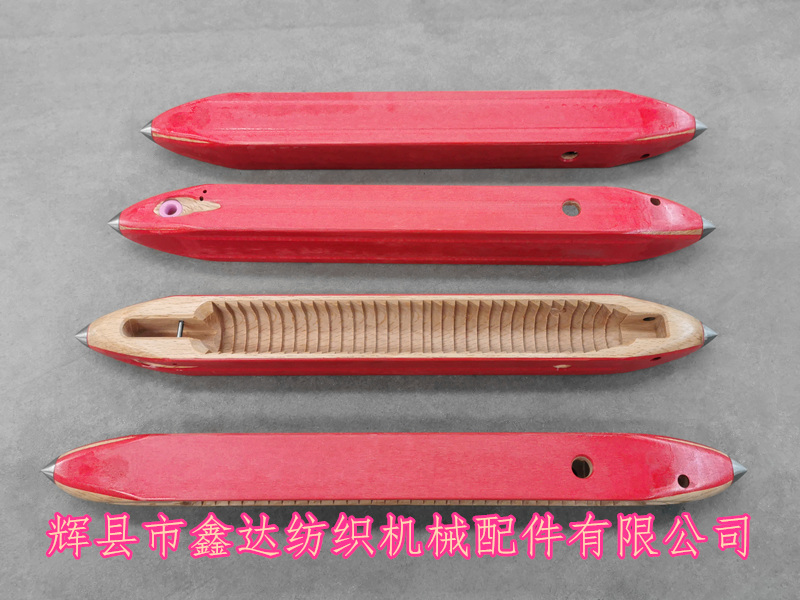

The above picture is a four sided view of the sack shuttle; There is a black iron cover plate installed above the shuttle (we do not provide it), and the connection method is: fixed with a wooden shuttle shaft. The individual weight of the shuttle is about 430 grams, and the number of internal grooves is 33.

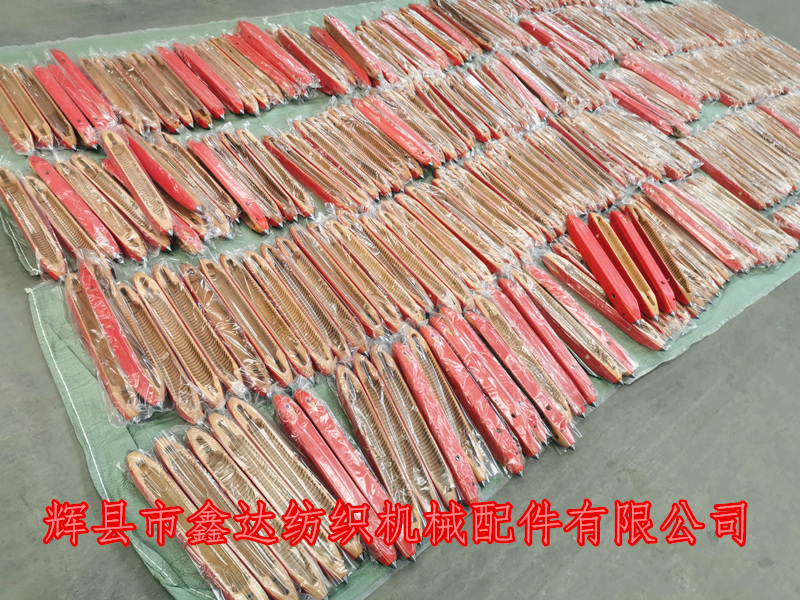

Packaging of textile machine sack shuttle: cardboard boxes, 38 pieces per box, minimum order quantity 300 pieces, normal delivery time is 65 days. The color of 455 bag weaving machine wooden shuttle and textile machine shuttle (with red steel paper on three sides): Generally, red is used. If other colors (green, white, brown) are required, please specify in the remarks.455*50*40.5mm Wooden Shuttle,Sack Weaving Machine,Wood Shuttle,Burlap Shuttle.
Textile Machinery Equipment - Extended Bag Shutters Don't Know Left or Right Hand. If you need to purchase wooden shuttles, 455 shuttles, textile machine shuttles, wooden parts, sack shuttles ,Burlap Loom Shuttle and other products, please contact Mr. Yang from our company for consultation.Textile wood products, We adhere to the business philosophy of "equality and mutual benefit, pragmatic and enterprising", and are dedicated to providing services to our customers. Welcome to consult.
