Huixian Xinda Textile Machinery Parts Co., Ltd. provides domestic shuttle textile accessories rubber sleeves/corrugated tubes/rubber sleeves 911167136, color: black. The total length of the rubber sleeve is 175mm, with the outer diameter of the big head being D=40mm and the outer diameter of the small head being D=27mm. It belongs to the textile rubber sleeve category and is a domestic shuttle textile accessory. The minimum order quantity is 100 pieces, and the delivery time is within 10 days after payment is received.
19 # (911 167 136, shock absorber sleeve, impact sleeve, buffer sleeve) The black rubber sleeve has a corrugated shape and an overall thickness of 2mm. The sheet shuttle textile accessories are mainly made of steel, supplemented by rubber, plastic, copper, and ceramic parts.

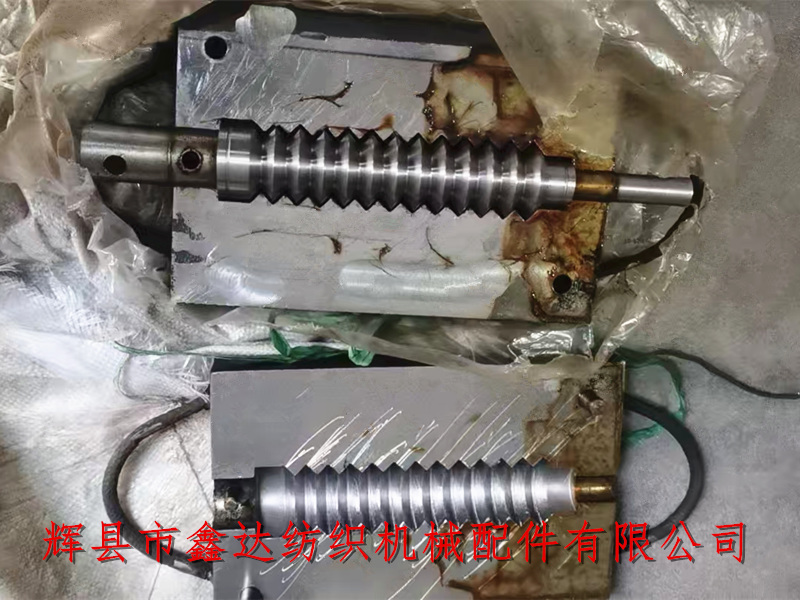

The above figure is the mold component view I of the rubber sleeve, and the following figure is the comparison diagram II measured with a ruler. The English name of the corrugated sleeve/corrugated tube/rubber sleeve 911167136 is: Shocker， Domestic rubber sleeves can replace the original components for use.

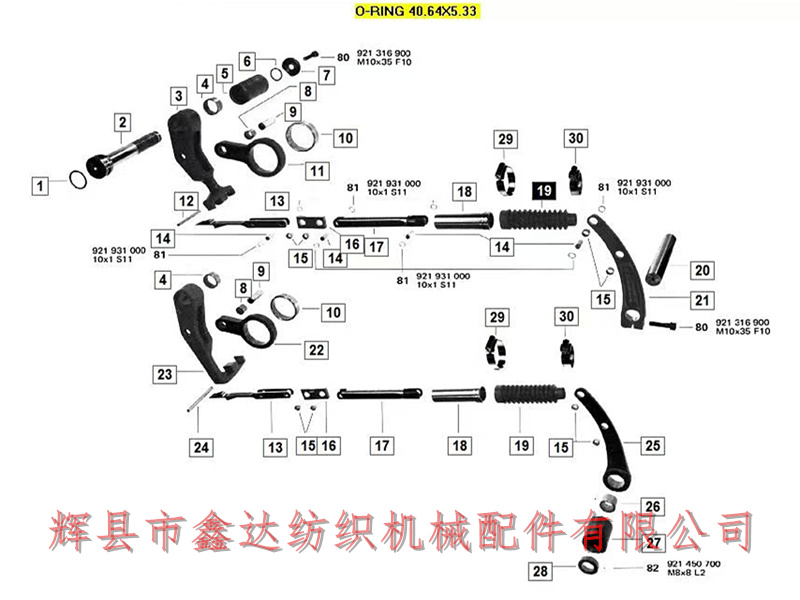

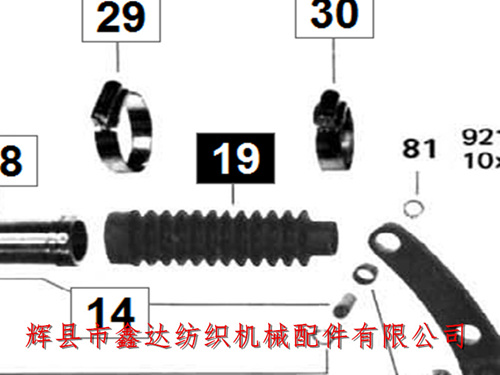

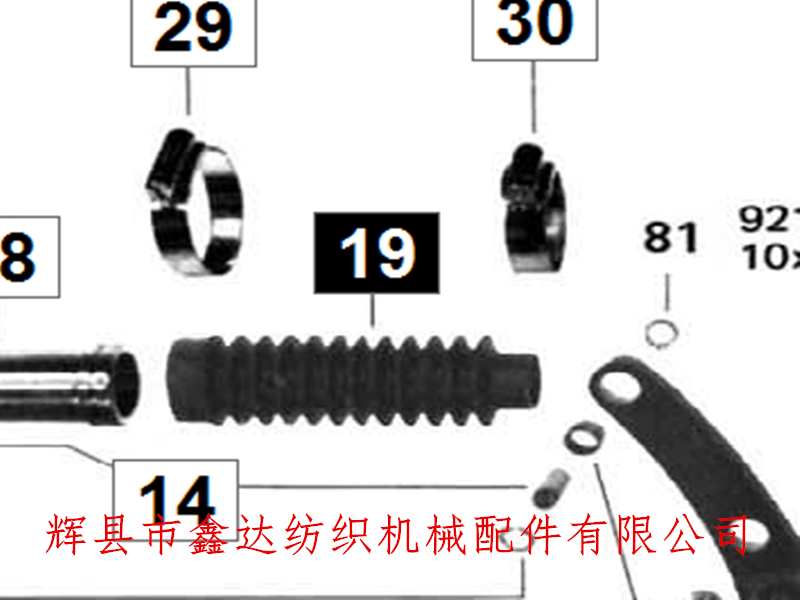

The installation diagram of rubber sleeve/corrugated tube/rubber sleeve 911167136 for sheet shuttle textile accessories is as follows:
Packaging: Transparent self sealing bags, 2 pieces per bag. If you need to purchase shuttle accessories, rubber sleeves, corrugated tubes, textile accessories, rubber sleeves and other products, please contact Mr. Yang from our company for consultation.
