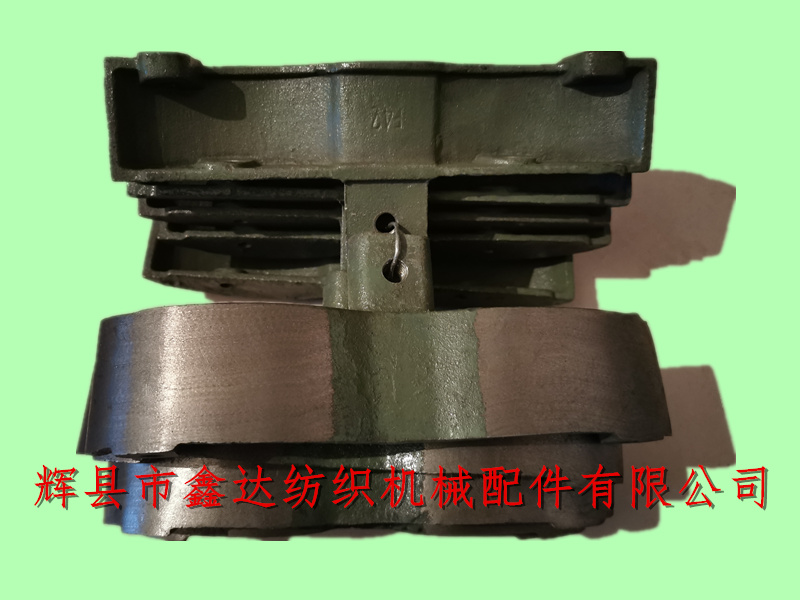

Loom single eyelet apron sliding box F42 and F43 are used on 1511 textile machine. Textile Leather Apron Sliding Box F42,Two big dragons (reed frame wood) are installed at both ends, that is, four are used for each loom. They are made of HT gray iron and connected with f44 bottom plate and f00-2 / 3 bottom plate bracket. The color of apron sliding box is green, which is fixed and installed by three bolts and two countersunk wood screws.
The distance between the two adjacent F42 and F43 is 21mm, and the allowable difference is ± 1mm. They are 11-12mm away from the foot of the bottom plate. R00-1 cushion apron is installed on the outside. Since the apron moves horizontally on the surface of F42 and F43, it is called the apron sliding box.Textile Leather Apron Sliding Box F42.

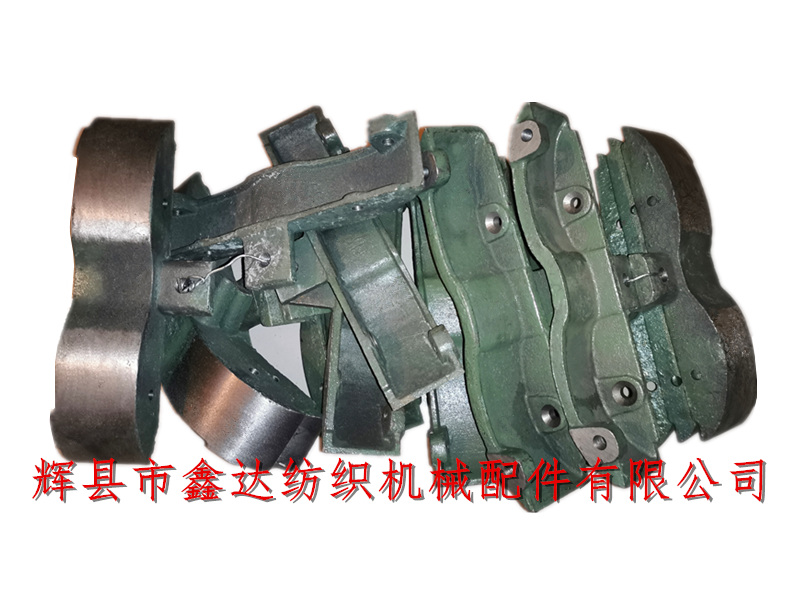

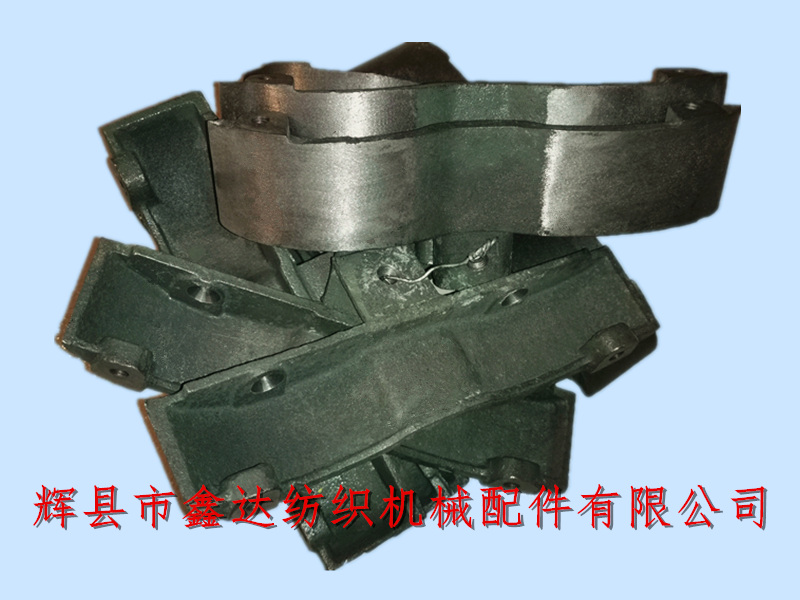

Package is woven bag, each string has 10 pieces. Specification requirements: when installed, it is used with f44 bottom plate with 343 mm length. We provide various sliding box components for shuttle 44 loom sliding box, 1511 apron sliding box and single beam 56 inch loom. F45 and F46 are divided into E1 and E2 specifications respectively, and the difference lies in the distance between ear and friction surface.
1511 sliding box, loom F42,Textile Leather Apron Sliding Box F42, monocular sliding box 44 inch accessories - provided by Huixian Xinda Textile Machinery Accessories Co., Ltd., we uphold the business philosophy of "integrity management", welcome customers from all over the world to contact and cooperate!
