Textile Wooden Parts
150 Fiberglass Wood Weft Tube 02 Type
150 Fiberglass Wood Weft Tube 02 Type time:2022-10-18 09:14:04 click:11283 keywords:Weft Tube,Fiberglass Tube,Textile Wooden Parts
description:

Huixian Xinda Textile Machinery Parts Co., Ltd. provides 150 glass fiber wood weft tube 02 type weft tube woven machine parts in a short term. The quantity on hand is 1000 pieces. The color is black. The bottom of the weft tube is inlaid with copper hoop. It belongs to a straight neck thick tube, with a total length of 150mm, a big head outer diameter of 27mm, an inner hole of 16mm, a single slot. The outer diameter of the straight neck is 20mm, and the length is 7mm; The inner diameter of the upper small end is 5.3mm. This type of weft tube can be used together with the 02 type weft winding machine spindle, and is suitable for the use of glass fiber loom shuttle.

02 type spindle of weft winder and 150 wooden weft tube

The spindle in the above figure is a 1202 type winding machine spindle. The outer diameter of the middle position of the weft tube is 16.5 mm. The weft detecting slot is impermeable and suitable for use with a 343 mm (13.5 inch) glass fiber shuttle. Xinda woven machine has a complete range of accessories, and special models and specifications can support customized processing.

Textile machine material 150 weft tube 02 weft tube accessories

Textile yarn tubes (weft tubes, weft tubes), wooden accessories of shuttle looms, and textile wood products are designed according to the characteristics of fabric materials, usually to increase their service life and anti-static design. All kinds of loom accessories can be borrowed from each other when the loom is refitted, so that a limited range of appropriate assembly can be achieved.

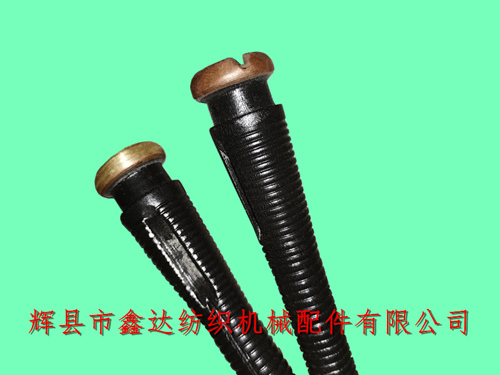

150 weft bobbin woven fiberglass wood weft bobbin

The length of the longer wooden quill in the above figure is 170mm, which is suitable for 14.5 inch (368mm or 370mm) fiberglass shuttle; When the 150mm wooden weft tube is installed on the 02 spindle (see the left side of the figure above), the spindle tip will penetrate, but it will not affect the normal use. This is because the design of the weft tube is short. This kind of wooden weft tube products (woven machine material accessories) are mainly used for weaving special fabrics.

Fiberglass accessories_ 150 weft tube_ Textile wooden accessories

The minimum order quantity of 150 wooden weft tubes is 1000 pieces, and the delivery time is 5-7 days after the payment is received. If you need to purchase loom weft tubes, wooden weft tubes, weft tubes, loom equipment, glass fiber accessories and other products, please contact Mr. Yang of Xinda Textile Accessories for negotiation!
