Textile Equipment
Warping Porcelain Boat Porcelain Combing
Warping Porcelain Boat Porcelain Combing time:2022-07-09 08:50:53 click:6354 keywords:Warping Porcelain Boat,Porcelain Combing,Warping Machine Parts
description:

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides Warping Porcelain Boat Porcelain Combing . The products of Warping Machine Parts can be matched with old 1452 warping machine, GA2180, GD208, GA278 and other models of high-speed split warping machine. The porcelain boat is also known as porcelain rabbit, which is divided into left hand and right hand, and is fixed on the yarn frame column with a diameter of 18mm; The porcelain comb, also known as the five eye plate, is fixed horizontally on the outside of the yarn frame. It has five hook teeth, which are used to comb the warp direction.

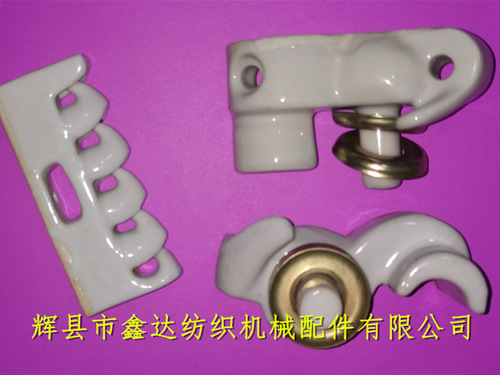

Textile ceramic accessories porcelain boat porcelain comb and tension disc

The left side of the figure above is a porcelain comb (five eye plate), and the right side is a porcelain boat (porcelain rabbit) equipped with a tension disc. They are all ceramic accessories (white porcelain) of textile machines, which are processed in a kiln. The surface is coated with porcelain glaze, which is bright and bright, which can effectively ensure that the warp yarn will not be damaged in the process of yarn guide or wire guide.

Textile porcelain boat_ Textile porcelain rabbit_ Warping machine accessories

The two porcelain boats in the above figure are a pair, i.e. one left hand (above the picture) and one right hand (below the picture). The packaging is carton, and each carton has 135 pieces in the same hand; The surface of the tension disc of the warping machine is processed by color galvanizing. The diameter of the middle round hole is 14.5mm and the outer diameter is 30.5mm. Two tension discs are used on each porcelain boat (porcelain rabbit). The lower tension disc is buckled and the upper tension disc is placed upright (see the figure below).

Textile porcelain rabbit five eye plate porcelain parts

The overall length of the porcelain boat (porcelain rabbit) is 82.3mm, the width is 45mm, and the height is 48.5mm; The diameter of the upper round porcelain column is 12.4mm and the height is 26mm; The overall dimensions of the textile porcelain comb (five eye plate): the total length is 78.6mm, the width is 34.5mm, the thickness is 15.4mm, and the long hole of the middle fixing screw is 18mmx7mm.

Textile porcelain_ Textile porcelain boat_ Porcelain rabbit five eye plate

Textile porcelain boat, porcelain comb warping machine, porcelain rabbit five eye plate and tension disc accessories are widely used in weaving auxiliary machinery. If you need to purchase textile porcelain boat, textile porcelain comb, textile porcelain rabbit, textile five eye plate, textile tension disc, warping machine accessories and other products, please contact Mr. Yang of our company for consultation!
