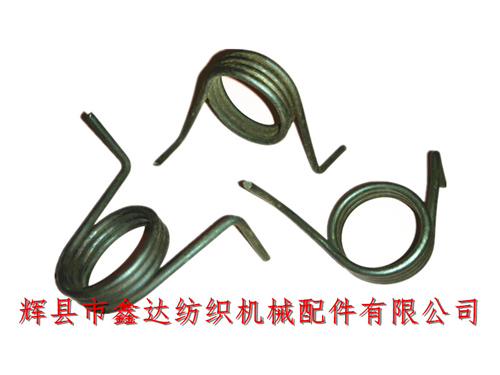

Our company supplies GA615 Front Snap Guard Spring 3321/3322 all year round. The textile machine torsion spring 3321 (or 3322) is installed on the loom 3314 front brake rail for the reset of the loom front brake rail when changing the shuttle. The textile torsion spring 3321 is processed with spring steel wire with a diameter of 2.5mm. There are 90 ° bends on both sides of the spring body. The spring body is 1 cm thick and wound in four circles. Each loom uses one spring.
Type 1515 loom can also use 3321 / 3322 front brake rail torsion springs, which are general parts, but can not be applied to type 1511 narrow loom. The inner diameter of the front brake rail torsion spring is 24mm.
Textile machine springs 3321 and 3322 constitute left and right hands. They are distinguished according to the rotation direction of spring steel wire. 3321 is counterclockwise and 3322 is clockwise.
GA615 loom torsion spring, leaf spring, tension spring, snap spring and other accessories have a variety of types. In addition, our company also provides batch customization business of various GA615 torsion springs and springs with special specifications. We welcome samples or drawings for processing and production.
