Huixian Xinda Textile Machinery Parts Co., Ltd. provides year-round customized services for stainless steel mesh machine shuttles, Wooden Shuttle For Net Weaving Machine,380 wooden shuttles, and various models and specifications of red steel paper shuttles are customized by textile machine wooden shuttles manufacturers. The overall dimensions of stainless steel mesh shuttles are: a total length of 380mm, an external width of 38mm at the bottom of the shuttle, a height of 23.5mm, a total length of 283.5mm in the inner cavity of the shuttle body, a length of 40mm occupied by the tail of the shuttle core and the shuttle spring, and a reserved space of 43mm for the front wire guide device, The width is 19mm, the depth is 15mm, and the side opening position is used for installing the configuration iron.
The shuttle core used in the 380 mesh machine shuttle adopts a cracked design. There are semicircular iron pliers on both sides of the shuttle core to fix the winding tubes in the shuttle cavity, and the shuttle tip is fixed with nut pads. The width of the slide groove where the shuttle core is installed is 9.5mm. Due to the decreasing inventory of compressed wood materials year by year, there is currently no whole compressed material available, and it is necessary to use splicing materials to produce and process wooden shuttles.

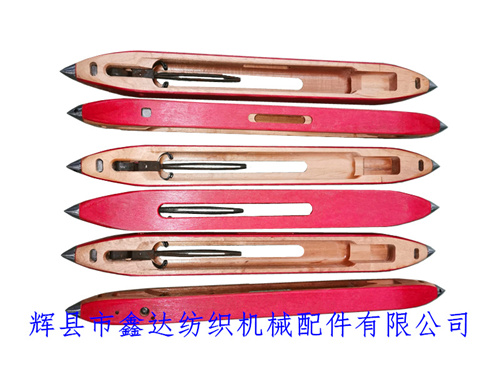

The red steel paper wooden shuttle has good wear resistance and impact resistance, and its texture is hard. The proportion of compressed wood material is relatively large compared to green granite wood. The inner width of the bottom slide of this red steel paper shuttle is 12mm, and the total length is 147mm. It is used to extend fingers to support the shuttle core and winding tube, making it easy to replace the filling tube.Shuttle,Wooden Shuttle,Net Weaving Machine,Wooden Shuttle For Net Weaving Machine.
The pin screws used by the wooden shuttle manufacturer to produce the 380 mesh shuttle are square, as shown in the bottom of the slotted side of the red steel paper shuttle. This shuttle is not divided into left and right hands, and its two sides are at a 90 degree angle (right angle) to the shuttle bottom. The three sides (two sides+bottom surface) are pasted with red steel paper.
The minimum order quantity for 380mm*38mm*23.5mm wooden shuttles is 300 pieces, with a delivery time of 60-65 days. The packaging is in cardboard boxes, with 96 pieces per box. The weight of a single shuttle is approximately 243 grams. Welcome textile wooden shuttle purchasers from various cities to contact Mr. Yang of our company for consultation or to understand the customized requirements for wooden shuttles. We provide long-term production and processing services for various types of irregular loom shuttles!
