Xinda Textile machinery accessories provides GA615 loom accessories - weaving shaft supporting feet 3432/3433B.Textile Bracket For Warp Beam 3432/3433B ,Textile accessories 3432 or 3433 are divided into type B and type h. type B is an S-shaped weaving shaft supporting foot, type H is a triangular weaving shaft supporting foot, and type 3432B and 3433B,Textile Bracket For Warp Beam 3432/3433B are generally used with a 550mm (diameter) warp shaft disc. The weight of a single supporting foot is about 3kg.

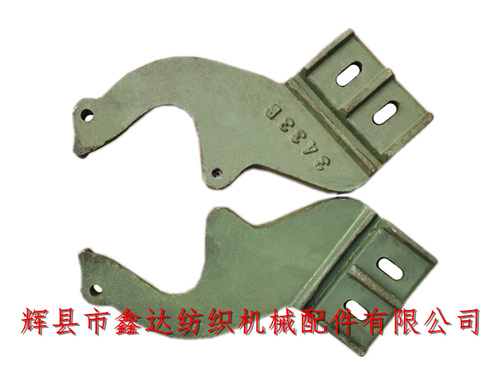

The supporting feet 3432B and 3433B of GA615 loom form left and right hands. The diameter of the shaft head for fixing B10 is 16mm, as shown in the above figure: 3433B on the lower left and 3432B on the lower right. They are fixed on the wall panel 4301/4302 of the loom.
As shown in the figure above, the diameter of the left screw hole is 13mm. 3432 is installed on the left side of the rear side of the loom. Similarly, 3433B is installed on the right side. Their material is gray pig iron (green paint) or ductile iron (red).
The number of textile accessories 3432/3433 used on GA615 or 1515 looms is one each, and the chute hole is used to adjust the height of the weaving shaft of the loom. They are cast iron accessories of the textile machine and pig iron parts of the shuttle loom. The weaving shaft supporting feet of wide loom belong to general accessories, and machines with different reed widths can be borrowed.
The semicircular position of textile accessories 3432B, loom accessories 3433b and GA615 weaving shaft supporting feet is in contact with the weaving shaft coil, and the S-shape can increase its bearing strength. Please strictly follow the operation process when disassembling the weaving shaft of the loom, otherwise the weaving shaft supporting feet may be damaged.
