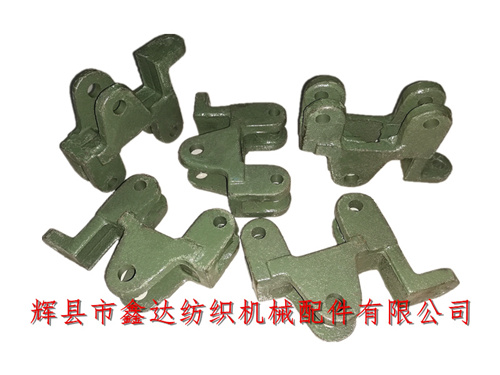

Huixian Xinda Textile Machinery Accessories Co., Ltd. specializes in providing SJ-28 machine let off accessories.SJ28 External Let Off Spare Part Buffer Foot, The buffer foot has shuttle weaving machine parts. The total length of SJ-28 buffer foot is 10.3cm, the width is 8.5cm, the thickness is 4cm, the hole distance between the two ears on the same side is 75mm, and the hole distance between SJ-28 buffer foot and the upper single ear is 60mm. The material of SJ28 is HT15-33, regardless of left and right hands. It belongs to the external let off accessories of single beam and double beam looms, and its shape is like a saddle.
The inner diameter of the four circular holes under SJ-28 (as shown in the above figure) of textile machinery accessories is 10mm, and the diameter of the two circular holes on the upper part is 12mm. Fix SJ-30 buffer screw, and each loom uses one SJ-28 buffer foot. As an important part of the let off mechanism, the cushion foot part of weaving machine is common to shuttle looms such as 1511, 1515 and GA615 and GA74 series rapier looms.
SJ series external let off accessories include SJ-01 tension spring screw, SJ02 tension spring, SJ03 tension spring sleeve, SJ04 let off stub shaft, SJ05R/L tension shaft bracket, SJ06 locating ring, SJ-07 tension frame and other accessories. SJ-28 buffer feet are packed in 10 in each string, and the weight of a single accessory is about 0.7kg.
The external let off device of 1515 loom has mature design and stable and reliable operation. The inner width of the small ear clamping groove of textile machine part SJ-28 is 1.3cm, and the inner width of the large ear clamping groove is 24.3mm. SJ28 External Let Off Spare Parts Buffer Foot,There are thousands of types of shuttle loom parts. There are different specifications of looms, different types of looms and specially modified looms in China. After decades of continuous optimization, improvement and assembly, Still serving textile enterprises.
Xinda Textile accessories is specialized in the sales of textile accessories for many years. It operates textile machine general accessories, common textile equipment, special loom equipment and other products. We undertake the purchase orders of accessories of textile enterprises at home and abroad.External Let Off,Buffer Foot,Shuttle Loom Parts, The technology and process are relatively mature. All textile customers are welcome to contact Mr. Yang of our company to consult the details of warp delivery, buffer foot and weaving machine parts!
