Huixian Xinda Textile Machinery Parts Co., Ltd. provides Sulzer RU-Brake Cover Spring 911316839, Sulzer parts shuttle chain cover clip spring clip 911316839, English name: RU Blake Cover Spring. There are various specifications of shuttle chain cover clip (spring clip): 911316839 (L=30mm), 911316843 (L=15mm), 911331217 (AL-RU), 911331658 (K2, AL-RU), 911331398 (L=15mm), 911231145 (D1), 911131427 (D12, D2, K2), etc.
The width of the 911 316 839/911 331 217 shuttle chain spring clip is 30mm, and the total length is 32mm. The Sulzer accessory shuttle chain cover plate clip spring clip 911316839- the outer diameter of the spool position is 5.7mm, and the overall thickness of the cover plate clip is 0.8mm.

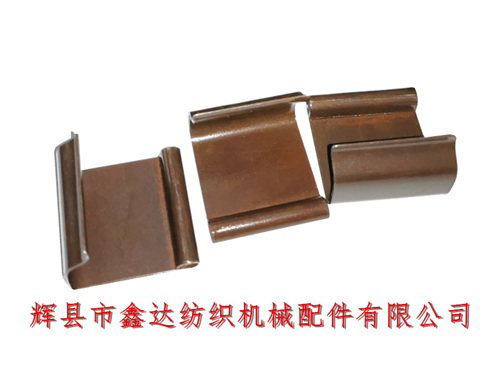

Due to the large size of the image, there may be some color differences after reducing the resolution. The above picture was taken of a physical object.
The shuttle chain cover clip belongs to the shuttle feeding/receiving component of Sulzer shuttle machine. It is made of spring steel (65Mn) and packaged in 25 pieces/bag after multiple stamping processes. If you need to purchase P7100 spring clip, D1 cover plate, D2 clip, TW Sulzer accessories, textile hardware accessories and other products, please contact Mr. Yang from "Xinda Textile Machinery Parts in Huixian City" for consultation.
