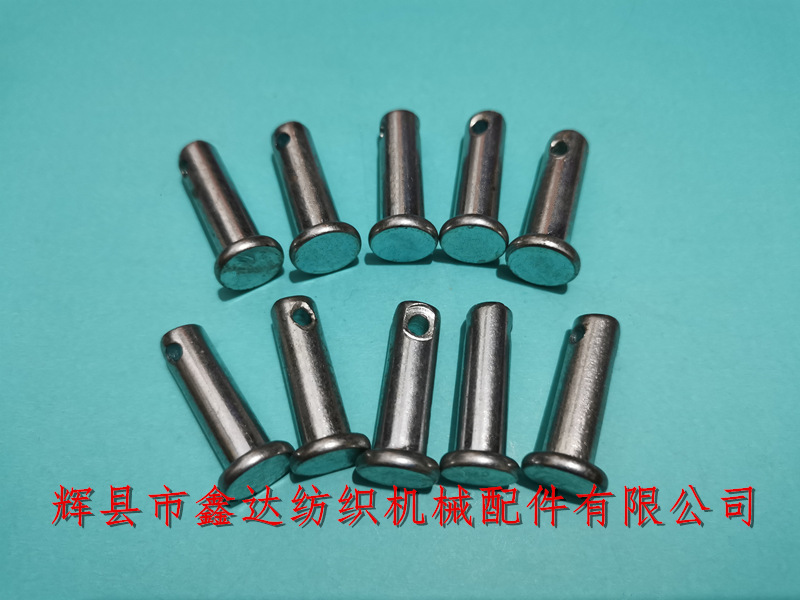

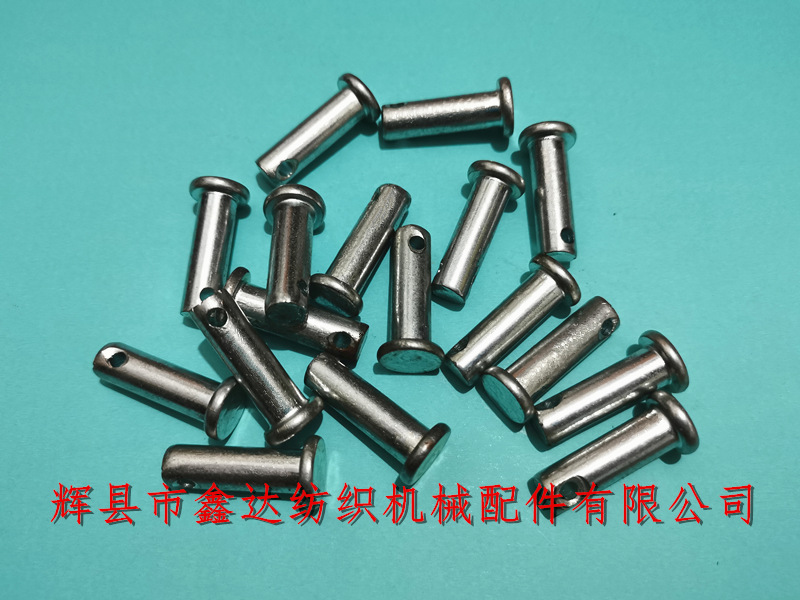

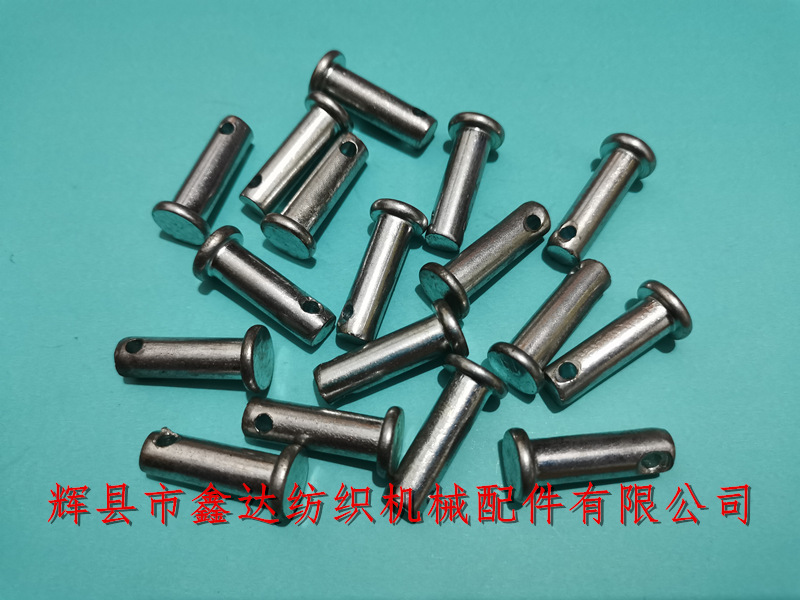

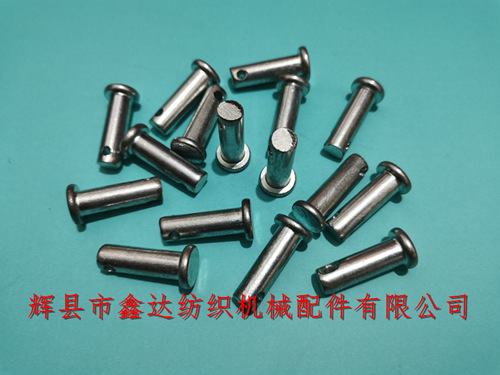

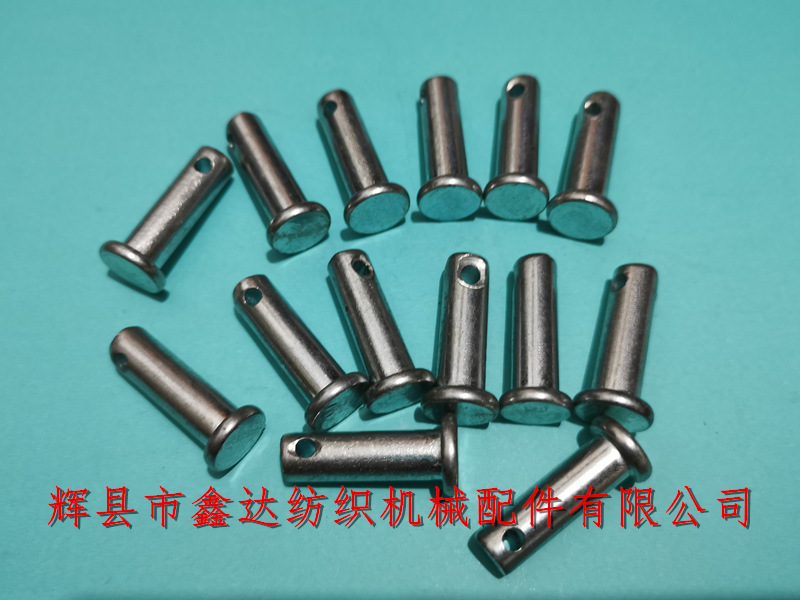

Our company provides 1511/1515 loom parts, warp break stop O27 angle cap bolt, 44 loom warp break stop angle cap bolt O27 belongs to textile hardware accessories, its tail diameter is 12.5mm, and its thickness is 2.5mm; The bolt body length of O27 angle cap bolt is 25mm, the diameter is 8mm, and the inner diameter of the front pin hole is 3.4mm; The total length of the angle cap bolt O27 is 2.8 cm, which is mainly used to connect the swing rod o16 and the angle cap o17. The number of bolts used in each loom is 1.
The material of the O27 corner cap bolt of the loom is A3, which is processed by forging and stamping process. The surface is galvanized, and the color is silver white. The bolt hole position is the fixed position of the support bolt of the o16 swing rod.
Corner cap bolt, also known as "corner cap bolt", is a general accessory (hardware) of 1511 and 1515 looms, which can be borrowed from each other. The packaging adopts transparent bags, 200 per bag, with a minimum order of 10. Spindle, pin shaft and pin bolt are common in the connecting parts of loom, which play an important role in the transmission of loom.
After the bolt for O27 corner cap of textile hardware accessories is installed, it is necessary to check the flexibility of its two dual parts to ensure smooth rotation. The hardware used in part o mainly includes O20 warp break stop rod screw core, O22 combined rod screw core, O23 warp break connecting rod connecting bolt, O25 connecting rod screw core, O26 connecting rod angle cap screw core, O32 warp stop frame middle partition, O104 fork angle pivot cap screw core, etc.
If you need to buy loom hardware accessories, warp stop accessories, corner cap, corner cap bolt and other products, please contact Mr. Yang of our company for details! We have been selling shuttle textile hardware accessories for more than 20 years, always adhering to the business philosophy of "honest management, pragmatic and enterprising", and wholeheartedly providing services to our customers.
