Xinda Textile accessories provides customized services for weft pirns 01 and 02 (type 180mm) of textile equipment loom. 01 and 02 refer to weft winding machine spindles, which are the dual parts of textile weft tubes. The common spindles of weft winding machine include 01, 02 and 06, and their spindle tip lengths increase in turn, that is, the positioning sleeves in the inner holes of 01 weft tubes are relatively lower (near the neck of weft tubes), The positioning sleeve of type 02 weft bobbin is relatively upper (near the small end position above the weft bobbin). Type 180 refers to the length of the weft bobbin. The length range of the weft bobbin (also known as the bobbin) is generally 158mm-250mm, and type 180 is a common and widely used specification.
As shown in the above figure, the upper part of the picture is type 02 weft tube (180mm in length), and the lower part is thicker, which is type 01 weft tube; They all belong to circular arc-shaped (refers to the arc-shaped weft tubes at the neck). They are classified as textile equipment and are used by Cotton Looms in shuttle looms. The single weft tube of type 01 weighs about 35g.

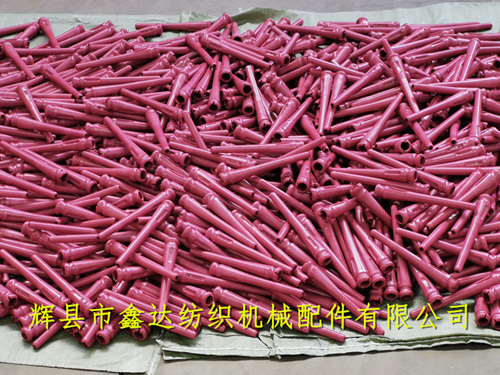

The two sides of weft tubes 01 and 02 (type 180) of textile equipment loom are provided with weft detecting grooves, which are divided into penetrating grooves and impervious grooves. The above figure shows the impervious products. The specific specifications are: 180mm, circular arc 01, impervious thick weft tubes. The products are packed in woven bags with 1000 pieces per bag.
The above figure is a 180mm, circular arc 02, slot tight weft tube. Textile machinery - the weft tube used by the loom is the weft carrier placed in the inner cavity of the shuttle, with a cone shape. They mainly provide stable output of weft from the upper part of the weft tube and reduce the occurrence of weft breaking. The positioning sleeve refers to the inner bushing, which is used to fix the spindle tip of the textile spindle, so that the high-speed rotating spindle rod and the weft tube can move synchronously. In the past, the positioning sleeve was a separate bushing embedded in the weft tube of the weaving machine, but now it is mostly made by one-piece injection molding, thus simplifying the production process of the textile weft tube.
Due to the influence of light and the restriction of the website on the photos, the pictures are compressed, and there are certain differences between the physical objects and the photos. If you need to purchase shuttle textile equipment, 180 weft tubes, 01 weft pirns and 02 weft tubes, please contact Mr. Yang of Xinda Textile accessories for negotiation.
