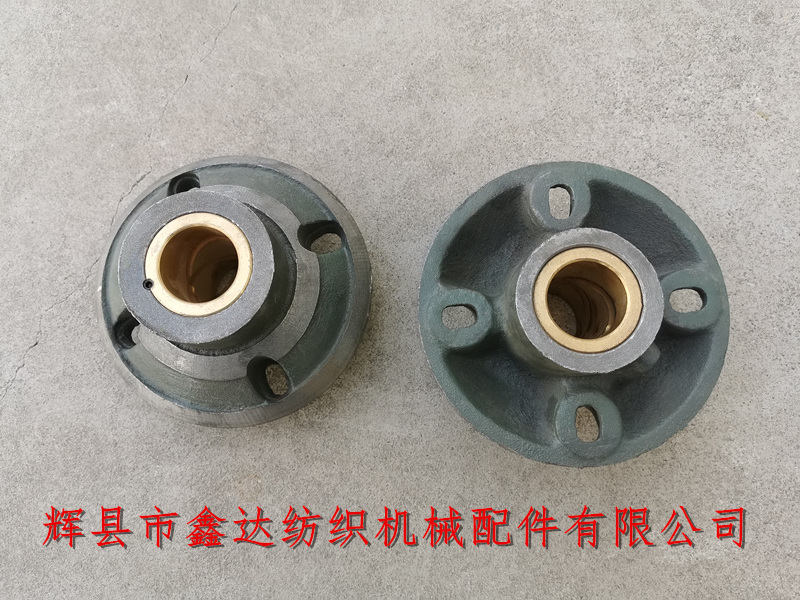

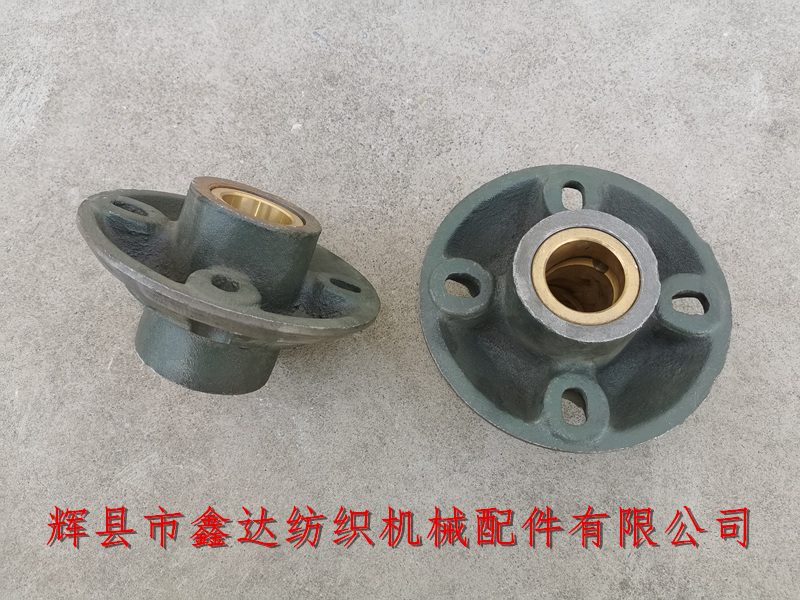

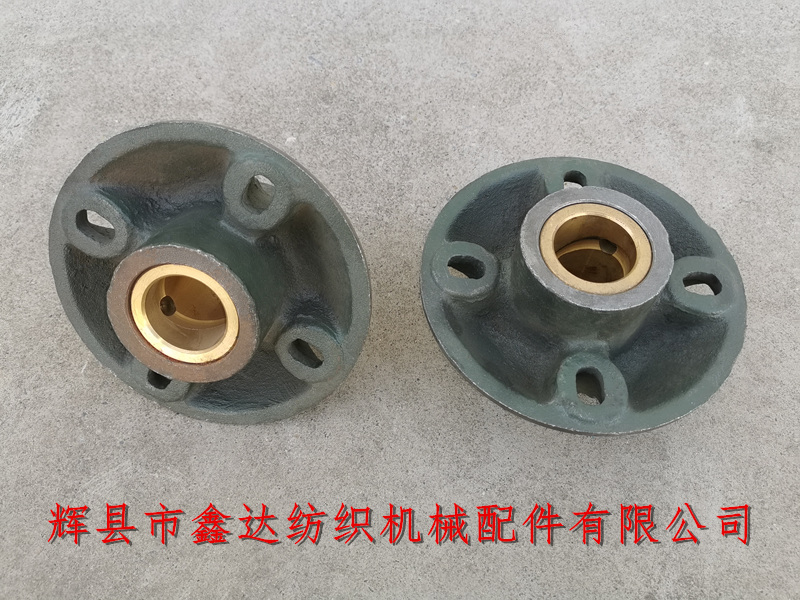

Huixian Xinda Textile Machinery Parts Co., Ltd. provides weaving machine spherical bearings (with copper sleeve) D00-1/0100-1 all year round. The weaving machine spherical bearing D22 can be combined with copper sleeve D23 or 0113. The D00-1 used in 1511 weaving machine is composed of D22+D23 (inner hole 38mm, outer diameter 52mm, length 95mm), copper sleeve 0113 (inner hole 40mm, outer diameter 52mm, length 95m) and D22, forming 0100-1, The number of spherical bearing combinations used for each 1511 spherical loom is 2 sets, while the number of combinations used for the 1515 model is 4 sets (2 sets for the crankshaft and 2 sets for the tread shaft).
The material of the spherical bearing D22 of the weaving machine is HT15-33 gray pig iron, with a total height of 95mm. During installation, use a fixed gauge and steel wire (or feeler gauge) to check the worn out length of the D22 shaft hole. If the shaft hole at the position of the pedal shaft is ground to a gourd shape, cone shape, or oval shape, and the gap should not exceed 0.2mm. For approximate roundness (replace sleeve E1), when the inner hole of the spherical bearing D22 is reamed to a full circle, use a larger E1 sleeve, and control the gap between the two within 0.15mm, At the same time, it is necessary to ensure that the surface roughness of the shaft hole and sleeve reaches 1.6, and to eliminate the rough part of the groove, so that the shaft can be calibrated flexibly and quickly.

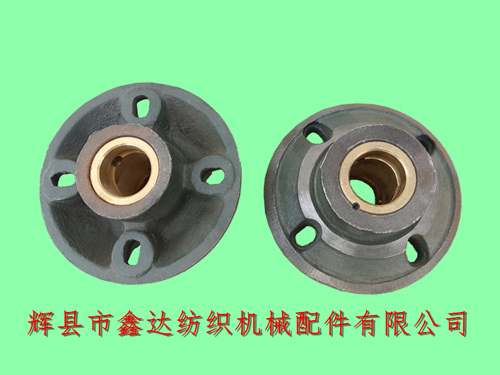

The connection between the D22 spherical bearing and the copper sleeve is fixed with a slotted wire (as shown in the above figure). Generally, hexagonal screws are used to ensure that the copper sleeve and the spherical bearing are integrated. Rapier machines generally use GA615 model 0100-2 (copper sleeve inner hole 42mm), and the difference between the three types of spherical bearing assemblies is only the diameter of the inner hole of the copper sleeve.
The function of weaving machine spherical bearings: mainly used to fix the bending shaft and tread shaft of the weaving machine. When installing, attention should be paid to the angle of the wall panels on both sides to ensure that the inner holes of the two copper sleeves are concentric. The minimum order quantity for weaving machine spherical bearings (with copper sleeves) D00-1/0100-1/0100-2 is 20 Sets. If you need to purchase spherical bearings, textile copper sleeves, weaving machine accessories, weaving machine bearings, and other products, please contact Mr. Yang of our company.
