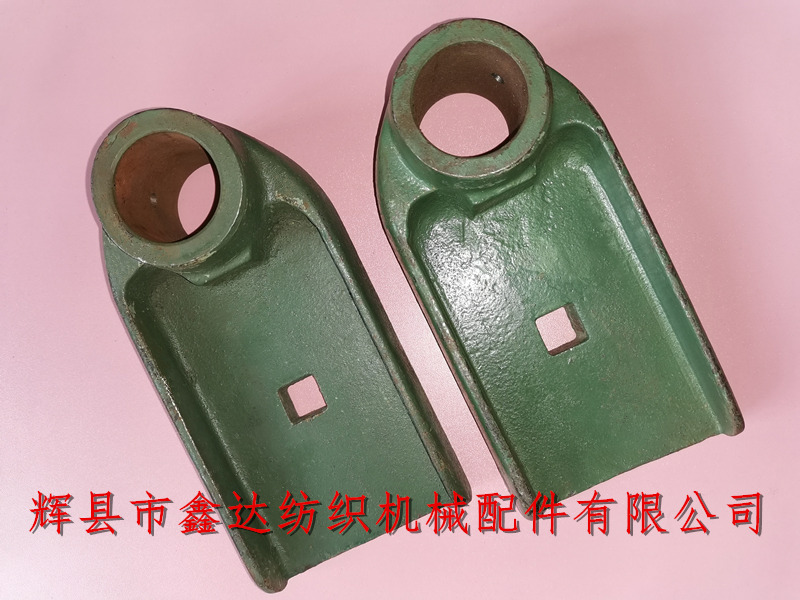

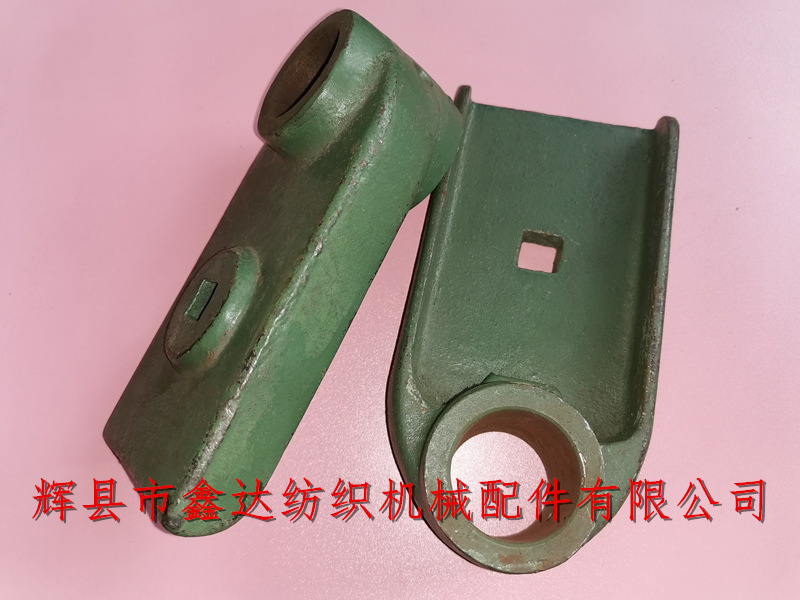

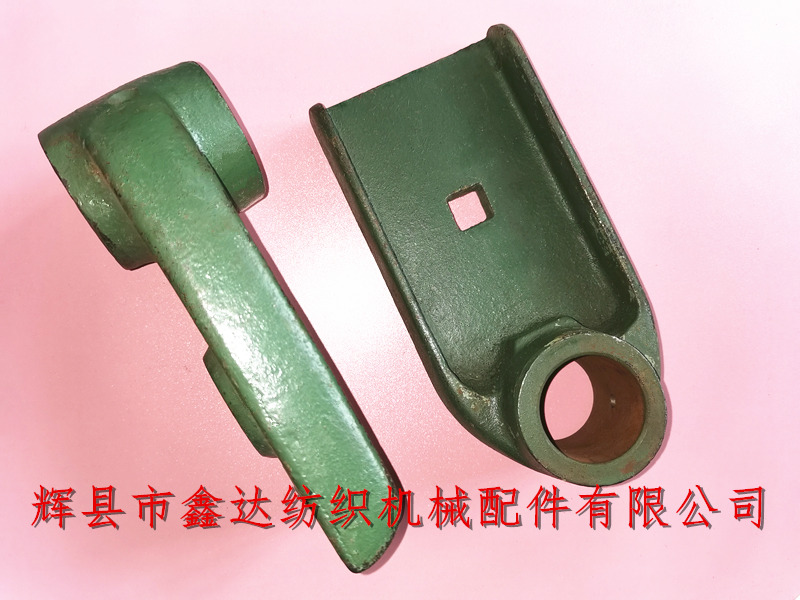

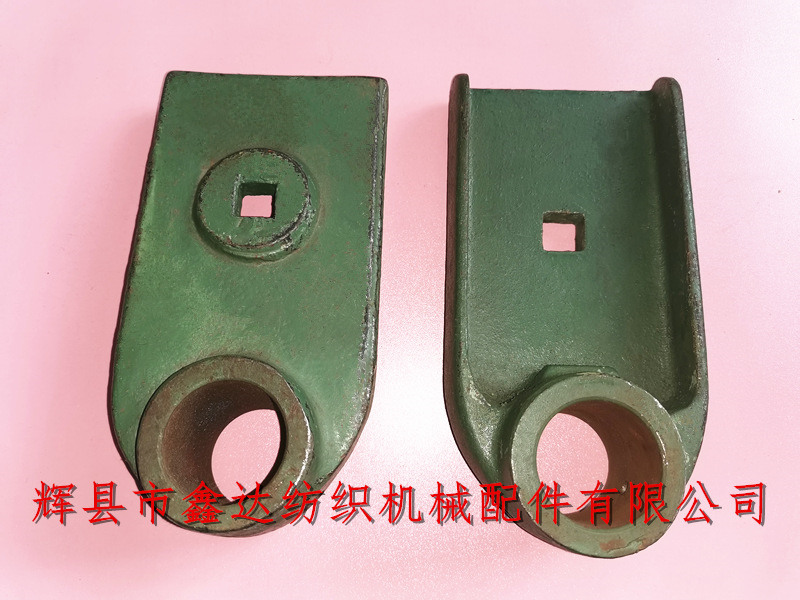

Huixian Xinda Textile machinery accessories specializes in providing 1511 textile machine accessories -Side Lever Cap F2 For 1511 Shuttle Loom, F2 loom single eye side plate cap spare parts, and textile machine lower rod foot cap accessories. F2 was divided into left and right according to the oil hole position, but now it is generally changed to double oil holes. The length of single eye side plate cap F2 is 176mm, the width is 91mm, the thickness is 57mm, and the inner hole diameter is 38mm.
Side plate cap, loom spare parts and monocular side plate cap are mainly used for the transmission of loom shuttle throwing power. They are installed outside the two wall panels of the loom and fixed on the F6 / F7 three eye support feet. Each loom uses 2 pieces.
1511 textile machine accessories include 42 inch, 44 inch, 52 Inch and 56 inch single beam loom components. The middle hole of the monocular side plate cap F2 fixes one end of the side plate through carriage screws. In addition, our company provides all kinds of textile side plate caps, loom spare parts, monocular side plate caps and other products for a long time.
The side plate cap of textile accessories is divided into monocular and binocular (Side Lever Cap F2 For 1511 Shuttle Loom), which is mainly designed according to the width of the loom door. The wide door loom uses the side plate cap of binocular, which can ensure the stability of shuttle throwing power output.
The weight of a single F2 side plate is about 1.5kg. According to different sanding molds, there will be a small deviation in the weight of loom spare parts, and the pig iron will shrink after sanding and cooling. The weight deviation is normal.
