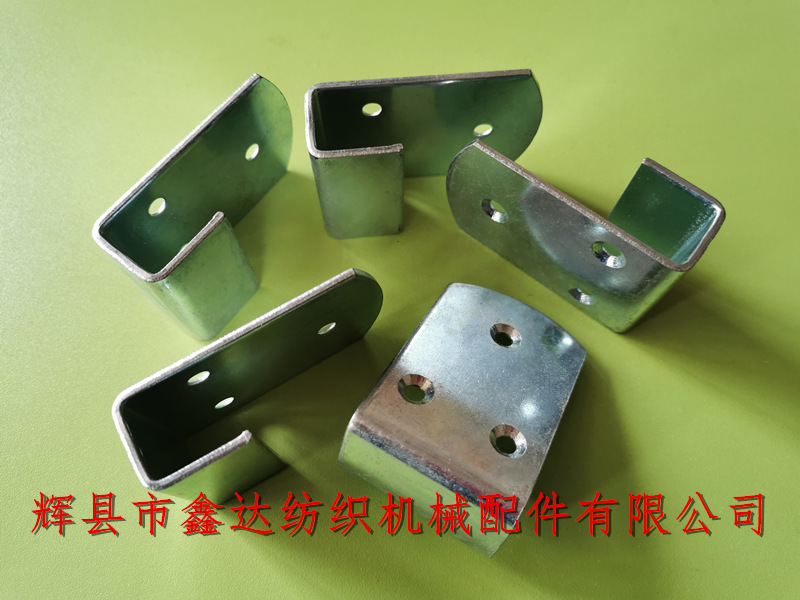

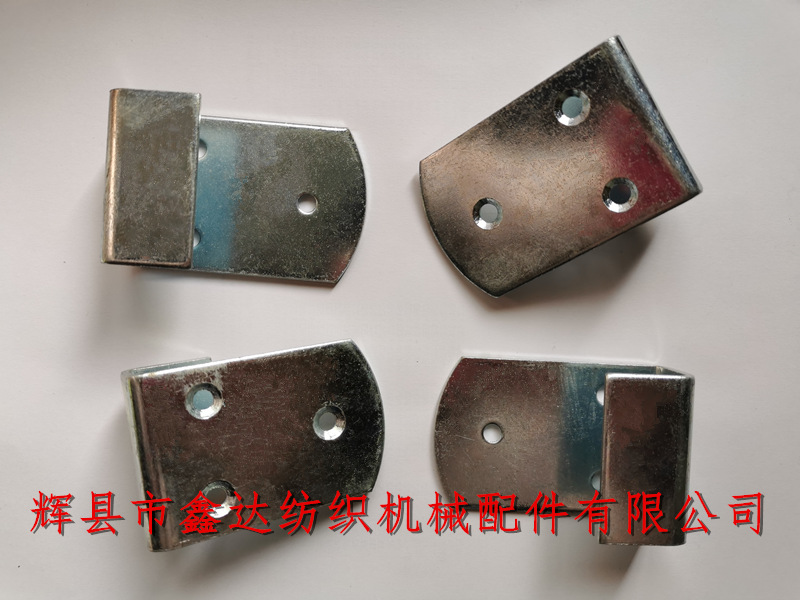

Our company provides shuttle textile wrapped iron, K88 textile accessories and shuttle box back plate K88 wrapped iron. The U-shaped wrapped iron wraps the shuttle box back plate tongue Q4 or 3304 on the loom. The overall dimensions of the wrapped iron are: length 66mm, width 44mm, thickness 23.2mm, width 18.5mm in the U slot and folding height 24mm. There are three 5mm wood screw fixing holes on the upper surface of K88 clad iron. The material is A3. It is formed by bending and stamping A3 plate with a thickness of 2.4mm.
K88 iron clad textile hardware can only be installed on the back plate side of the movable shuttle box, and can be applied to shuttle looms of models 1511, 1515, GA615, etc.
The main function of K88 textile accessories is to reduce the wear of the shuttle on the back plate tongue of the shuttle box and increase the resistance of the shuttle into the shuttle box. When installing the iron package, pay attention to check the flatness of the inner surface of the shuttle box.

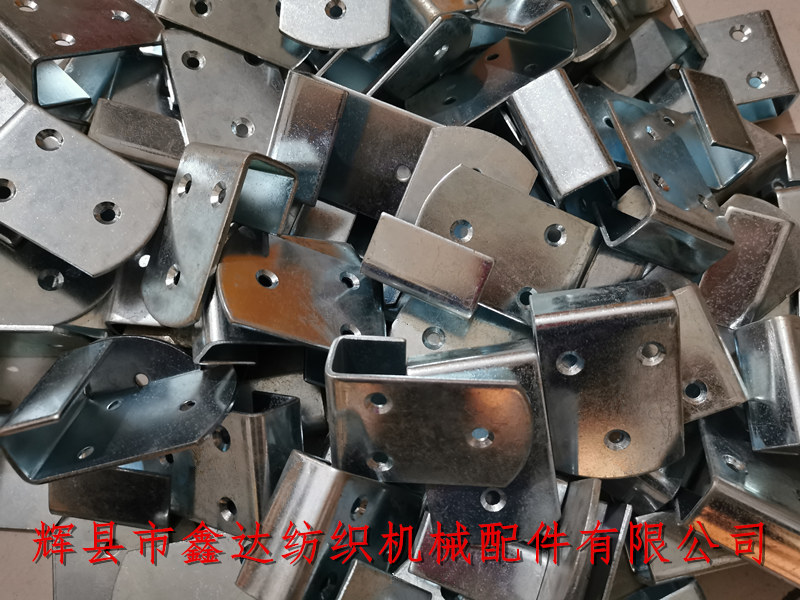

Textile accessories - K88 iron bag weighs about 0.08kg, and is packed in woven bags, 100 pieces / bag. Note: the code of some loom atlas is 3303. If you need to buy K88 coated iron (Textile Hardware galvanized products), please contact our company for consultation.
