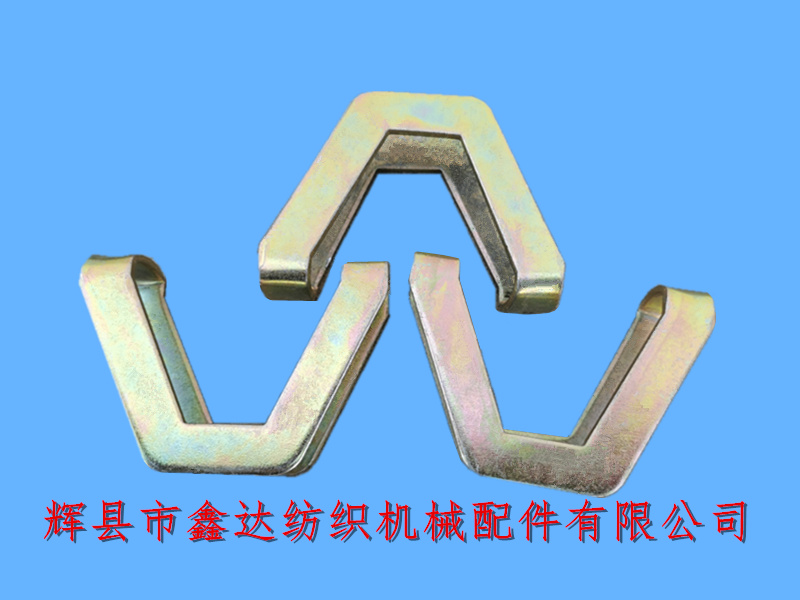

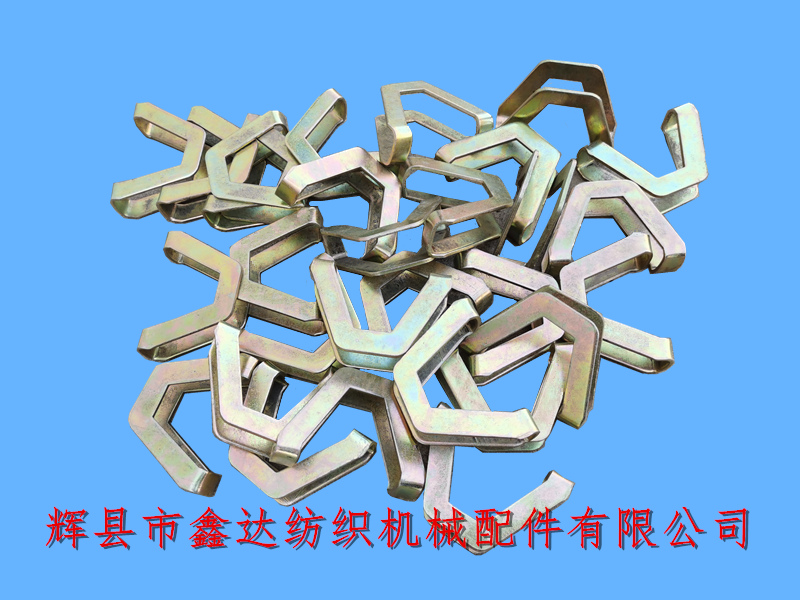

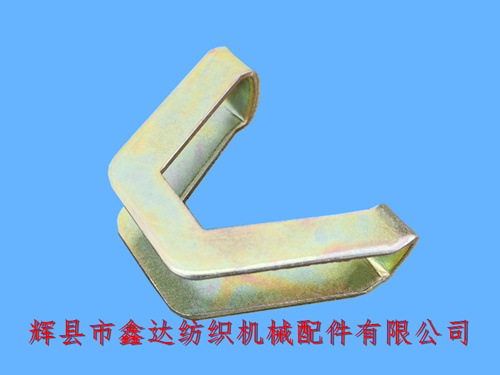

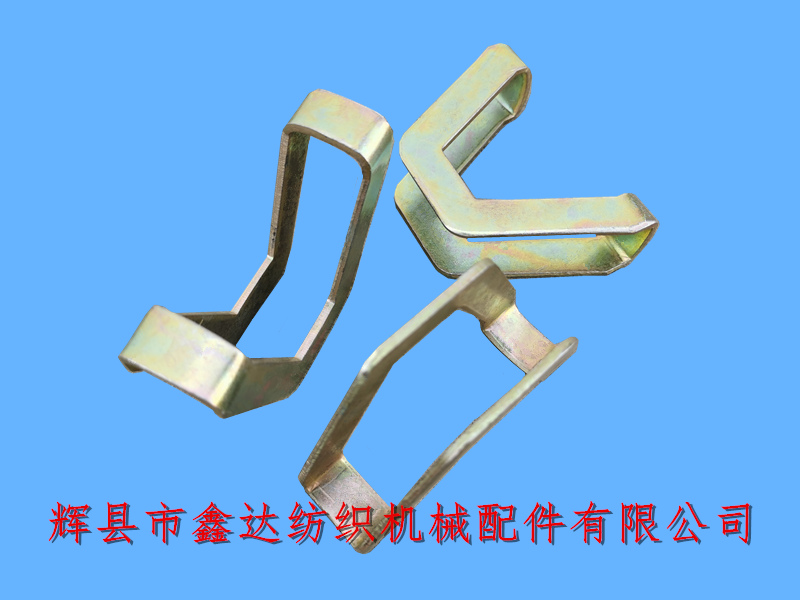

Huixian Xinda Textile Machinery Accessories has long provided 1511/1515/GA615 weaving machine accessories F116 side panel clips. The side panel clip F116 is named after it is used to fix the side panel skin R22. It is a universal accessory for 15111515 and GA615 weaving machines. The outer length of 1511 accessories, 1515 accessories, and GA615 weaving machine accessories F116 is 92mm, with a thickness of 34mm, and the material is QT40-10. One (i.e. 2) is installed below the outer side of each weaving machine's wall panel, It is connected to F117 clamp nut and R22 side panel for use.
Due to the shape of the F116 side panel clamp (referred to as the side panel clamp) resembling a saddle, it is often referred to as a "saddle". It is formed by multiple stamping processes, and the opening position has a certain degree of elasticity. Its main function is to clamp the F112 buffer belt for three-wheel buffering and stabilize the three-wheel buffering device.
The F116 side plate clamp is installed at one end of the loom side plate, near the machine foot of the shuttle rod (hitting rod) position. The shuttle device is one of the important components of the loom. If the adjustment is not accurate, it is easy to cause faults such as rolling shuttles and flying shuttles, which affects the normal operation of the loom equipment.
The surface of the textile hardware product F116 side panel clamp is coated with galvanized color zinc, which has certain rust prevention function. Loom General Parts F116 Side Lever Clamp,If customers from various cities need to purchase 1511 side panels, 1515 side panel clips, GA615 loom accessories, 1511 accessories, 1515 accessories and other products, they can contact our company staff for negotiation.
