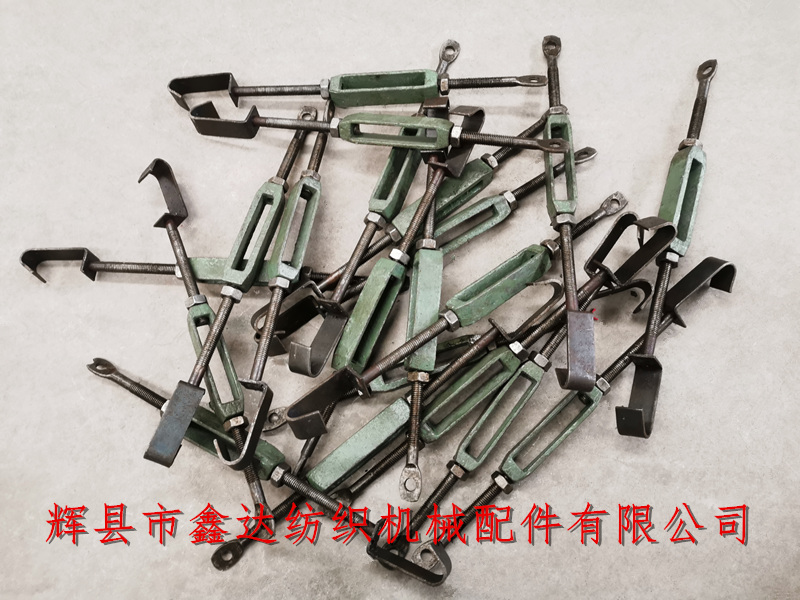

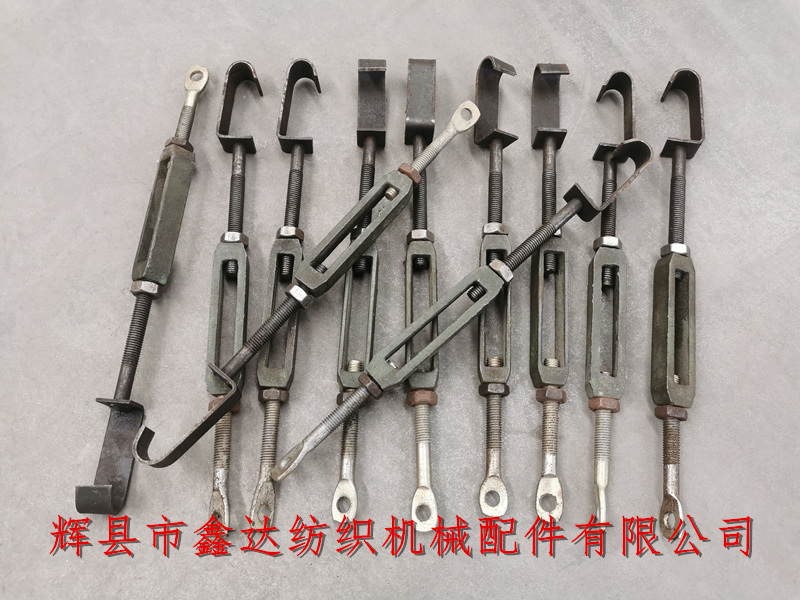

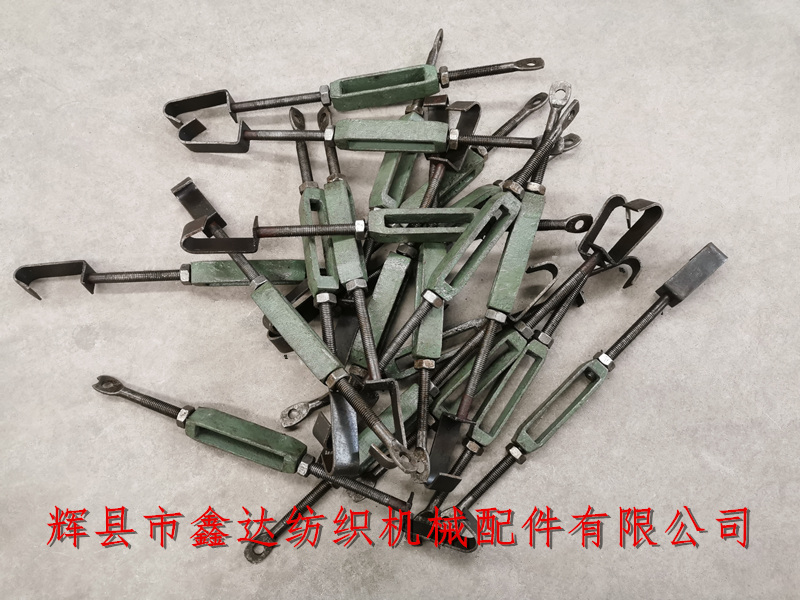

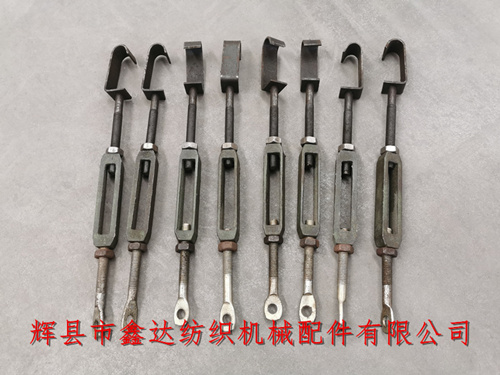

Huixian Xinda Textile Machinery Parts Co., Ltd. has been providing a complete set of 1515 Loom Sling Parts Upper Sling Hook for a long time. It is made up of 62-M006 lifting hook The M42 hanging basket and 3115 hanging screws are combined, and the thread of the screw is M10. The length of the center screw head of the connecting hole between the upper hanging screw 3115 and the hanging belt is 76mm. The length of the flat hook of the hanging hook is 59mm, and the length of the screw above is 10.5 centimeters.
The shape of the 1515 hanging hook is similar to that of the 1511 type assembly, but there are differences in the size of the external dimensions. The screw used in 1511 has a thickness of M8, while the 1515 weaving machine requires increased load-bearing capacity due to the wide door width, so the hanging hook screw on 1515 weaving machine is M10
This 1515 hanging heald hook is mainly used for weaving machines with plain weave configurations. The heald frame uses seamless flat tubes, and the number of heald frames per weaving machine is 2 pages. When using the 1515 hanging heald hook, the flat hook hooks down on the flat tube (heald tube), and the perforated screw above is suspended by the hanging heald. The power is provided by the peach shaped tread plate movement below the weaving machine.
The 1515 hanging harness hook belongs to the harness frame accessory of the weaving machine. The screw with a flat hook is a reverse thread, and the other end is a regular straight thread. If textile mills, cotton mills, and traders need to purchase accessories such as hanging heald hooks, hanging heald hooks, weaving machine accessories, and 1515 hanging heald hooks, please contact Mr. Yang from our company for consultation!
