The P7100 D1 gripper loom opener (mixed weft 911 119 254) is a lightweight opener for Sulzer gripper looms, with the English product name RH Opener MS D1 Light. Depending on the model of the gripper loom, there are various specifications of the opener. The overall dimensions (parameters) of the mixed weft 911119254 opener are: the total length is 132mm, the outer width is 18mm, the total thickness is 6mm, and the weight of a single opener is 70-74g. P7100 Projectile Opener MS D1 911119254, Feeder Opener,RH Opener,Projectile Loom Parts,Sulzer Part.

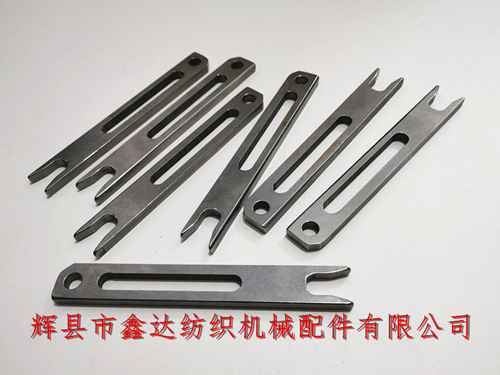

The difference between the two types of expansion devices in the above figure: the inner width of the left slide is 8mm, the inner length is 65.3mm, and the weight of a single expansion device is 74g; The inner width of the slide on the right side is 12mm, the inner length is 51.5mm, and the weight of a single spreader is 70g.
The expansion device for the mixed weft delivery machine is a commonly used accessory on Sulzer projectile looms. The front inner width of the front U-shaped fork is 13.5mm (wide slide) and 14mm (narrow slide), while the inner width of the U-shaped bottom is 10mm, and the depth of the U-shaped fork is 19.5mm.
The diameter of the circular hole at the tail of the 911 119 254 mixed weft extender is 8mm. The minimum order quantity for extenders of the same specification is 50pcs, and the outer packaging is a transparent self sealing bag. Under normal circumstances, the delivery time is generally 4-7 days. Welcome new and old customers both domestically and internationally to contact our company for detailed information on the parameters of the 911 119 254 extender. Our company is dedicated to providing our customers with products such as extenders, shuttle machines, P7100 extenders, mixed weft, and Sulzer textile accessories.
