Huixian Xinda Textile Machinery Accessories Co., Ltd. provides textile reeds. Carbon steel reeds of looms have shuttle reed hardware accessories. Textile Reed Piece Loom Reed Tooth Parts, The reeds of looms can be divided into carbon steel and stainless steel. According to the different fabric materials, they can be divided into a variety of width and thickness specifications. They are textile hardware accessories. The surface of carbon steel reeds is black, and the surface of stainless steel reeds is silver white. The specific dimensions and specifications of textile reed, loom reed tooth, shuttle loom steel buckle, carbon steel shuttle reed hardware accessories cannot be changed in width and thickness, and the length can be cut according to requirements.

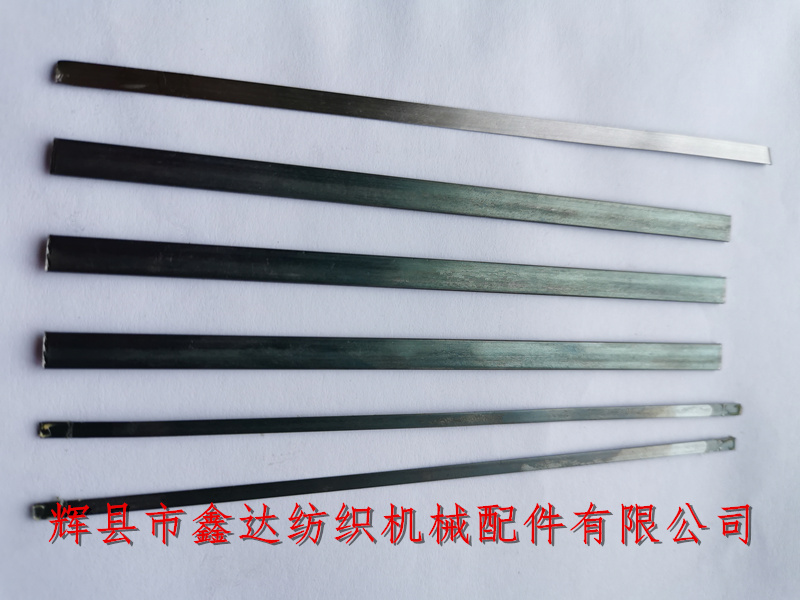

From top to bottom: the shiny ones are stainless steel reed teeth (specification: width: 3.6mm, thickness: 0.4mm), the three blue ones are reed pieces made of carbon steel (specification: width: 5.5mm, thickness: 1.1mm), and the narrower ones at the bottom of the picture are reed pieces made of carbon steel (size: width: 2.5mm, thickness: 0.3mm).
Reed pieces of special specifications are different from ordinary ones in processing technology. There are two kinds of arrangement methods: nylon wire and iron wire. The skeleton of the reed of the whole loom has two kinds: wood beam and aluminum beam. Reed pieces with a width of 2.5-2.7mm are commonly used (there are errors in material processing). They are widely used in reed of Cotton Looms.
The weight of textile reed (carbon steel material) with length of 12.5mm, width of 5.5mm and thickness of 1.1mm: the weight of each 1000 pieces is about 5.7 kg, please refer to this. If you need to purchase 1511 reed, 1515 reed teeth, textile reed, textile hardware and other loom accessories, please contact Mr.Yang of Xinda Textile machinery accessories company for details!
