Huixian Xinda Textile machinery accessories (formerly Xinxiang Xinda Textile accessories) is engaged in the sales of shuttle textile accessories B1/2 warp beam loom nodular iron accessories. There should be a gap of 0.8-1.6 mm between the height of loom warp bearing feet B1 and B2 and the upper part of back rail P5. The lower part of warp shaft bracket should be close to the outer edge of the wall panel, and the upper part should be close to the inner edge of the wall panel The position is not easy to change.
One warp shaft holder B1 and B2 are installed on both sides of the back of the loom. After installation, it is necessary to check the left and right levels of the two supports, and the allowable difference is 0.08/150 mm (the level is calibrated with the warp beam setting gauge).
The failure of let off device is the root of cloud weaving, warp shrinkage and other defects. As for let off self-locking, it is necessary to turn the crank shaft to the flat heald position near the upper center before inspection, loosen the screw on B10 of the B1 or B2 warp shaft support foot, turn up the lap up, pull back the weaving shaft slightly, so that the B7 disc tooth disengages from the let off shaft gear B6, and loosen the warp yarn on the weaving shaft by about 0.6 M.
The two people lift down the weaving shaft of the loom and move it about 0.5m to the inner side of the machine, and then push the warp yarn on the back beam C28 to the inner side of the machine with clean looping, so as to expose the warp let off side shaft and other parts.

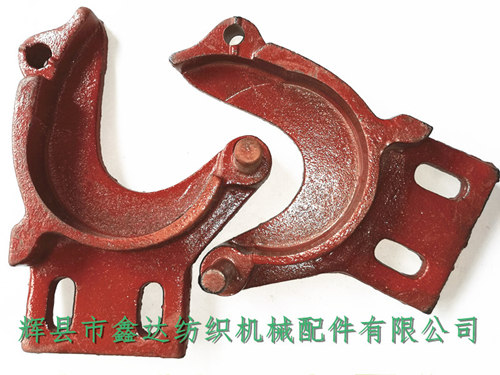

The single weight of warp beam bracket B1 and loom ductile iron B2 is 1.3KG, and the material is nodular iron QT. The overall length is 22.3cm, the width is 17cm, the thickness is 4.1cm, and the diameter of the inner hole of the lap screw is 13.5mm. If the textile enterprises need to purchase the ductile iron parts B1 and B2, please contact our company!
