Textile Hardware And Tools
TW11/PU Guide Tooth Steel Band 911223658
TW11/PU Guide Tooth Steel Band 911223658 time:2023-08-06 17:27:15 click:9728 keywords:Steel Band,Guide Tooth,PU Steel Band,Projectile Loom Parts
description:

Huixian Xinda Textile Machinery Parts Co., Ltd. provides TW11/PU projectile loom shuttle guide steel band (Narrow) 911223658. Sulzer projectile loom guide Tooth steel belt and shuttle guide tooth batten have a width of 18.4mm and a thickness of 0.4mm. The inner length of the side oval hole is 11mm, the height is 5mm, and the center spacing between adjacent holes is 19mm (Adjacent is 8mm). The steel belt of the shuttle machine is mainly used to fix the front and back of the guide teeth, ensuring that the shuttle track meets the normal movement of the shuttle.

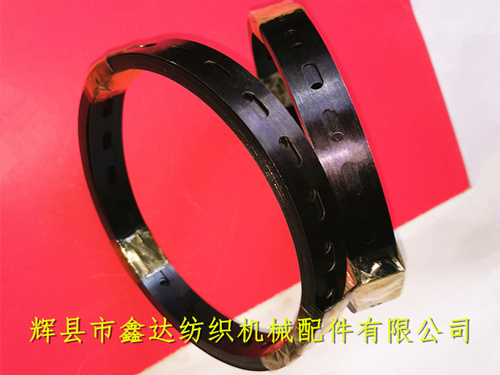

P7100 shuttle machine accessory guide tooth steel belt_Lower Steel Band pressing strip_ Textile hardware components

There are various models and specifications of guide shuttle toothed steel band based on the width of the machine door, generally divided into wide steel belts and narrow steel belts. The corresponding part numbers for narrow steel belts are: 911 223 664 (110"), 911 223 656 (130"), 911 323 283 (143"), 911 123 732 (D2 type), 911 232 211 (73"), 911 223 652 (85"), 911 223 658 (153"), and 911 123 570 (213"). The specific structural diagram is shown in Figure 15 #:

Textile accessories_ Guide shuttle tooth pressing strip_ Sulzer accessories

The English name for the 911223658 guide hook tooth steel strip is: Lower Steel Band, with a 153 inch steel strip length of approximately 3930mm; The corresponding part numbers for the wide steel strip are: 911 123 663 (85"), 911123665 (110"), 911123669 (153"), 911123308 (213"), 911323212 (73"), 911123667 (130"), 911323284 (143"). Please refer to Figure 18 for details#:

the steel strip for the guide hook teeth of the slide hook_ TW11 guide tooth pressure strip_ Textile machine accessories

Sulzer shuttle steel strip, guide tooth pressure strip with 153" (390 type) narrowband, with a single weight of 266 grams, a minimum order quantity of 5 products, and a lead time of approximately 5-8 days.

Shuttle Loom Accessories_153 guide hook tooth steel belt D1_ 390 Gripper Loom Spare Parts

Each type of steel strip has its corresponding accurate part number. If you need to purchase P7100 shuttle machine steel band, D2 guide shuttle tooth steel clamping band, TW11 steel strip, PU guide shuttle tooth steel strip, and other products, please contact Mr. Yang of our company for consultation. Welcome everyone to visit!
