Our company provides Sulzer accessories 911411156 for P7100 gripper machine coiling and pressing feet(Safety Catch Lever), with the English product name Safety Catch Leveler. The detailed parameters of the gripper accessories - rolling and pressing feet (911 411 156) are as follows: the total length is 210mm, the upper width is 82mm, the lower width is 114.4mm, the total thickness is 30.6mm, the middle net surface thickness is 6mm, the inner diameter of the shaft hole is 18.5mm, the diameter of the outer inner ring is 27mm, and the diameter of the outer ring is 47.6mm; The front of the upper part of the coiling presser foot is rectangular, with a size of 30.4mm * 16.4mm.

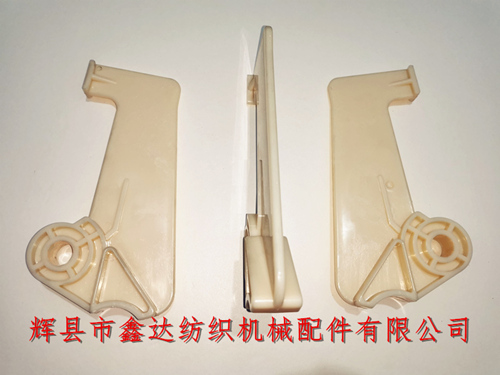

The P7100 coiling presser foot does not have a straight head above it, as shown in the above figure. The presser foot has added multiple reinforcing ribs to ensure its long service life; There are triangular supports on both sides of the rear of the presser foot 911411156, each with a depth of 12mm, Gripper Loom Part,Safety Catch Lever,P7100 Parts.
The above picture is a side view of the P7100 presser foot. The weight of a single winding presser foot is 135 grams, and the product is not divided into left and right hands. It is installed on the winding shaft of the gripper loom and belongs to the winding device of the loom, near the wall panel of the loom.
Regarding the packaging of P7100 Sulzer machine accessories - coiling presser feet (Safety Catch Lever), it is a transparent bag with 5 pieces per bag, a minimum order quantity of 5 pieces, and a delivery time of approximately 5-8 days. If you need to purchase Sulzer shuttle machine accessories, coiling pressure feet, Sulzer accessories, P7100 accessories, loom support feet and other products, please contact Mr. Yang of our company. Welcome to visit!
