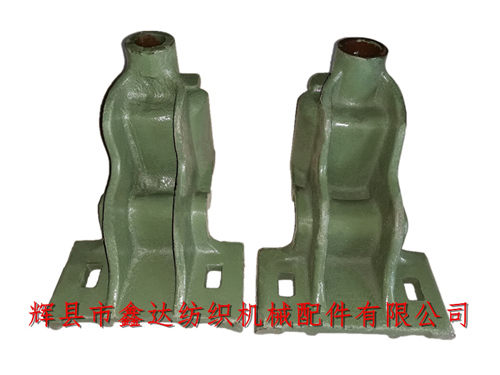

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides 1511 old-fashioned weaving machine accessories. The warp let off supporting foot B4, the supporting foot of the weaving machine, and the supporting foot behind the B4 warp let off side shaft look like a gun rack. The material is HT15-33. The inner hole diameter of the supporting foot of the loom is 28mm, the overall width is 15.5cm, the length is 18.5cm, the height is 17.1cm, and the weight of a single supporting foot is 3.5kg, which is installed on the rear beam P5 of the loom, It is the main part of the let off accessories in the weaving machine.
The supporting foot B4H of textile machine is not divided into left hand and right hand. It is suitable for small weaving machines of model 1511. Each loom uses one supporting foot. The two screw holes on the side are M6 (as shown in the figure above), and the upper screw hole (next to the oil filling hole) is M8 (as shown in the figure below).
Xinda Textile accessories is a company specializing in the sales of spare parts of old shuttle weaving machines. We have been engaged in the sales of textile accessories for many years. We provide loom parts of traditional 1511 with various door widths. Special specifications can be customized according to customer requirements. We insist on stabilizing the product quality, and the product design is corrected in combination with the use effect in actual production.
The semicircular position of the supporting foot of B4 weaving machine is to install B5 let off worm gear with an outer width of 86.5mm. The two screw holes on the side are used to fix the cover of b78s let off bevel gear. B4 is the supporting foot of an old 44 weaving machine. It is necessary to correct the level during installation to prevent the worm gear from meshing with the worm in place.
If textile mills and cloth manufacturers need to purchase Xinda weaving machine accessories, 1511 textile machine let off feet, weaving machine feet and other products, please contact Mr. Yang of our company.
